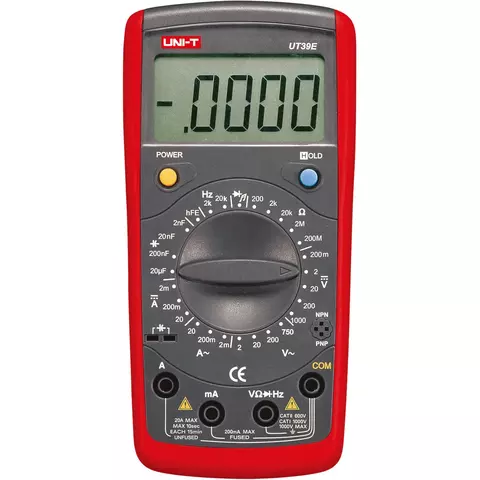

Digital Multimeter UNI-T UT39E

id: 819443
Digital Multimeter UNI-T UT39E
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
Discontinued
Find substitute
Overview
0.55 kg Warranty: 24 months
A digital multimeter for AC/DC current and voltage, resistance, capacitance, frequency measurements, and diode, continuity and transistor tests.
Discontinued
Find substitute
Compare
Compare
Discontinued
Find substitute
Impossible to estimate the shipping cost

You may also like

Digital Multimeter UNI T UT39E+
Bestseller
Add to wishlist
Digital Multimeter UNI-T UT39E+
USD 28.19
Add to wishlist
Add to cart
True RMS multimeter for measuring AC/DC current, AC/DC voltage, resistance, capacitance, frequency, temperature, conductance, continuity, and for diode and transistor testing.
Bestseller
Availability in stock: HK
Shipping cost
ID: 898459 1 kg
Digital Multimeter UNI T UT58E
Bestseller
Add to wishlist
Digital Multimeter UNI-T UT58E
USD 53.62
Add to wishlist
Add to cart
A digital multimeter for AC/DC current and voltage, resistance, capacitance, frequency, temperature measurements, and diode, continuity and transistor tests.
Bestseller
Availability in stock: HK
Shipping cost
ID: 819446 0.67 kg
Digital Multimeter UNI T UT61E+
Bestseller
Add to wishlist
Digital Multimeter UNI-T UT61E+
USD 81.38
Add to wishlist
Add to cart
Measures AC/DC voltage, AC/DC current, DC+AC voltage, resistance, capacitance, frequency, duty ratio, continuity, transistor hFE, and may be used for diode testing.
Bestseller
Availability in stock: HK
Shipping cost
ID: 898461 1 kg
Description

This digital multimeter measures AC/DC current and voltage, resistance, capacitance, frequency, and tests diodes, continuity and transistors.

UNI-T UT39E Digital Multimeter Manual

Download UNI-T UT39E Digital Multimeter User Manual (English version)

UNI-T UT39E Digital Multimeter Features

  • Functions:
    • AC/DC current and voltage
    • resistance
    • capacitance
    • frequency
    • continuity test (with buzzer)
    • diode test
    • transistor test
  • Data Hold function
  • Manual ranging
  • Sleep mode
  • Low battery indication

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

UNI-T UT39C and UT39E Digital Multimeter Comparative Specifications

Model UT39C UT39E
Display LCD 63 × 32, max. 1999 LCD 61 × 32, max. 19999
DC voltage, V 200mV/2V/20V/200V/1000V
±(0.5%+1)
200mV/2V/20V/200V/1000V
±(0.05%+3)
AC voltage, V 2V/20V/200V/750V
±(0.8%+3)
2V/20V/200V/750V
±(0.5%+10)
DC current, A 2mA/200mA/20A
±(0.8%+1)
2mA/200mA/20A
±(0.5%+5)
AC current, A 2mA/200mA/20A
±(1%+3)
2mA/200mA/20A
±(0.8%+5)
Resistance, Ω 200Ω/2kΩ/20kΩ/2MΩ/20MΩ
±(0.8%+10)
200Ω/2kΩ/20kΩ/2MΩ/20MΩ
±(0.3%+1)
Capacitance, F 2nF/200nF/2µF/20µF
±(4%+3)
2nF/20nF/200nF/20µF
±(4%+3)
Frequency, Hz 2kHz/20kHz
±(1.5%+5)
Temperature, ºC -40ºC ~ 1000ºC
±(2%+8)
-
Sampling rate 2-3x/s
Power 9V battery: NEDA 1604, 6F22 or 006P
Dimensions, (H × W × D) mm 172 × 83 × 38
Weight, g kg 310

UNI-T UT39E Digital Multimeter Package Contents

  • Multimeter UT39E
  • Test lead
  • User manual

Note! Batteries are not included in the package.

Read more
Description

This digital multimeter measures AC/DC current and voltage, resistance, capacitance, frequency, and tests diodes, continuity and transistors.

UNI-T UT39E Digital Multimeter Manual

Download UNI-T UT39E Digital Multimeter User Manual (English version)

UNI-T UT39E Digital Multimeter Features

  • Functions:
    • AC/DC current and voltage
    • resistance
    • capacitance
    • frequency
    • continuity test (with buzzer)
    • diode test
    • transistor test
  • Data Hold function
  • Manual ranging
  • Sleep mode
  • Low battery indication

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

UNI-T UT39C and UT39E Digital Multimeter Comparative Specifications

Model UT39C UT39E
Display LCD 63 × 32, max. 1999 LCD 61 × 32, max. 19999
DC voltage, V 200mV/2V/20V/200V/1000V
±(0.5%+1)
200mV/2V/20V/200V/1000V
±(0.05%+3)
AC voltage, V 2V/20V/200V/750V
±(0.8%+3)
2V/20V/200V/750V
±(0.5%+10)
DC current, A 2mA/200mA/20A
±(0.8%+1)
2mA/200mA/20A
±(0.5%+5)
AC current, A 2mA/200mA/20A
±(1%+3)
2mA/200mA/20A
±(0.8%+5)
Resistance, Ω 200Ω/2kΩ/20kΩ/2MΩ/20MΩ
±(0.8%+10)
200Ω/2kΩ/20kΩ/2MΩ/20MΩ
±(0.3%+1)
Capacitance, F 2nF/200nF/2µF/20µF
±(4%+3)
2nF/20nF/200nF/20µF
±(4%+3)
Frequency, Hz 2kHz/20kHz
±(1.5%+5)
Temperature, ºC -40ºC ~ 1000ºC
±(2%+8)
-
Sampling rate 2-3x/s
Power 9V battery: NEDA 1604, 6F22 or 006P
Dimensions, (H × W × D) mm 172 × 83 × 38
Weight, g kg 310

UNI-T UT39E Digital Multimeter Package Contents

  • Multimeter UT39E
  • Test lead
  • User manual

Note! Batteries are not included in the package.

Specifications
Type
  • digital
Measured Values
  • DC voltage
  • AC voltage
  • AC
  • DC
  • resistance
  • capacitance
  • frequency
Additional Functions
  • data hold
  • automatic shutdown/sleep mode
  • diode test
Range Selection
  • manual range
Digit Capacity
  • 19 999
DC Voltage
  • up to 1000 V
AC Voltage
  • up to 750 V
Resistance
  • up to 20 MOhm
Capacitance
  • up to 20 μF
Frequency
  • up to 20 kHz
DC
  • up to 20 A
AC
  • up to 20 A
Inductance
  • no
Temperature
  • no
Power
  • no
Duty cycle
  • no
True RMS
  • no
Backlight
  • no
PC connection
  • no connection to PC
Diode test
  • yes
Analog bar graph
  • no
Transistor check
  • yes
Continuity test
  • yes
NCV
  • no
Battery Testing
  • no
