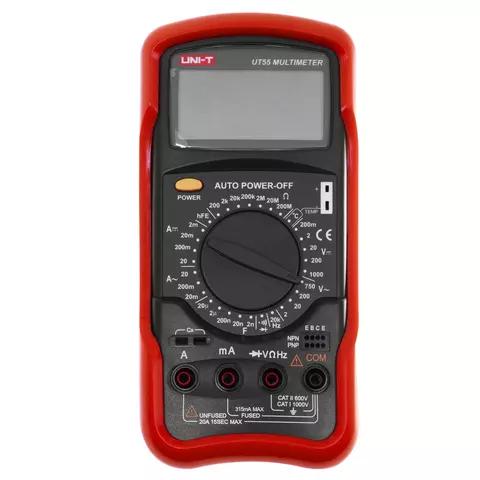

Digital Multimeter UNI-T UT55

id: 834629
Digital Multimeter UNI-T UT55
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
USD 31.14
Add to cart
Overview
Bestseller
5 (1)
Rate product
0.82 kg
Availability in stock: HK
Warranty: 24 months
Digital multimeter for measuring AC/DC voltage, AC/DC current, resistance, capacitance, frequency, temperature, as well as diode, transistor and continuity tests. Read more
USD 31.14
Add to cart
Add to wishlist
Compare
Compare
USD 31.14
Add to cart
Impossible to estimate the shipping cost

You may also like

Digital Multimeter UNI T UT890C
Bestseller
Add to wishlist
ID: 893958
Digital Multimeter UNI-T UT890C
5 (3)
USD 17.60
Add to wishlist
Add to cart
True RMS multimeter for measuring AC/DC voltage & current, resistance, frequency, capacitance, temperature, and performing hFE, diode, continuity tests.
Availability in stock: HK
Shipping cost
ID: 893958 0.5 kg

Frequently bought together

Tweezers Measuring Probe UNI T UT L01
Add to wishlist
ID: 834649
Tweezers Measuring Probe UNI-T UT-L01
USD 3.92
Add to wishlist
Add to cart
Tweezers-type measuring probe for SMD component measuring with UNI-T measuring equipment.
Availability in stock: HK
Shipping cost
ID: 834649 0.061 kg
Description

UNI-T UT55 Digital Multimeter is a high-quality multifunction digital multimeter. This convenient portable device is powered from a 9 V battery. UNI-T UT55 is characterized by multiple measurements (voltage, current, resistance, capacitance, frequency, temperature) and tests (diode, transistor, continuity) and auto power-off function.

Features

  • Compact and lightweight pocket-size device.
  • LCD display.
  • Auto power-off function.
  • Multiple measurements:
    • AC Voltage.
    • DC Voltage.
    • AC Current.
    • DC Current.
    • Resistance.
    • Capacitance.
    • Frequency.
    • Temperature.
    • Diode testing.
    • Continuity test.
  • Sleep mode.
  • Continuity buzzer.
  • Battery power.
  • Easy to connect and operate.
  • Electrical safety: EN61010-1, CATII600V/CATI1000V.

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

User Manual

Download UNI-T UT55 Digital Multimeter User Manual.

Technical Specifications

Function Range Accuracy
DC Voltage 200 mV/2 V/20 V/200 V/1000 V ±(0.5%+1)
AC Voltage 2 V/20 V/200 V/750 V ±(0.8%+3)
DC Current 2 mA/20 mA/200 mA/20 A ±(0.8%+1)
AC Current 20 mA/200 mA/20 A ±(1%+3)
Resistance 200 Ω/2 kΩ/20 kΩ/200 kΩ/2 MΩ/20 MΩ/200 MΩ ±(0.8%+1)
Capacitance 2 nF/20 nF/200 nF/2 μF/20 μF ±(4%+3)
Frequency 20 kHz ±(1.5%+5)
Temperature –20°C to 1000°C ±(1%+3)
Imput Impedance for DC Voltage Measurement 10 MΩ
General Characteristics
Power 9V Battery (6F22)
Display LCD, 33 × 65 mm
Size 190 × 88 × 34 mm / 7.48 × 3.46 × 1.34 in
Weight 580 g

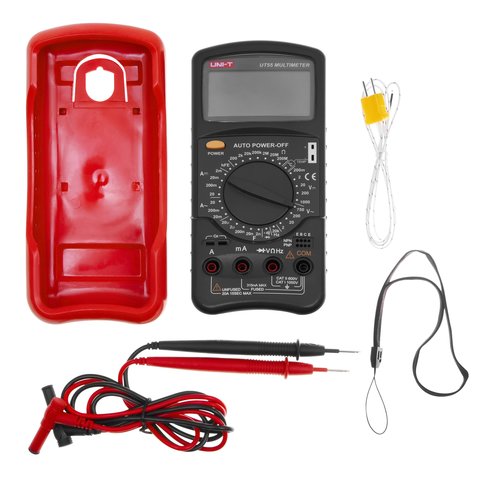

Package Contents

  • UNI-T UT55 Digital Multimeter Unit (1 pc.)
  • Test leads (2 pcs.)
  • Temperature probe (1 pc.)
  • Holster (1 pc.)
  • User manual (1 pc.)

Note! Batteries are not included in the package.

Specifications
Type
  • digital
Range Selection
  • manual range
Digit Capacity
  • 1999
DC Voltage
  • up to 1000 V
AC Voltage
  • up to 750 V
Resistance
  • up to 200 MOhm
Capacitance
  • up to 20 μF
Frequency
  • up to 20 kHz
DC
  • up to 20 A
AC
  • up to 20 A
Inductance
  • no
Temperature
  • yes
Power
  • no
Duty cycle
  • no
True RMS
  • no
Backlight
  • no
PC connection
  • no connection to PC
Diode test
  • yes
Analog bar graph
  • no
Transistor check
  • yes
Continuity test
  • yes
NCV
  • no
Battery Testing
  • no
