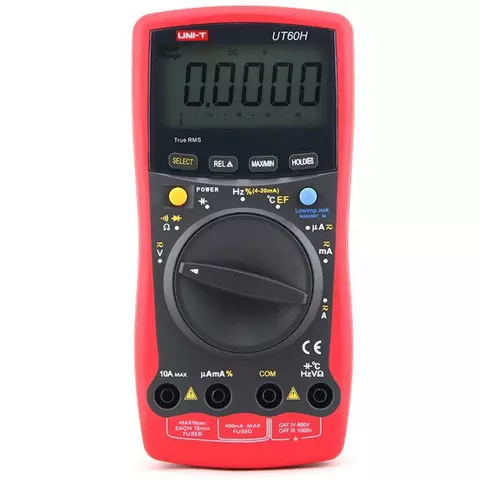

Digital Multimeter UNI-T UT60H

id: 819448
0.65 kg Warranty: 24 month (s)
A digital multimeter for AC/DC current and voltage, resistance, capacitance, frequency, temperature measurements, for continuity and diode tests.
Discontinued
Find substitute
Discontinued
Find substitute
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Substitution
Video
Delivery
Payment
Warranty
Overview

UNI-T UT60H digital multimeter measures AC/DC current and voltage, resistance, capacitance, frequency, temperature, tests continuity and diodes.

Please note that the standard temperature probe from the multimeter package contents allows measuring temperature up to 300 ºC. In case you require measuring temperatures above that value, please, buy Uni-T UT-T03 Temperature Probe.

Features

  • Functions:
    • AC/DC current and voltage
    • resistance
    • capacitance
    • frequency
    • temperature
    • continuity test (with buzzer)
    • diode test
    • 4-20mA loop
  • Fused 10A range
  • True AC RMS measurements
  • Relative reference measurements
  • Max/Min measurements
  • Data hold function
  • Autoranging
  • Low battery indication
  • Sleep mode

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Technical Specifications

Display LCD with analogue bargraph, 63 × 31 mm
Max. 3999: AC Voltage and Current, Diode and Continuity Buzzer
Max. 39999: DC Voltage and Current, Resistance, Capacitance, Frequency, EF Function and 4-20mA Loop
DC voltage, V Range 4V/40V/400V/1000V
Accuracy ±(0.1%+5)
AC voltage, V Range 4V/40V/400V/750V
Accuracy ±(1%+4)
DC current, A Range 400µA/4000µA/40mA/400mA/10A
Accuracy ±(0.5%+10)
AC current, A Range 400µA/4000µA/40mA/400mA/10A
Accuracy ±(1.2%+4)
Resistance, Ω Range 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ
Accuracy ±(0.5%+10)
Capacitance, F Range 40nF/400nF/4µF/40µF/400µF/4mF/40mF
Accuracy ±(1.5%+20)
Frequency, Hz Range 4kHz/40kHz/400kHz/4MHz/40MHz/400MHz
Accuracy ±(1.5%+20)
Temperature, ºC Range -40ºC ~ 400ºC
Accuracy ±(1.5%+20)
Sampling rate 2-3x/s
Power 9V battery: NEDA 1604, 6F22 or 006P
Dimensions (H × W × D), mm 177 × 85 × 40
Weight, g 320

Manual

Download UNI-T UT60H Digital Multimeter User Manual (English version)

Package Contents

  • Multimeter UNI-T UT60H
  • Point contact temperature probe
  • Test lead
  • Battery
  • Manual

Optional Accessories

Specifications
Type
  • digital
Measured Values
  • DC voltage
  • AC voltage
  • AC
  • DC
  • resistance
  • capacitance
  • frequency
  • temperature
Additional Functions
  • acoustic continuity test
  • data hold
  • automatic shutdown/sleep mode
  • mnemonic
  • max / min
  • RMS measurement
  • relative measurements
  • diode test
Range Selection
  • auto range
Digit Capacity
  • 39 999
DC Voltage
  • up to 1000 V
AC Voltage
  • up to 750 V
Resistance
  • up to 40 MOhm
Capacitance
  • up to 40 000 μF
Frequency
  • up to 400 MHz
DC
  • up to 10 A
AC
  • up to 10 A
Inductance
  • no
Temperature
  • yes
Power
  • no
Duty cycle
  • no
True RMS
  • yes
Backlight
  • no
PC connection
  • no connection to PC
Diode test
  • yes
Analog bar graph
  • yes
Transistor check
  • no
Continuity test
  • yes
NCV
  • no
Battery Testing
  • no
