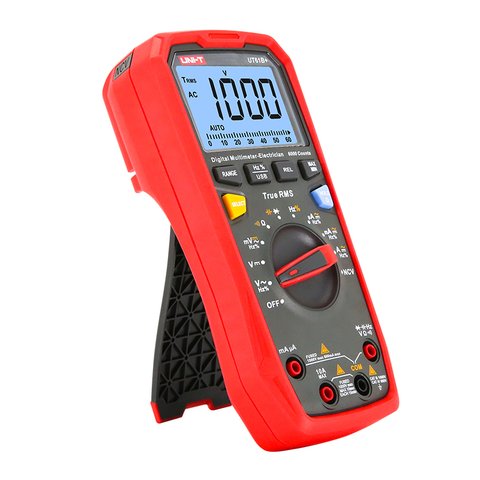

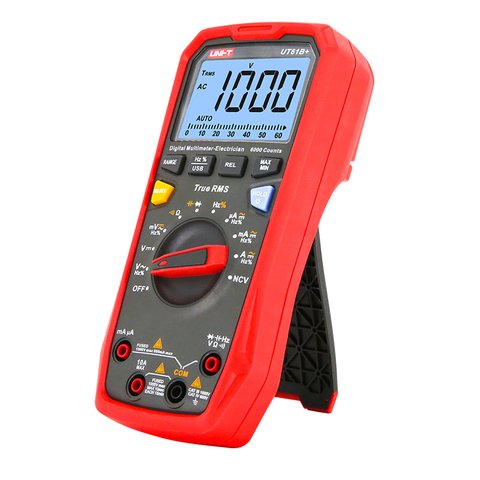

Digital Multimeter UNI-T UT61B+

id: 898457
Digital Multimeter UNI-T UT61B+
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 44.11
Add to cart
Overview
Rate product
0.8 kg
Availability in stock: HK
Warranty: 24 months
True RMS multimeter used to measure AC/DC voltage, AC/DC current, resistance, frequency, capacitance, duty cycle, and also to test diode and continuity. Read more
USD 44.11
Add to cart
Add to wishlist
Compare
Compare
USD 44.11
Add to cart
Impossible to estimate the shipping cost

Frequently bought together

Tweezers Measuring Probe UNI T UT L01
Add to wishlist
ID: 834649
Tweezers Measuring Probe UNI-T UT-L01
USD 3.92
Add to wishlist
Add to cart
Tweezers-type measuring probe for SMD component measuring with UNI-T measuring equipment.
Availability in stock: HK
Shipping cost
ID: 834649 0.061 kg
Description

UNI-T UT61B+ is a compact digital True RMS multimeter used to measure AC/DC voltage, AC/DC current, resistance, frequency, capacitance, duty cycle, and also to test diode and continuity. Equipped with audible and visible alarm, this multimeter provides warning expecially when measuring high voltage and current.

Features

  • True RMS.
  • NCV (audible/visual alarm).
  •  Data hold.
  • Display backlight.
  • Max/Min mode.
  • Relative measurements mode.
  • Auto/Manual ranging.
  • USB communication.
  • Input protection.
  • Diode/continuity test.
  • Auto power off.
  • Low battery indication.
  • Safety standard: CAT III 1000V/CAT IV 600V.

Technical Specifications

Function Range Accuracy
AC Voltage 1000 V ±(1%+3)
DC Voltage 1000 V ±(0.5%+3)
AC Current 10 A ±(1.2%+5)
DC Current 10 A ±(1%+2)
Resistance 60 MΩ ±(1%+2)
Capacitance 60 mF ±(3%+5)
Frequency 10 MHz ±(0.1%+4)
Duty cycle 0.1%~99.9% ±(2%+5)
General Specifications
Display Count 6000
Bandwidth 40 Hz~500 Hz
Analog Bar 31
Power battery 1.5V (R03) × 4 pcs.
Dimensions 190 mm × 90 mm × 50 mm
Weight 350 g

User Manual

PDF  Download UNI-T UT61B+ User Manual.

Package Contents

  • Digital Multimeter UNI-T UT61B+ — 1 pc.
  • User Manual — 1 pc.
  • Test Leads — 1 pair
  • Cable USB — 1 pc.
  • 1.5V AAA Batteries — 4 pc.
Specifications
Type
  • digital
Range Selection
  • auto range
Digit Capacity
  • 5999
DC Voltage
  • up to 1000 V
AC Voltage
  • up to 1000 V
Resistance
  • up to 60 MOhm
Frequency
  • up to 10 MHz
DC
  • up to 10 A
AC
  • up to 10 A
Inductance
  • no
Temperature
  • no
Power
  • no
Duty cycle
  • no
True RMS
  • yes
Backlight
  • yes
PC connection
  • USB
Diode test
  • yes
Analog bar graph
  • yes
Transistor check
  • no
Capacitance
  • up to 60 000 μF
Continuity test
  • yes
NCV
  • yes
Battery Testing
  • no
