Overview
0.75 kg Warranty: 24 months
Digital multimeter for measuring AC/DC voltage, AC/DC current, resistance, capacitance, frequency, temperature, as well as diode and continuity tests.
Discontinued
Find substitute
Compare
Compare
Discontinued
Find substitute
Impossible to estimate the shipping cost

You may also like

Digital Multimeter UNI T UT61D+
Bestseller
Add to wishlist
Digital Multimeter UNI-T UT61D+
USD 50.86
Add to wishlist
Add to cart
Measures AC/DC voltage, AC/DC current, resistance, capacitance, frequency, temperature, duty ration, and is also used for continuity and diode testing.
Bestseller
Availability in stock: HK
Shipping cost
ID: 898460 0.8 kg
Digital Multimeter UNI T UT139C
Bestseller
Add to wishlist
Digital Multimeter UNI-T UT139C
USD 39.21
Add to wishlist
Add to cart
True RMS digital multimeter which measures AC/DC voltage, AC/DC current, resistance, capacitance, frequency, temperature and can be used for continuity and diode tests.
Bestseller
Availability in stock: HK
Shipping cost
ID: 844702 0.55 kg
Digital Multimeter UNI T UT17B PRO
Bestseller
Add to wishlist
Digital Multimeter UNI-T UT17B PRO
USD 75.24
Add to wishlist
Add to cart
Highly reliable True RMS multimeter measures AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle, temperature, continuity, and performs diode testing.
Bestseller
Availability in stock: HK
Shipping cost
ID: 898474 1 kg
Description

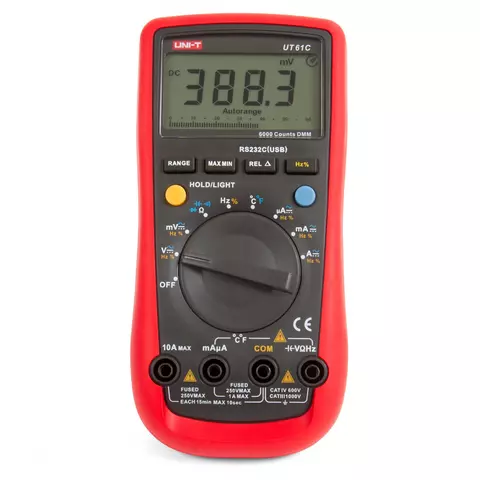

UNI-T UT61C Digital Multimeter is a high-quality multifunction pocket digital multimeter. This convenient portable device is powered from a 9 V battery. UNI-T UT61C is characterized by multiple measurements (voltage, current, resistance, capacitance, frequency, temperature) and tests (diode, continuity) and auto power-off function, analog bar graph, data hold function.

UNI-T UT61C Digital Multimeter Features

  • Compact and lightweight pocket-size device.
  • LCD display with backlight.
  • Auto power-off function.
  • Data hold function.
  • Analog bar graph.
  • Auto/manual ranging.
  • Max/Min mode.
  • Relative measurements mode (REL).
  • Multiple measurements:
    • AC Voltage.
    • DC Voltage.
    • AC Current.
    • DC Current.
    • Resistance.
    • Capacitance.
    • Frequency.
    • Temperature.
    • Diode testing.
    • Continuity test.
  • Sleep mode.
  • Continuity buzzer.
  • Battery power.
  • Interface: RS232, USB.
  • Tilt back stand.
  • Easy to connect and operate.
  • Electrical safety: EN61010-1, CATII600V/CATI1000V.

Video

Read more
Description

UNI-T UT61C Digital Multimeter is a high-quality multifunction pocket digital multimeter. This convenient portable device is powered from a 9 V battery. UNI-T UT61C is characterized by multiple measurements (voltage, current, resistance, capacitance, frequency, temperature) and tests (diode, continuity) and auto power-off function, analog bar graph, data hold function.

UNI-T UT61C Digital Multimeter Features

  • Compact and lightweight pocket-size device.
  • LCD display with backlight.
  • Auto power-off function.
  • Data hold function.
  • Analog bar graph.
  • Auto/manual ranging.
  • Max/Min mode.
  • Relative measurements mode (REL).
  • Multiple measurements:
    • AC Voltage.
    • DC Voltage.
    • AC Current.
    • DC Current.
    • Resistance.
    • Capacitance.
    • Frequency.
    • Temperature.
    • Diode testing.
    • Continuity test.
  • Sleep mode.
  • Continuity buzzer.
  • Battery power.
  • Interface: RS232, USB.
  • Tilt back stand.
  • Easy to connect and operate.
  • Electrical safety: EN61010-1, CATII600V/CATI1000V.

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

UNI-T UT61C Digital Multimeter Technical Specifications

Function Range Accuracy
DC Voltage 60 mV/600 mV/6 V/60 V/600 V/1000 V ±(0.5%+1)
AC Voltage 60 mV/600 mV/6 V/60 V/600 V/750 V ±(1.0%+3)
DC Current 600 mA/6000 mA/60 mA/600 mA/6 A/10 A ±(1.0%+3)
AC Current 600 mA/6000 mA/60 mA/600 mA/6 A/10 A ±(1.2%+5)
Resistance 600 Ω/6 kΩ/60 kΩ/600 kΩ/6 MΩ/60 MΩ ±(1.0%+2)
Capacitance 40 nF/400 nF/4 μF/40 μF/400 μF/4000 μF ±(3.0%+5)
Frequency 10 Hz - 10 MHz ±(0.1%+4)
Frequency Response 45 Hz ~ 1 kHz
Temperature –20°C ~ 1000°C
-40°F ~ 1832°F
±(1.2%+3)
±(1.2%+4)
Duty Cycle 0.1% ~ 99.9%
Imput Impedance for DC Voltage Measurement ~ 10 MΩ
General Characteristics
Power 9 V Battery (6F22)
Display LCD, 43 × 65 mm
Size 180 × 87 × 47 mm
Weight 370 g

UNI-T UT61C Digital Multimeter User Manual

Download UNI-T UT61C Digital Multimeter User Manual.

UNI-T UT61C Digital Multimeter Sofware

Download UNI-T UT61C Digital Multimeter Sofware.

UNI-T UT61C Digital Multimeter Package Contents

  • UNI-T UT61C Digital Multimeter Unit (1 pc.)
  • Test leads (2 pcs.)
  • K-type temperature probe (1 pc.)
  • Multi-purpose socket (1 pc.)
  • USB Cable (1 pc.)
  • User manual (1 pc.)

Note! Batteries are not included in the package.

Specifications
Type
  • digital
Measured Values
  • DC voltage
  • AC voltage
  • AC
  • DC
  • resistance
  • capacitance
  • frequency
  • porosity
  • temperature
Additional Functions
  • acoustic continuity test
  • data hold
  • connection to PC (RS232)
  • automatic shutdown/sleep mode
  • mnemonic
  • max / min
  • diode test
Range Selection
  • auto range
Digit Capacity
  • 5999
DC Voltage
  • up to 1000 V
AC Voltage
  • up to 750 V
Resistance
  • up to 60 MOhm
Capacitance
  • up to 4000 μF
Frequency
  • up to 10 MHz
DC
  • up to 10 A
AC
  • up to 10 A
Inductance
  • no
Temperature
  • yes
Power
  • no
Duty cycle
  • yes
True RMS
  • no
Backlight
  • yes
PC connection
  • RS232
Diode test
  • yes
Analog bar graph
  • yes
Transistor check
  • no
Continuity test
  • yes
NCV
  • no
Battery Testing
  • no
