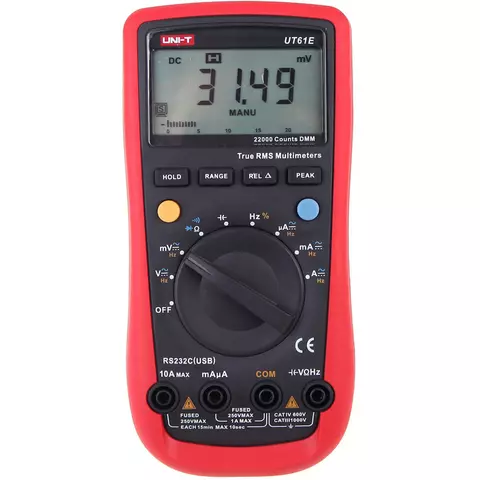

Digital Multimeter UNI-T UT61E

id: 834631
Digital Multimeter UNI-T UT61E
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
Discontinued
Find substitute
Overview
0.7 kg Warranty: 24 months
Digital multimeter for measuring AC/DC voltage, AC/DC current, resistance, capacitance, frequency, as well as diode and continuity tests.
Discontinued
Find substitute
Compare
Compare
Discontinued
Find substitute
Impossible to estimate the shipping cost

You may also like

Digital Multimeter UNI T UT61E+
Bestseller
Add to wishlist
Digital Multimeter UNI-T UT61E+
USD 81.38
Add to wishlist
Add to cart
Measures AC/DC voltage, AC/DC current, DC+AC voltage, resistance, capacitance, frequency, duty ratio, continuity, transistor hFE, and may be used for diode testing.
Bestseller
Availability in stock: HK
Shipping cost
ID: 898461 1 kg
Digital Multimeter UNI T UT71A
Bestseller
Add to wishlist
Digital Multimeter UNI-T UT71A
USD 112.96
Add to wishlist
Add to cart
Digital multimeter for measuring AC/DC voltage, AC/DC current, resistance, capacitance, frequency, as well as diode and continuity tests. Data hold, peak hold, auto ranging, relative measurements.
Bestseller
Availability in stock: HK
Shipping cost
ID: 834632 0.95 kg
Digital Multimeter UNI T UT39E+
Bestseller
Add to wishlist
Digital Multimeter UNI-T UT39E+
USD 28.19
Add to wishlist
Add to cart
True RMS multimeter for measuring AC/DC current, AC/DC voltage, resistance, capacitance, frequency, temperature, conductance, continuity, and for diode and transistor testing.
Bestseller
Availability in stock: HK
Shipping cost
ID: 898459 1 kg
Description

UNI-T UT61E Digital Multimeter is a high-quality multifunction digital multimeter. This convenient portable device is powered from a 9 V battery. UNI-T UT61E is characterized by multiple measurements (voltage, current, resistance, capacitance, frequency) and tests (diode, continuity) and analog bar graph, data hold function.

Features

  • LCD display.
  • Data hold function.
  • Analog bar graph.
  • Auto/manual ranging.
  • Relative measurements mode (REL).
  • Multiple measurements:
    • AC voltage.
    • DC voltage.
    • AC current.
    • DC current.
    • Resistance.
    • Capacitance.
    • Frequency.
    • Diode testing.
    • Continuity test.
  • Continuity buzzer.
  • Battery power.
  • Interface: RS232, USB.
  • Easy to connect and operate.
  • Electrical safety: EN61010-1, CATII600V/CATI1000V.

Video

Read more
Description

UNI-T UT61E Digital Multimeter is a high-quality multifunction digital multimeter. This convenient portable device is powered from a 9 V battery. UNI-T UT61E is characterized by multiple measurements (voltage, current, resistance, capacitance, frequency) and tests (diode, continuity) and analog bar graph, data hold function.

Features

  • LCD display.
  • Data hold function.
  • Analog bar graph.
  • Auto/manual ranging.
  • Relative measurements mode (REL).
  • Multiple measurements:
    • AC voltage.
    • DC voltage.
    • AC current.
    • DC current.
    • Resistance.
    • Capacitance.
    • Frequency.
    • Diode testing.
    • Continuity test.
  • Continuity buzzer.
  • Battery power.
  • Interface: RS232, USB.
  • Easy to connect and operate.
  • Electrical safety: EN61010-1, CATII600V/CATI1000V.

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Technical Specifications

Function Range Accuracy
DC Voltage 220 mV/2.2 V/22 V/220 V/1000 V ±(0.1%+2)
AC Voltage 220 mV/2.2 V/22 V/220 V/750 V ±(0.8%+10)
DC Current 220 mA/2200 mA/22 mA/220 mA/2.2 A/10 A ±(0.5%+10)
AC Current 220 mA/2200 mA/22 mA/220 mA/2.2 A/10 A ±(0.8%+10)
Resistance 220 Ω/2.2 kΩ/22 kΩ/220 kΩ/2.2 MΩ/22 MΩ/220 MΩ ±(0.5%+10)
Capacitance 22 nF/220 nF/2.2 µF/22 µF/220 µF/2.2 mF/22 mF/220 mF ±(3.0%+5)
Frequency 10 Hz – 220 MHz ±(0.01%+5)
Frequency Response 45 Hz ~ 10 kHz
Duty Cycle 0.1% ~ 99.9%
Imput Impedance for DC Voltage Measurement ~ 10 MΩ
General Characteristics
Power 9 V Battery (6F22)
Display LCD, 43 × 65 mm
Size 180 × 87 × 47 mm
Weight 370 g

User Manual

Download UNI-T UT61E Digital Multimeter User Manual.

Sofware

Download UNI-T UT61E Digital Multimeter Sofware.

Package Contents

  • UNI-T UT61E digital multimeter unit (1 pc.)
  • Test leads (2 pcs.)
  • Multi-purpose socket (1 pc.)
  • USB cable (1 pc.)
  • User manual (1 pc.)

Note! Batteries are not included in the package.

Specifications
Type
  • digital
Measured Values
  • DC voltage
  • AC voltage
  • AC
  • DC
  • resistance
  • capacitance
  • frequency
  • porosity
Additional Functions
  • acoustic continuity test
  • data hold
  • connection to PC (RS232)
  • mnemonic
  • max / min
  • RMS measurement
  • diode test
  • backlight
Range Selection
  • auto range
Digit Capacity
  • 22 000
DC Voltage
  • up to 1000 V
AC Voltage
  • up to 750 V
Resistance
  • up to 220 MOhm
Capacitance
  • up to 220 000 μF
Frequency
  • up to 220 MHz
DC
  • up to 10 A
AC
  • up to 10 A
Inductance
  • no
Temperature
  • no
Power
  • no
Duty cycle
  • yes
True RMS
  • yes
Backlight
  • yes
PC connection
  • RS232
Diode test
  • yes
Analog bar graph
  • yes
Transistor check
  • no
Continuity test
  • yes
NCV
  • no
Battery Testing
  • no
Video
Youtube video
Youtube video
