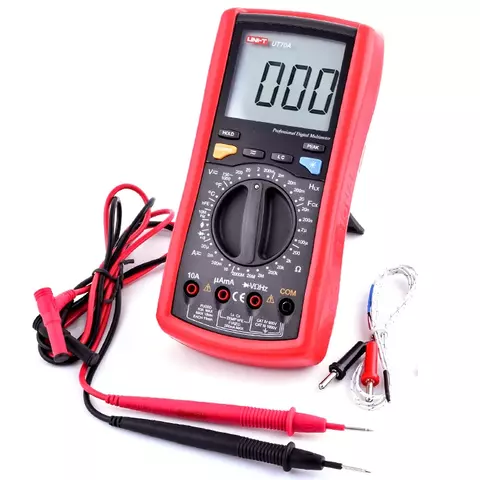

Digital Multimeter UNI-T UT70A

id: 819451
Digital Multimeter UNI-T UT70A
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
Discontinued
Find substitute
Overview
0.9 kg Warranty: 24 months
A digital multimeter for AC/DC current and voltage, resistance, capacitance, inductance, frequency, temperature measurements and diode, continuity, transistor and TTL logic tests.
Discontinued
Find substitute
Compare
Compare
Discontinued
Find substitute
Impossible to estimate the shipping cost

You may also like

Digital Multimeter UNI T UT58D
Bestseller
Add to wishlist
Digital Multimeter UNI-T UT58D
USD 31.37
Add to wishlist
Add to cart
A digital multimeter for AC/DC current and voltage, resistance, capacitance, inductance measurements, and diode, continuity and transistor tests.
Bestseller
Availability in stock: HK
Shipping cost
ID: 819445 0.67 kg
Digital Multimeter Accta AT 280
Bestseller
New
Add to wishlist
Digital Multimeter Accta AT-280
USD 27.00
Add to wishlist
Add to cart
True RMS multimeter that measures AC/DC current and voltage, resistance, inductance, conductance, capacitance, frequency, and temperature. May be used for diode and transistor testing.
Bestseller
New
Availability in stock: HK
Shipping cost
ID: 891572 0.714 kg
Description

This digital multimeter measures AC/DC current and voltage, resistance, capacitance, inductance, frequency, temperature and tests diodes, continuity, transistors and TTL logic.

Please note that the standard temperature probe from the multimeter package contents allows measuring temperature up to 300 ºC. In case you require measuring temperatures above that value, please, buy Uni-T UT-T03 Temperature Probe.

Features

  • Functions:
    • AC/DC current and voltage
    • resistance
    • capacitance
    • frequency
    • inductance
    • temperature (ºC or ºF)
    • continuity test (with buzzer)
    • diode test
    • transistor test
    • TTL logic test
  • Manual ranging
  • Fused 10A range
  • Data Hold function
  • Peak Hold function
  • Auto power off
  • Sleep mode
  • Low battery indication

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Technical Specifications

Display 3½ (1999) digit LCD with backlight, 62 × 53 mm
DC voltage Range 200mV/2V/20V/200V/1000V
Accuracy (0,5%+1)
AC voltage Range 200mV/2V/20V/200V/750V
Accuracy (0.8%+3)
DC current Range 20mA/2mA/200mA/10A
Accuracy (0.8%+1)
AC current Range 20mA/2mA/200mA/10A
Accuracy (1%+3)
Resistance Range 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/2000MΩ
Accuracy (0.8%+1)
Capacitance Range 20nF/200nF/2μF/100μF
Accuracy (2.5%+5)
Frequency Range 2kHz-10MHz (auto ranging)
Accuracy (0.1%+3)
Inductance Range 2mH/20mH/200mH/20H
Accuracy (2%+10)
Temperature, ºC Range -40~1000
Accuracy (1%+3);
Temperature, ºF Range -40~1832
Accuracy (1%+4);
Power 9V battery: NEDA 1604, 6F22 or 006P
Dimensions (H × W × D), mm 195 × 90 × 40
Weight, g 620

User Manuals

Package Contents

  • Multimeter UNI-T UT70A
  • Test lead
  • Point contact temperature probe
  • User manual

Note! Batteries are not included in the package.

Optional Accessories

Read more
Description

This digital multimeter measures AC/DC current and voltage, resistance, capacitance, inductance, frequency, temperature and tests diodes, continuity, transistors and TTL logic.

Please note that the standard temperature probe from the multimeter package contents allows measuring temperature up to 300 ºC. In case you require measuring temperatures above that value, please, buy Uni-T UT-T03 Temperature Probe.

Features

  • Functions:
    • AC/DC current and voltage
    • resistance
    • capacitance
    • frequency
    • inductance
    • temperature (ºC or ºF)
    • continuity test (with buzzer)
    • diode test
    • transistor test
    • TTL logic test
  • Manual ranging
  • Fused 10A range
  • Data Hold function
  • Peak Hold function
  • Auto power off
  • Sleep mode
  • Low battery indication

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Technical Specifications

Display 3½ (1999) digit LCD with backlight, 62 × 53 mm
DC voltage Range 200mV/2V/20V/200V/1000V
Accuracy (0,5%+1)
AC voltage Range 200mV/2V/20V/200V/750V
Accuracy (0.8%+3)
DC current Range 20mA/2mA/200mA/10A
Accuracy (0.8%+1)
AC current Range 20mA/2mA/200mA/10A
Accuracy (1%+3)
Resistance Range 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/2000MΩ
Accuracy (0.8%+1)
Capacitance Range 20nF/200nF/2μF/100μF
Accuracy (2.5%+5)
Frequency Range 2kHz-10MHz (auto ranging)
Accuracy (0.1%+3)
Inductance Range 2mH/20mH/200mH/20H
Accuracy (2%+10)
Temperature, ºC Range -40~1000
Accuracy (1%+3);
Temperature, ºF Range -40~1832
Accuracy (1%+4);
Power 9V battery: NEDA 1604, 6F22 or 006P
Dimensions (H × W × D), mm 195 × 90 × 40
Weight, g 620

User Manuals

Package Contents

  • Multimeter UNI-T UT70A
  • Test lead
  • Point contact temperature probe
  • User manual

Note! Batteries are not included in the package.

Optional Accessories

Specifications
Type
  • digital
Measured Values
  • DC voltage
  • AC voltage
  • AC
  • DC
  • resistance
  • capacitance
  • frequency
  • temperature
  • inductance
Additional Functions
  • acoustic continuity test
  • data hold
  • automatic shutdown/sleep mode
  • diode test
  • transistors test
  • backlight
  • peak hold
Range Selection
  • manual range
Digit Capacity
  • 1999
DC Voltage
  • up to 1000 V
AC Voltage
  • up to 750 V
Resistance
  • up to 2000 MOhm
Capacitance
  • up to 100 μF
Frequency
  • up to 10 MHz
DC
  • up to 10 A
AC
  • up to 10 A
Inductance
  • yes
Temperature
  • yes
Power
  • no
Duty cycle
  • no
True RMS
  • no
Backlight
  • yes
PC connection
  • no connection to PC
Diode test
  • yes
Analog bar graph
  • no
Transistor check
  • yes
Continuity test
  • yes
NCV
  • no
Battery Testing
  • no
