Measures AC/DC voltage, AC/DC current, resistance, capacitance, frequency, temperature, duty ration, and is also used for continuity and diode testing.
Availability in stock:
HK
ID: 898460 0.8 kg

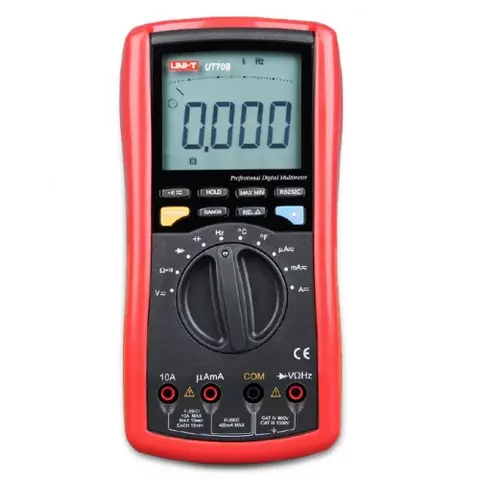

Digital Multimeter UNI-T UT70B
id: 845317
Digital Multimeter UNI-T UT70B
Overview
Description
Specifications
Delivery
Payment
Warranty
Discontinued
Overview
1 kg Warranty: 24 months
This digital multimeter measures AC/DC current and voltage, resistance, capacitance, inductance, frequency, temperature, tests diodes and continuity. Read more
Discontinued
You may also like
Description
This UNI-T UT70B digital multimeter measures AC/DC current and voltage, resistance, capacitance, frequency, temperature, tests diodes and continuity.
Please note that the standard temperature probe from the multimeter package contents allows measuring temperature up to 300 ºC. In case you require measuring temperatures above that value, please, buy Uni-T UT-T03 Temperature Probe.
Features
- Functions:
- AC/DC current and voltage
- resistance
- capacitance
- frequency
- temperature (ºC or ºF)
- continuity test (with buzzer)
- diode test
- Auto ranging
- Fused 10 A range
- Data Hold function
- Max/Min mode
- Relative mode
- Analogue bar graph
- Sleep mode
- Low battery indication
Video
You'll find even more video reviews in the Video tab. Go and check it out!
Technical Specifications
| Display | 3999 digit LCD, backlight, 62 × 53 mm | |
| DC voltage | Range | 400 mV / 4 V / 40 V / 400 V / 1000 V |
| Accuracy | ±(0.8%+1) | |
| AC voltage | Range | 4 V / 40 V / 400 V / 750 V |
| Accuracy | ±(1%+5) | |
| DC current | Range | 400 µA / 4000 µA / 40 A / 400 mA / 10 A |
| Accuracy | ±(1%+2) | |
| AC current | Range | 400 µA / 4000 µA / 40 A / 400 mA / 10 A |
| Accuracy | ±(1.5%+5) | |
| Resistance | Range | 400 Ω / 4 kΩ / 40 kΩ / 400 kΩ / 4 MΩ / 40 MΩ |
| Accuracy | ±(1%+2) | |
| Capacitance | Range | 4 nF / 40 nF / 400 nF / 4 µF / 40 µF / 400 µF / 4 mF / 40 mF |
| Accuracy | ±(4%+3) | |
| Frequency | Range | 4 kHz / 40 kHz / 400 KHz / 4 MHz / 40 MHz / 400 MHz |
| Accuracy | ±(0.1%+3) | |
| Temperature, ºC | Range | -40~1000 |
| Accuracy | ±(1%+30) | |
| Temperature, ºF | Range | -40~1832 |
| Accuracy | ±(1%+4) | |
| Power | 9 V battery: 6F22 | |
| Dimensions (H × W × D), mm | 195 × 90 × 40 | |
| Weight, g | 560 | |
User Manuals
Download UNI-T UT70B digital multimeter user manual
Sofware
Download UNI-T UT70B digital multimeter sofware.
Package Contents
- Multimeter UT70B
- Test lead
- Point contact temperature probe
- USB interface cable
- Battery
- User manual
Optional Accessories
Specifications
| Type |
|
| Range Selection |
|
| Digit Capacity |
|
| DC Voltage |
|
| AC Voltage |
|
| Resistance |
|
| Capacitance |
|
| Frequency |
|
| DC |
|
| AC |
|
| Inductance |
|
| Temperature |
|
| Power |
|
| Duty cycle |
|
| True RMS |
|
| Backlight |
|
| PC connection |
|
| Diode test |
|
| Analog bar graph |
|
| Transistor check |
|
| Continuity test |
|
| NCV |
|
| Battery Testing |
|
