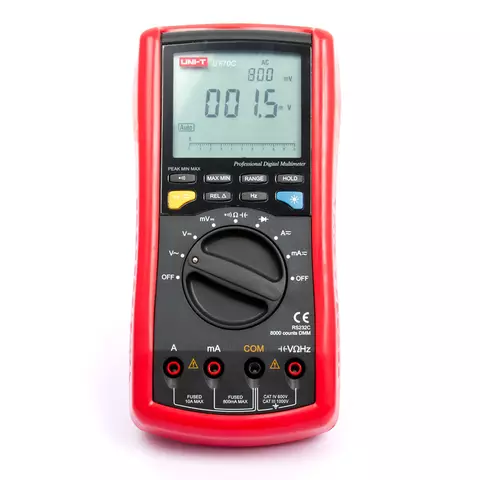

Digital Multimeter UNI-T UT70C

id: 822396
Digital Multimeter UNI-T UT70C
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
Discontinued
Find substitute
Overview
1.135 kg Warranty: 24 months
Digital multimeter which measures AC/DC voltage, AC/DC current, resistance, frequency, capacitance and can be used for continuity test.
Discontinued
Find substitute
Compare
Compare
Discontinued
Find substitute
Impossible to estimate the shipping cost

You may also like

Digital Multimeter UNI T UT61D+
Bestseller
Add to wishlist
Digital Multimeter UNI-T UT61D+
USD 50.86
Add to wishlist
Add to cart
Measures AC/DC voltage, AC/DC current, resistance, capacitance, frequency, temperature, duty ration, and is also used for continuity and diode testing.
Bestseller
Availability in stock: HK
Shipping cost
ID: 898460 0.8 kg
Digital Multimeter UNI T UT61B+
Bestseller
Add to wishlist
Digital Multimeter UNI-T UT61B+
USD 42.60
Add to wishlist
Add to cart
True RMS multimeter used to measure AC/DC voltage, AC/DC current, resistance, frequency, capacitance, duty cycle, and also to test diode and continuity.
Bestseller
Availability in stock: HK
Shipping cost
ID: 898457 0.8 kg
Description

This UNI-T UT70C digital multimeter is designed for measuring AC/DC current, AC/DC voltage, resistance, capacitance, frequency and can be used for continuity and diode tests.

Features

  • Measurement functions:
    • AC/DC voltage
    • AC/DC current
    • capacitance
    • conductance
    • resistance
    • frequency
    • continuity test
  • Auto ranging
  • Low battery indication

Video

Read more
Description

This UNI-T UT70C digital multimeter is designed for measuring AC/DC current, AC/DC voltage, resistance, capacitance, frequency and can be used for continuity and diode tests.

Features

  • Measurement functions:
    • AC/DC voltage
    • AC/DC current
    • capacitance
    • conductance
    • resistance
    • frequency
    • continuity test
  • Auto ranging
  • Low battery indication

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Technical Specifications

Display 7999 digit LCD, backlight, 62 × 53 mm
DC voltage Range 80 mV / 800 mV / 8 V / 80 V / 800 V / 1000 V
Accuracy ±(0.1%+1)
AC voltage Range 800 mV / 8 V / 80 V / 800 V / 1000 V
Accuracy ±(1%+3)
DC current Range 80 mA / 800 mA / 8 A / 10 A
Accuracy ±(0.3%+2)
AC current Range 80 mA / 800 mA / 8 A / 10 A
Accuracy ±(0.8%+2)
Resistance Range 800 Ω / 8 kΩ / 80 kΩ / 800 kΩ / 8 MΩ / 80 MΩ
Accuracy ±(0.5%+1)
Capacitance Range 1 nF / 10 nF / 100 nF / 1 μF / 10 μF / 100 μF
Accuracy ±(2%+3)
Conductance Range 80 nS
Accuracy ±(2%+10)
Frequency 1 kHz / 10 kHz / 100 kHz / 1 MHz
Power 9 V battery (6F22)
Dimensions 195 × 90 × 40 mm
Weight 0.600 kg

User Manuals And Software

Download UNI-T UT70C Digital Multimeter User Manual

Download UNI-T UT90D Digital Multimeter Software

Package Contains

  • Multimeter UNI-T UT70C (1 pc.)
  • Test lead (1 pc.)
  • RS232C interface cable (1 pc.)
  • Battery (1 pc.)
  • User manual (1 pc.)
Specifications
Type
  • digital
Measured Values
  • DC voltage
  • AC voltage
  • AC
  • DC
  • resistance
  • capacitance
  • frequency
  • porosity
Additional Functions
  • acoustic continuity test
  • data hold
  • connection to PC (RS232)
  • automatic shutdown/sleep mode
  • mnemonic
  • max / min
  • relative measurements
  • diode test
  • backlight
Range Selection
  • auto range
Digit Capacity
  • 7999
DC Voltage
  • up to 1000 V
AC Voltage
  • up to 1000 V
Resistance
  • up to 80 MOhm
Capacitance
  • up to 100 μF
Frequency
  • up to 1 MHz
DC
  • up to 10 A
AC
  • up to 10 A
Inductance
  • no
Temperature
  • no
Power
  • no
Duty cycle
  • yes
True RMS
  • no
Backlight
  • yes
PC connection
  • RS232
Diode test
  • yes
Analog bar graph
  • yes
Transistor check
  • no
Continuity test
  • yes
NCV
  • no
Battery Testing
  • no
