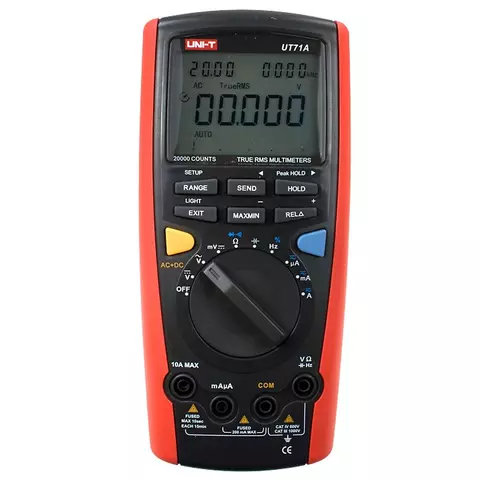

Digital Multimeter UNI-T UT71A
UNI-T UT71A Digital Multimeter is a high-quality multifunction pocket digital multimeter. This convenient portable device is powered from a 9 V battery. UNI-T UT71A multimeter is characterized by multiple measurements (voltage, current, resistance, capacitance, frequency) and tests (diode, continuity) and data hold function, peak hold function, auto ranging, relative measurements mode, analog bar graph, etc.
Features
- Compact and lightweight pocket-size device.
- LCD display with double backlight.
- Auto ranging.
- Data hold function.
- Peak hold function.
- Relative measurements mode (REL).
- Max/Min mode.
- True RMS.
- Analog bar graph.
- Multiple measurements:
- AC voltage.
- DC voltage.
- AC current.
- DC current.
- Resistance.
- Capacitance.
- Frequency.
- Diode testing.
- Continuity test.
- Fused 10 A range.
- Sleep mode.
- Continuity buzzer.
- Battery power.
- Low battery display.
- Interface: USB.
- Easy to connect and operate.
- Electrical safety: EN61010-1, CATII600V/CATI1000V.
Video
UNI-T UT71A Digital Multimeter is a high-quality multifunction pocket digital multimeter. This convenient portable device is powered from a 9 V battery. UNI-T UT71A multimeter is characterized by multiple measurements (voltage, current, resistance, capacitance, frequency) and tests (diode, continuity) and data hold function, peak hold function, auto ranging, relative measurements mode, analog bar graph, etc.
Features
- Compact and lightweight pocket-size device.
- LCD display with double backlight.
- Auto ranging.
- Data hold function.
- Peak hold function.
- Relative measurements mode (REL).
- Max/Min mode.
- True RMS.
- Analog bar graph.
- Multiple measurements:
- AC voltage.
- DC voltage.
- AC current.
- DC current.
- Resistance.
- Capacitance.
- Frequency.
- Diode testing.
- Continuity test.
- Fused 10 A range.
- Sleep mode.
- Continuity buzzer.
- Battery power.
- Low battery display.
- Interface: USB.
- Easy to connect and operate.
- Electrical safety: EN61010-1, CATII600V/CATI1000V.
Video
You'll find even more video reviews in the Video tab. Go and check it out!
Technical Specifications
| Function | Range | Accuracy |
|---|---|---|
| DC Voltage | 200 mV/2 V/20 V/200 V/1000 V | ±(0.1%+8) |
| AC Voltage | 2 V/20 V/200 V/1000 V | ±(0.8%+40) |
| DC Current | 200 µA/2000 µA/20 mA/200 mA/10 A | ±(0.2%+20) |
| AC Current | 200 µA/2000 µA/20 mA/200 mA/10 A | ±(1%+15) |
| AC Bandwidh | 100 kHz | |
| Resistance | 200 Ω/2 kΩ/20 kΩ/200 kΩ/2 MΩ/20 MΩ | ±(0.5%+20) |
| Capacitance | 20 nF/200 nF/2 µF/20 µF/200 µF/2 mF/20 mF | ±(1.5%+20) |
| Frequency | 20 Hz/200 Hz/2 kHz/20 kHz/200 kHz/2 MHz/20 MHz/200 MHz | ±(0.1%+15) |
| Duty Cycle | 10% ~ 90% | ±(1%+30) |
| 4 ~ 20 mA loop | 0% ~ 100% | ±(1%+50) |
| Imput Impedance for DC Voltage Measurement | ~ 10 MΩ; DC 200 mV: ~ 2.5 GΩ | |
| General Characteristics | ||
| Power | 9 V Battery (NEDA 1604, 6F22, 006P) | |
| Display | LCD, 50 × 73 mm | |
| Size | 200 × 93 × 40 mm | |
| Weight | 384 g | |
User Manual
Download UNI-T UT71A Digital Multimeter User Manual.
Sofware
Download UNI-T UT71A Digital Multimeter Sofware.
Package Contents
- UNI-T UT71A digital multimeter unit (1 pc.)
- Test leads (2 pcs.)
- USB interface cable (1 pc.)
- User manual (1 pc.)
- Carrying bag (1 pc.)
Note! Batteries are not included in the package.
