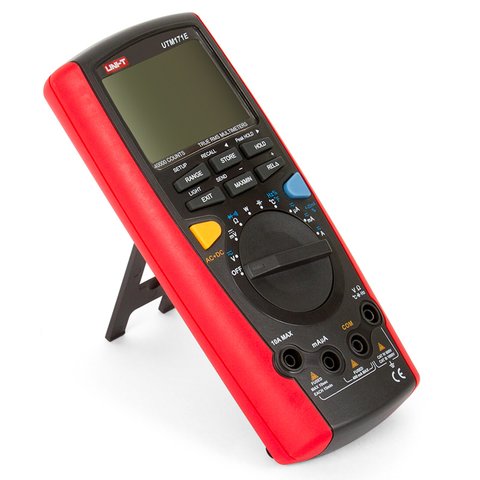

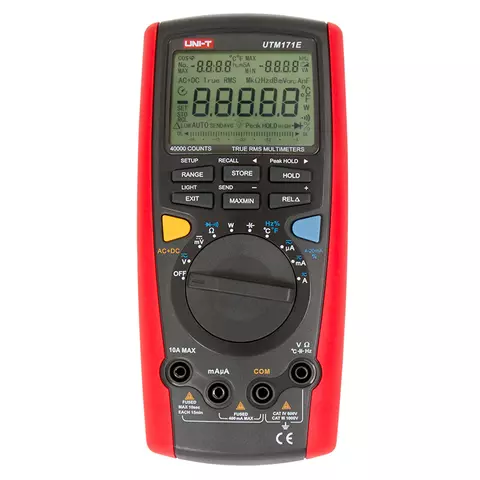

Digital Multimeter UNI-T UT71E

id: 819452
1.7 kg Warranty: 24 month (s)
A digital multimeter for AC/DC current and voltage, resistance, capacitance, frequency, temperature, duty cycle, power measurements and diode and continuity tests.
USD 165.00
Notify
when in stock
USD 165.00
Notify
when in stock
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Substitution
Video
Delivery
Payment
Warranty
Overview

This digital multimeter measures AC/DC current and voltage, resistance, capacitance, frequency, temperature (ºC and ºF), duty cycle, and tests diodes and continuity.

Please note that the standard temperature probe from the multimeter package contents allows measuring temperature up to 300 ºC. In case you require measuring temperatures above that value, please, buy Uni-T UT-T03 Temperature Probe.

Features

  • LCD with 3 indications: primary 40.000 counts, left secondary 4000 counts, right secondary 4000 counts
  • Backlight with 2 brightness levels
  • Functions:
    • AC/DC current and voltage
    • resistance
    • capacitance
    • frequency
    • temperature (ºC and ºF)
    • duty cycle
    • continuity test (with buzzer)
    • diode test
  • 4~20 mA loop
  • Auto ranging
  • Data logging (up to 100)
  • AC voltage and current true RMS measurements
  • Relative reference measurements
  • Max/Min measurements
  • Data Hold function
  • Peak Hold function
  • Fused 10A range
  • Sleep mode
  • Low battery indication

Technical Specifications

Display LCD with bargraph and backlight, 73 × 50 mm
DC voltage Range 400mV/4V/40V/400V/1000V
Accuracy ±(0.025%+5)
AC voltage Range 4V/40V/400V/1000V
Accuracy ±(0.4%+30)
DC current Range 400µA/4000µA/40A/400mA/10A
Accuracy ±(0.08%+8)
AC current Range 400µA/4000µA/40A/400mA/10A
Accuracy ±(0.5%+15)
Resistance Range 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ
Accuracy ±(0.3%+8)
Capacitance Range 40nF/400nF/4µF/40µF/400µF/4mF/40mF
Accuracy ±(1%+20)
Frequency Range 40Hz/400Hz/4kHz/40kHz/400kHz/4MHz/40MHz/400MHz
Accuracy ±(0.01%+8)
Temperature, ºC Range -40~ 1000
Accuracy ±(1%+30)
Temperature, ºF Range 40~ 1832
Accuracy ±(1.5%+50)
Duty cycle Range 10%~90%
Accuracy ±(1%+30)
4~20mA Loop Range 0~100%
Accuracy ±(1%+50)
Power 9V battery: NEDA 1604, 6F22 or 006P
Dimensions (H × W × D) 200 × 93 × 40 mm
Weight, g 340 (including battery)

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

User Manuals

Download UNI-T UT71E User Manual.

Sofware

Download UNI-T UT71E Sofware.

Package Contents

  • Multimeter UNI-T UT71E
  • Point contact temperature probe
  • Test lead
  • Power measuring adapter
  • USB interface cable
  • Power adaptor
  • Carrying bag
  • User manual

Note! Batteries are not included in the package.

Optional Accessories

Specifications
Type
  • digital
Measured Values
  • DC voltage
  • AC voltage
  • AC
  • DC
  • resistance
  • capacitance
  • frequency
  • porosity
  • temperature
  • power
  • cos φ
Additional Functions
  • acoustic continuity test
  • data hold
  • automatic shutdown/sleep mode
  • RMS measurement
  • diode test
  • backlight
  • peak hold
Range Selection
  • auto range
Digit Capacity
  • 39 999
DC Voltage
  • up to 1000 V
AC Voltage
  • up to 1000 V
Resistance
  • up to 40 MOhm
Capacitance
  • up to 40 000 μF
Frequency
  • up to 400 MHz
DC
  • up to 10 A
AC
  • up to 10 A
Inductance
  • no
Temperature
  • yes
Power
  • yes
Duty cycle
  • yes
True RMS
  • yes
Backlight
  • yes
PC connection
  • USB
Diode test
  • yes
Analog bar graph
  • yes
Transistor check
  • no
Continuity test
  • yes
NCV
  • no
Battery Testing
  • no
