Digital Oscilloscope Atten ADS7202SA
sales team

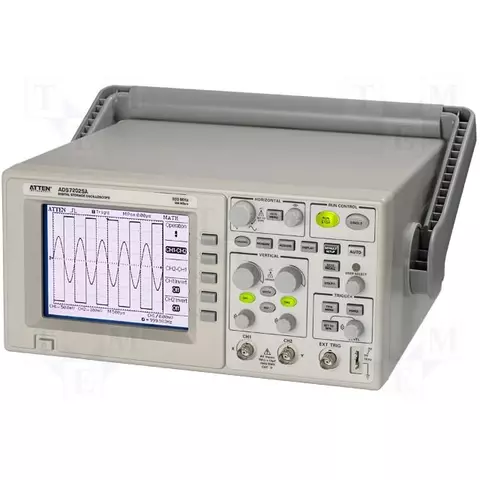

Atten ADS7202SA is a digital benchtop storage oscilloscope with 2 channels, 200 MHz bandwidth, sampling frequency of 1 GSa/s and 4 Kpts memory depth.
The Atten ADS7202SA digital oscilloscope is useful for electrical line mainteinance, checking electrical schemes and logical connections betweeen waveforms.
EasyScope computer software system enables remote control through the virtual control panel, oscillogramm storing as data arrays or graphics directly to PC.
Atten ADS7202SA Digital Oscilloscope Features
- 1 GSa/s sampling rate and 50 GSa/s equivalent sampling rate
- 2 channels
- 5,7" LCD
- 4 Kpts memory depth
- Trigger types: Edge, Pulse Width, Video
- FFT spectrum analyzer function
- USB connection and GPIB interface
- Easyscope software
Atten ADS7202SA Digital Oscilloscope Technical Specifications
Channels | 2 |
Analog bandwidth (at input BNC) | 200 MHz |
Real time sampling rate | 1 GSa/S |
Equivalent sampling rate | 50 GSa/s |
Memory depth | 4 Kpts |
Raise time | ≤ 1.8 ns |
Input impedance | 1 MΩ|| 13 pF, 50 Ω |
Vertical sensitivity | 2 mV to 5 V/div at input BNC (1-2-5 order) |
Horizontal scan range | 2.5 ns/div to 50 ns/div (100 MHz-200 MHz) |
Vertical resolution | 8 bit |
Input coupling | AC, DC, GND |
Input voltage | 100-240 V AC, CAT II, auto selection |
Trigger types | edge, pulse width, video |
Trigger modes | auto, normal, single |
Set Storage/Recall | 10 groups measuring storage/recall function |
Waveform Storage/Recall | 2 group referenced waveforms, storage/recall function 10 group captured waveform storage/recall function |
Auto measure | MAX, MIN, Peak-Peak, Average, Vrms, Rise Time, Fall Time, Cycle Frequency, Positive Pulse Width, Negative Pulse Width |
Cursor measure | ΔV, ΔT, 1/ΔT |
Math operation | +,-, *,FFT |
FFT | window mode: hanning, hamming, blackman, rectangular |
X-Y mode | ± 3 degrees phase error |
Display mode | TFT 5.7" diagonal |
Menu languages | English, Chinese |
Dimensions (L × W × H), mm | 300 × 290 × 150 |
Weight, kg | 4.6 |
Atten ADS7202SA Digital Oscilloscope Package
- Digital oscilloscope Atten ADS7202SA (1 pc.)
- Probe (2 pcs.)
- USB cable (1 pc.)
- Power cord (1 pc.)
- User manual (1 pc.)
- EasyScope software(1 pc.)
Atten ADS7202SA is a digital benchtop storage oscilloscope with 2 channels, 200 MHz bandwidth, sampling frequency of 1 GSa/s and 4 Kpts memory depth.
The Atten ADS7202SA digital oscilloscope is useful for electrical line mainteinance, checking electrical schemes and logical connections betweeen waveforms.
EasyScope computer software system enables remote control through the virtual control panel, oscillogramm storing as data arrays or graphics directly to PC.
Atten ADS7202SA Digital Oscilloscope Features
- 1 GSa/s sampling rate and 50 GSa/s equivalent sampling rate
- 2 channels
- 5,7" LCD
- 4 Kpts memory depth
- Trigger types: Edge, Pulse Width, Video
- FFT spectrum analyzer function
- USB connection and GPIB interface
- Easyscope software
Atten ADS7202SA Digital Oscilloscope Technical Specifications
Channels | 2 |
Analog bandwidth (at input BNC) | 200 MHz |
Real time sampling rate | 1 GSa/S |
Equivalent sampling rate | 50 GSa/s |
Memory depth | 4 Kpts |
Raise time | ≤ 1.8 ns |
Input impedance | 1 MΩ|| 13 pF, 50 Ω |
Vertical sensitivity | 2 mV to 5 V/div at input BNC (1-2-5 order) |
Horizontal scan range | 2.5 ns/div to 50 ns/div (100 MHz-200 MHz) |
Vertical resolution | 8 bit |
Input coupling | AC, DC, GND |
Input voltage | 100-240 V AC, CAT II, auto selection |
Trigger types | edge, pulse width, video |
Trigger modes | auto, normal, single |
Set Storage/Recall | 10 groups measuring storage/recall function |
Waveform Storage/Recall | 2 group referenced waveforms, storage/recall function 10 group captured waveform storage/recall function |
Auto measure |
MAX, MIN, Peak-Peak, Average, Vrms, Rise Time, Fall Time, Cycle Frequency, Positive Pulse Width, Negative Pulse Width |
Cursor measure | ΔV, ΔT, 1/ΔT |
Math operation | +,-, *,FFT |
FFT | window mode: hanning, hamming, blackman, rectangular |
X-Y mode |
± 3 degrees phase error |
Display mode | TFT 5.7" diagonal |
Menu languages | English, Chinese |
Dimensions (L × W × H), mm | 300 × 290 × 150 |
Weight, kg | 4.6 |
Atten ADS7202SA Digital Oscilloscope Package
- Digital oscilloscope Atten ADS7202SA (1 pc.)
- Probe (2 pcs.)
- USB cable (1 pc.)
- Power cord (1 pc.)
- User manual (1 pc.)
- EasyScope software(1 pc.)
