Description

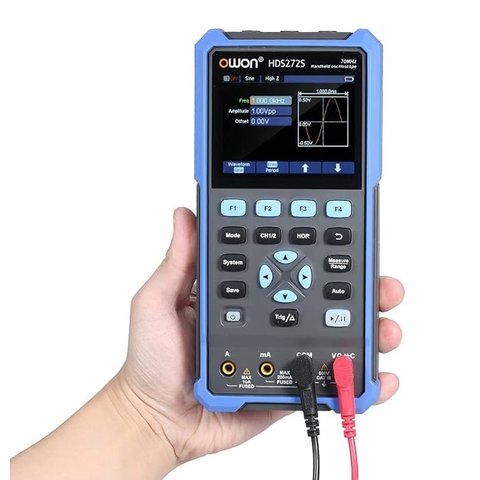

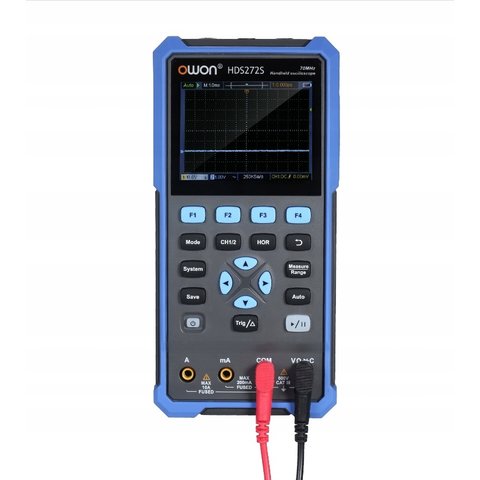

OWON HDS272S is a portable dual channel oscilloscope with built-in signal generator. Features 70 MHz bandwidth, 250 MSa/s sampling rate, 8K record length, and 3.5" LCD. The device is equipped with a built-in 20,000-count multimeter, measuring voltage, current, resistance, capacitance, testing diodes, and continuity. Its high-contrast and high-resolution LCD allows using the oscilloscope outdoors.

Features

  • 3 in 1 device: oscilloscope + multimeter + function generator.
  • 70 MHz bandwidth, 250 MSa/s sampling rate.
  • Multimeter testing modes: voltage, current, resistance, capacitance, diode, and continuity test.
  • 3.5" high contrast color LCD with high resolution.
  • Rechargeable 18650 battery with ≤3W of power consumption provides up to 6 hours of continuous use.
  • USB Type-C interface, SCPI command support.
  • Self-calibration function.

Technical Specifications

Read more
Description

OWON HDS272S is a portable dual channel oscilloscope with built-in signal generator. Features 70 MHz bandwidth, 250 MSa/s sampling rate, 8K record length, and 3.5" LCD. The device is equipped with a built-in 20,000-count multimeter, measuring voltage, current, resistance, capacitance, testing diodes, and continuity. Its high-contrast and high-resolution LCD allows using the oscilloscope outdoors.

Features

  • 3 in 1 device: oscilloscope + multimeter + function generator.
  • 70 MHz bandwidth, 250 MSa/s sampling rate.
  • Multimeter testing modes: voltage, current, resistance, capacitance, diode, and continuity test.
  • 3.5" high contrast color LCD with high resolution.
  • Rechargeable 18650 battery with ≤3W of power consumption provides up to 6 hours of continuous use.
  • USB Type-C interface, SCPI command support.
  • Self-calibration function.

Technical Specifications

Oscilloscope
Channels 2
Bandwidth 70 MHz
Sample Rate 250 MSa/s
Acquisition Mode Normal, Peak detect
Record Length 8K
Waveform Refresh Rate 10,000 wfrms/s
Input Coupling DC, AC, GND
Input Impedance 1 MΩ±2%, in parallel with 16pF±10pF
Probe Attenuation Factors 1X, 10X, 100X, 1000X, 10000X
Max. input Voltage 400V (DC+AC, PK-PK, 1 MΩ input impedance) (10:1 probe attenuation)
Bandwidth Limit (typical) 20 MHz
Horizontal Scale 5 ns/div - 1000 s/div, step by 1 - 2 - 5
Vertical Sensitivity 10 mV/div - 10 V/div
Vertical Resolution 8 bits
Trigger Type Edge
Trigger Modes Auto, Normal, Single
Automatic Measurement Period, Frequency, Mean, PK-PK, Max, Min
Cursor Measurement ΔV, ΔT, ΔT&ΔV between cursors
Multimeter
Max. Resolution 20,000 counts
Testing Mode DC voltage 0.01 mV - 1000 V (±0.5% + 5)
AC voltage 0.01 mV - 750 V (±0.8% + 5)
DC current 10 μA - 10 A (±0.8% + 2)
AC current 10 μA - 10 A (±1% + 5)
Resistance 0.01 Ω - 100 MΩ (±0.8% + 3)
Capacitance 1 pF - 2 mF (±3% + 10)
Diode testing 0-2 V
Continuity
Input Impedance 10 MΩ
Max Input Voltage AC 750 V, DC 1000 V
Max Input Current DC: 10 A; AC: 10 A
Function Generator
Output frequency Sine 0.1 Hz - 25 MHz
Square 0.1 Hz - 5 MHz
Ramp 0.1 Hz - 1 MHz
Pulse 0.1 Hz - 5 MHz
Arbitrary waveform 0.1 Hz - 5 MHz
Sample rate 125 MSa/s
Channels single channel
Amplitude range 20 mV - 5 V (high impedance)
Record length 8K
Vertical resolution 14 bit
Output impedance 50 Ω
General Specifications
Display 3.5" LCD
Interface USB Type-C
Dimensions 196 mm × 96 mm × 38 mm
Weight 600 g

User Manual

PDF  Download OWON HDS272S user manual.

Package Contents

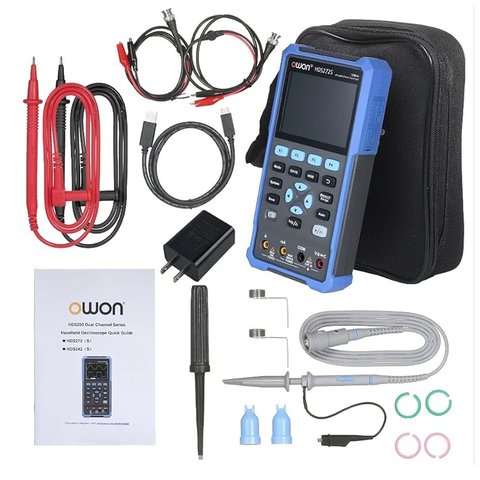

  • Digital Oscilloscope OWON HDS272S — 1 pc.
  • Oscilloscope Measuring Probes — 1 set
  • Multimeter Measuring Probes — 1 set
  • USB Cable — 1 pc.
  • Adapter — 1 pc.
  • Power Supply — 1 pc.
  • Storage/Carrying Bag — 1 pc.
  • User Manual — 1 pc.
