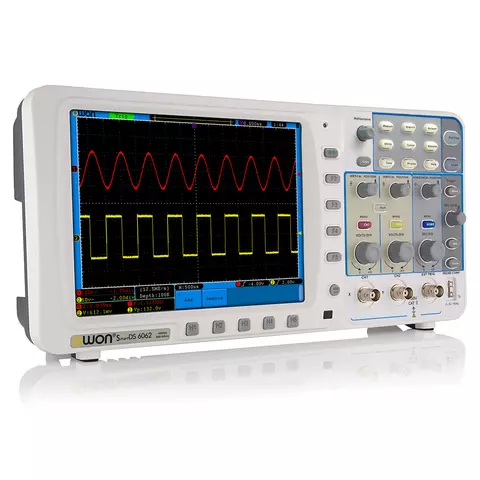

Digital Oscilloscope OWON SDS6062E
id: 856861
Digital Oscilloscope OWON SDS6062E
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 360.00
Overview
5.6 kg 110, 220 V Warranty: 12 months
Dual-channel digital oscilloscope with 60 MHz bandwidth, up to 500 MS/s real-time sample rate, and 8" display. Read more
USD 360.00
Buy wholesale and save
Description
OWON SDS6062E is a dual-channel digital oscilloscope with 60 MHz bandwidth, up to 500 MS/s real-time sample rate, and 8" display.
Features
- Pass/Fail function
- Autoscale function
- 8 inch LCD color display
- Support USB for data transmission to PC
- Waveform record and replay function
Technical Specifications
| Bandwidth | 60 MHz |
| Real time sample rate | 500 MS/s |
| Channels | Dual channels + external trigger |
| Display | 8.0" color LCD, TFT screen, 640×480 pixels, 65535 colors |
| Input impedance | 1 MΩ ± 2%, in parallel with 15 pF ± 3 pF |
| Record length | 100 Kpts for each channel |
| Max. input voltage | 400 V (PK-PK) (DC + AC PK-PK) |
| Probe attenuation factor | 1X, 10X, 100X, 1000X |
| Vertical resolution (A/D) | 8 bit (2 channels simultaneously) |
| Vertical sensitivity | 2 mV/div – 10 V/div |
| Waveform Math | ＋, －, ×, ÷, FFT |
| Waveform storage | 15 waveforms |
| Communication interface | USB, Supports USB Flash Disk Storage, LAN |
| Mains Voltage | 100 - 240 VAC RMS, 50/60 Hz, CAT II |
| Power Consumption | < 15 W |
| Fuse | 2 A, T grade, 250 V |
| Dimensions | 348 mm × 170 mm × 78 mm |
| Weight | ~ 1.5 kg |
Video
Package Contents
- Owon SDS6062E Digital Oscilloscope – 1 pc.
- Measuring probes – 1 pair
- Power cord – 1 pc.
- USB data cable – 1 pc.
- CD – 1 pc.
- User's Manual – 1 pc.
