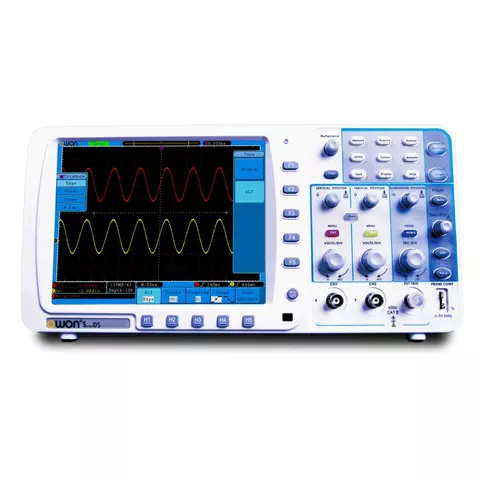

Digital Oscilloscope OWON SDS7102-V

id: 856863
5.6 kg 110, 220 V Warranty: 12 month (s)
Dual-channel digital oscilloscope with 100 MHz bandwidth, up to 1 GS/s real-time sample rate, 10 M memory and 8" display.
USD 475.00
Notify
when in stock
USD 475.00
Notify
when in stock
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Substitution
Delivery
Payment
Warranty
Overview

OWON SDS7102-V is a dual-channel digital oscilloscope with 100 MHz bandwidth, up to 1 GS/s real-time sample rate, 10 M memory and 8" display.

Features

  • Pass/Fail function
  • Autoscale function
  • 8 inch LCD color display
  • Interfaces: USB2.0, USB flash drive, LAN, VGA

Technical Specifications

Bandwidth 100 MHz
Real time sample rate 1 GS/s
Channels Dual channels + external trigger
Display 8.0" color LCD, TFT screen, 640×480 pixels, 65535 colors
Input impedance 1 MΩ ±2%, in parallel with 10 pF ±5 pF
Record length 10M
Max. input voltage 400 V (PK-PK) (DC + AC PK-PK)
Probe attenuation factor 1X, 10X, 100X, 1000X
Vertical resolution (A/D) 8 bit (2 channels simultaneously)
Vertical sensitivity 2 mV/div ~ 10 V/div
Waveform Math +, -, ×, ÷, FFT
Waveform storage 15 waveforms
Communication interface USB2.0, USB flash drive, LAN, VGA
Mains Voltage 100 - 240 VAC RMS, 50/60 Hz, CAT II
Power Consumption < 18 W
Fuse 2 A, T grade, 250 V
Dimensions 340 × 155 × 70 mm
Weight ~ 1.82 kg

Video

Youtube video

Youtube video

Youtube video

Youtube video

Package Contents

  1. Owon SDS7102-V Digital Oscilloscope – 1 pc.
  2. Measuring probes – 1 pair
  3. Power cord – 1 pc.
  4. USB data cable – 1 pc.
  5. CD – 1 pc.
  6. User's Manual – 1 pc.
Specifications
Number of channels
  • dual-channel
Bandwidth
  • 100 MHz
Type
  • desktop
Sample Rate
  • 1 GS/s
Screen Size
  • 8,0" TFT LCD
Storage Capacity
  • 10 MB
