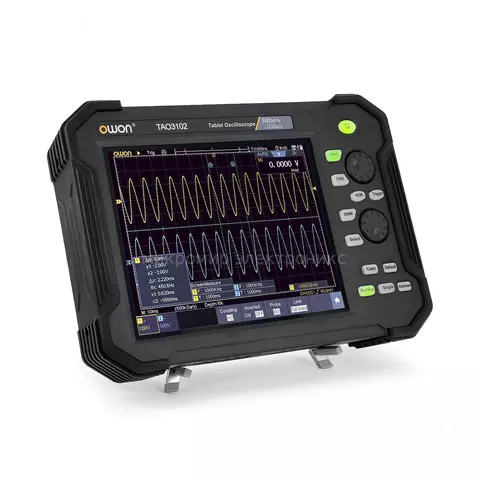

Digital Oscilloscope OWON TAO3102 WIFI
id: 915154
Digital Oscilloscope OWON TAO3102 WIFI
Overview
Description
Specifications
Delivery
Payment
Warranty
Price coming soon
Overview
3.2 kg Warranty: 12 months
Dual-channel oscilloscope with a bandwidth of 100 MHz, sampling rate of 1 GS/s, memory depth of 40 MB, an 8-inch 800 × 600 touchscreen LCD display, and WiFi module Read more
Price coming soon
Description
OWON TAO3102 WIFI is a two-channel tablet-type digital oscilloscope with a bandwidth of 100 MHz, a sample rate of 1 GS/s, and a memory depth of 40 MB. It features a large 800 × 600 color touchscreen 8-inch LCD display and a built-in WiFi module. The oscilloscope includes a built-in frequency counter and a digital multimeter with automatic range selection, capable of measuring voltage, current, resistance, and diode testing.
Features
- Dual-channel oscilloscope + multimeter
- Bandwidth: 100 MHz; Sample rate: 1 GS/s
- 8-bit vertical resolution (A/D)
- Record length: 40 MB; Waveform refresh rate: 45,000 wfms/s
- Low background noise level
- 800 × 600 high resolution 8-inch multi-touch color LCD display
- Intuitive user interface
- SCPI and LabVIEW supported
- Decoding capabilities: I2C, SPI, RS232, and CAN (optional)
- Communication interfaces: USB-host, USB-device, PictBridge USB port, LAN
- WiFi module and WiFi support software pack to enable data exchange
Technical Specifications
| Oscilloscope | |
|---|---|
| Bandwidth | 100 MHz |
| Sample rate | 1 GS/s |
| Vertical resolution (A/D) | 8 bit |
| Rise time | ≤3.5 ns |
| Record length | 40 MB |
| Waveform refresh rate | 45,000 wfms/s |
| Horizontal scale | 1 ns/div – 1000 s/div, step 1 - 2 - 5 |
| Channels | 4 |
| Display | 8-inch color LCD, 800 × 600, multi-touch |
| Input impedance | 1 MΩ ± 2%, parallel with 15 pF ± 5 pF |
| Maximum input voltage | 1 MΩ ≤ 300 Vrms |
| DC gain accuracy | ±3% |
| Probe attenuation factor | 0.001X - 1000X, step 1 - 2 - 5 |
| Time base accuracy | Maximum ±10 ppm |
| Input coupling | DC, AC, GND |
| Vertical sensitivity | 1 mV/div - 10 V/div (per channel) |
| Trigger types | Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logics, I2C, SPI, RS232, CAN (option) |
| Bus decoding (optional) | I2C, SPI, RS232, CAN |
| Trigger modes | Auto, Normal, Single |
| Automatic measurements | Vpp, Vavg, Vrms, Freq, Period, Week RMS, Cursor RMS, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Phase A→B ↑, Phase A→B↓, Preshoot, Rise Time, Fall Time,+Width, -Width, +Duty, -Duty, Duty Cycle, Delay A→B ↑, Delay A→B↓, +Pulse Count, -Pulse Count, Rise Edge Count, Fall Edges Count, Area, Cycle Area |
| Mathematical functions | addition (＋), subtraction (－), multiplication (×), division (÷), FFT, FFTrms, integration, differentiation, square root, user-defined functions, filter options (low-pass, high-pass, band-pass, band-reject) |
| Waveform storage | 100 waveforms |
| Communication interfaces | USB-host, USB-device, USB port for PictBridge, LAN, WIFI |
| Frequency counter | available |
| Battery | 7.4 V, 8000 mAh, 5 hrs of operation |
| Dimensions | 270 × 191 × 48 mm |
| Weight | c. 1.7 kg |
| Built-In Multimeter | |
| Display | 4 ½ count |
| Voltage | mV: 20,000 mV - 200,00 mV |
| DCV: 2.0000–1000.0 V | |
| ACV: 2.0000–750.0 V | |
| Current | ACD: 10.00 A |
| ACA: 10.00 A | |
| Resistance | 200.00 Ω - 100.00 MΩ |
| Diode testing | available |
| Auto ranging | available |
User Guide
Download OWON TAO3102 WIFI User Guide
Package Contents
- OWON TAO3102 WIFI digital oscilloscope — 1 pc.
- Probes — 4 pcs.
- Probe adjuster — 1 pc.
- Power cable — 1 pc.
- Adapter — 1 pc.
- USB cable — 1 pc.
- Stand — 1 pc.
- BNC adapter — 1 pc.
- Software CD — 1 pc.
- User manual — 1 pc.
