Digital Oscilloscope OWON XDS3102A

id: 890737
Digital Oscilloscope OWON XDS3102A
Overview
Description
Specifications
Delivery
Payment
Warranty
Price coming soon

Overview

2-channel desktop digital oscilloscope with 100 MHz bandwidth, 1 GSa/s sample rate, 40 M memory, 12 bits vertical resolution. Read more
Price coming soon
Price coming soon
Impossible to estimate the shipping cost

Description

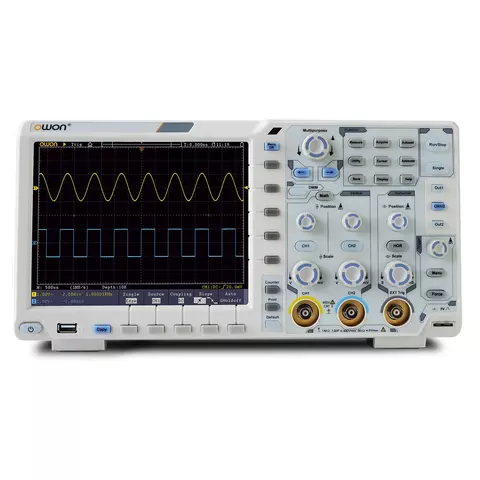

OWON XDS3102A is a desktop dual-channel digital oscilloscope with a 100 MHz bandwidth.

Features

  • Low background noise.
  • 8-inch high resolution LCD (800 x 600), optional multi-touch screen.
  • User-friendly operation experience.
  • SCPI and LabVIEW supported.
  • Multi-interface integration: USB host, USB device, USB port for PictBridge, LAN, AUX, and VGA.

Technical Specifications

  XDS3062A XDS3102A XDS3202A
Bandwidth 60 MHz 100 MHz 200 MHz
Sample Rate 1 GS/s
Vertical Resolution 12 bits 14 bits
Channels 2
Record length 40 M
Waveform Refresh Rate 45,000 wfms/s
Rise Time (at input, typical) ≤5.8 ns ≤3.5 ns ≤1.7 ns
Horizontal Scale 2 ns/div - 1000 s/div
Input Impedance 1 MΩ ± 2%, in parallel with 15pF ± 5pF
Max Input Voltage 1 MΩ ≤ 300 Vrms;
DC Gain Accuracy ±1%
DC Accuracy average ≥16:±(3% +0.05div) for △V
Probe Attenuation Factor 0.001X - 1000X, step by 1 - 2 - 5
LF Respond (AC, -3dB) ≥5 Hz
Sample Rate / Relay Time Accuracy ±1 ppm
Interpolation (sinx)/x,x
Interval (△T) Accuracy (full bandwidth) Single: ±(1 interval time + 1ppm x reading + 0.6ns);
Average > 16: ±(1 interval time + 1ppm x reading + 0.4ns)
Input Coupling DC, AC, GND
Vertical Sensitivity 1 mV/div - 10 V/div (at input)
Trigger Type Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232,
and CAN (optional)
Bus Decoding (optional) I2C, SPI, RS232, CAN
Trigger Mode Auto, Normal, and Single
Vertical Range ±2V(1mV/div~50mV/div);±20V(100mV/div~1V/div);±200V(2V/div~10V/div)
Waveform Math +, -, *, /, FFT, Intg, Diff, Sqrt, and user defined function
Line / Field Frequency (video) NTSC, PAL and SECAM standard
Cursor Measurement △V, and △T between cursors, △V and △T between cursors, and auto- cursors
Automatic Measurement Vpp, Vavg, Vrms, Freq, Period, Week RMS, Cursor RMS, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Phase A→B ↑, Phase A→B↓, Preshoot, Rise Time, Fall Time,+Width, -Width, +Duty, -Duty, Duty Cycle, Delay A→B ↑, Delay A→B↓, +Pulse Count, -Pulse Count, Rise Edge Count, Fall Edges Count, Area, Cycle Area
Waveform Storage 100 waveforms
General
Communication Interface USB host, USB device, Trig Out (P/F), LAN, and VGA (optional)
Display 8" color LCD, 800 x 600 pixels display
Power Supply 100 V - 240 V AC, 50/60 Hz, CAT II
Battery (optional) 3.7 V, 13200 mA
Dimensions 340 × 177 × 90 mm
Weight 2.6 kg

Video

Youtube video

Youtube video

Youtube video

Youtube video

User Manual

PDF  Download OWON XDS3102A User Manual.

Package Contents

  • OWON XDS3102A Digital Oscilloscope — 1 pc.
  • Power cord — 1 pc.
  • USB cable — 1 pc.
  • Probes — 1 set
  • Quick quide — 1 pc.
  • CD — 1 pc.

Specifications

Number of channels
  • dual-channel
Bandwidth
  • 100 MHz
Type
  • desktop
Sample Rate
  • 1 GS/s
Screen Size
  • 8,0" TFT LCD
Storage Capacity
  • 40 MB
