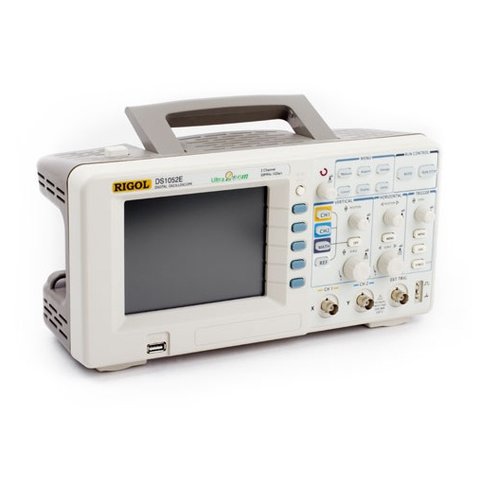

Rigol DS 1052E is a 50MHz 2-Channel mixed signal oscilloscope. This inexpensive oscilloscope offers excellent quality at truly remarkable price! As a USB oscilloscope, DS1052E supports direct print to PictBridge compatible printers.
Applications
Rigol DS 1052E is a 50MHz 2-Channel mixed signal oscilloscope. This inexpensive oscilloscope offers excellent quality at truly remarkable price! As a USB oscilloscope, DS1052E supports direct print to PictBridge compatible printers.
Applications
- Power lines calibration
- Circuits work testing
- Waveform logical connection tester
- Education and technical training.
Features
- Built-in digital filter
- Different mathematic functions
- Recording, storing and replying waveform data
- 20 automatic measurements
- "good/bad" mode
- 1 GSa/s maximum real-time sample rate, 10 GSa/s maximum equivalent-time sample rate
- 1Mpts long Memory Depth
- 50 MHz Bandwidths
- Ultra compact design: 303mm x 154mm x 133mm (WxHxD)
- 64 k TFT color LCD, bright and vivid waveform display
- Advanced trigger modes: Edge, Video, Pulse Width, Slope, Alternate
- Adjustable bigger sensitivity: Effectively filter noise from bigger signal and avoid false trigger
- 20 automatic measurements
- Cursor measurements: Manual, Track and Auto Measure modes
- 10 waveforms, 10 setups, BMP and CSV storage
- Math functions:+, -, x, FFT, Invert
- Special digital filter and waveform recorder
- Built-in hardware frequency counter
- Standard interface: USB Device, USB Host, RS-232
- Standard configuration: PassIFail test, effectively avoid electromagnetic interference by using photoelectricity-isolation
- Multi-language user interface, built-in help system
Ultrascope Software
Ultrascope software was developed specially for RIGOL instruments. User can connect an oscilloscope to a PC via RS - 232, GRIP and USB interfaces. User can read the measurements results, oscillograms and captured waveform data. It also allows the control of oscilloscope, saving and printing data and receive the measurements results and captured waveform data.
Technical Specifications
Model | DS1102E | DS1052E | ||
---|---|---|---|---|
Bandwidth | 100 MHz | 50 MHz | ||
Channels | Dual Channels + External Trigger | |||
Real-time Sample Rate | 1GS/s | |||
Equivalent Sample Rate | 25 GSa/s | 10 GSa/s | ||
Memory Depth | Channel Mode | Sample Rate | Normal Memory | Long Memory |
Single Channel | 1 GS/s | 16 kpts | N/A | |
Single Channel | 500MS/s Or lower | 16 kpts | 1 Mpts | |
Dual Channel | 500MS/s Or lower | 8 kpts | 512 kpts | |
Rise Time | 3.5ns | 7ns | ||
Time Base Range | 2 ns/div to 50 s/div | 5 ns/div to 50 s/div | ||
Trigger Modes | Edge, Video, Pulse Width, Slope, Alternative | |||
Input Impedance | 1 MΩ || 15 pF | |||
Vertical Sensitivity | 2 mV/div to 10 V/div | |||
Vertical Resolution | 8 bits | |||
Input Coupling | DC, AC, Ground | |||
Maximum Input Voltage | 400 V (DC + AC peak) | |||
Roll Range | 500 ms/div to 50 s/div | |||
Cursor Measurements | Manual, Track and Auto Measure modes | |||
Math | Add, Subtract, Multiply, FFT | |||
Storage | USB Device, USB Host, RS-232, P/F Out (Isolated) | |||
Display | 5.6"TFT (64K, Color LCD), 320 x 234 | |||
Power | Worldwide Use, 100–240 V / 50 VA Max | |||
Weight | 2.4 kg |
Data Sheet
Download RIGOL DS1052E Data Sheet.
Video
You'll find even more video reviews in the Video tab. Go and check it out!
Package Contents
- RIGOL DS1052E Digital Oscilloscope
- Oscilloscope probes (2 pcs.)
- USB cable
- Power cable 110-220V
