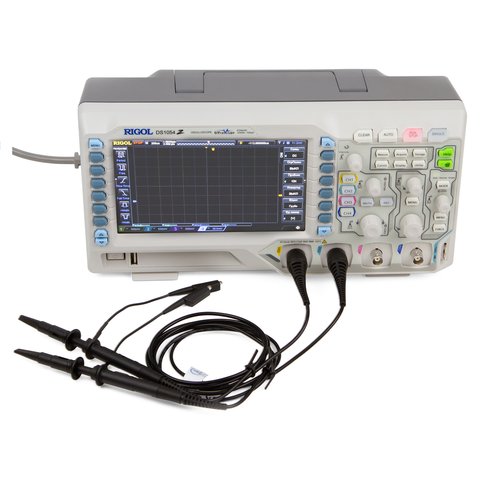

Digital Oscilloscope RIGOL DS1054Z

id: 854402
Digital Oscilloscope RIGOL DS1054Z
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
USD 500.00
Add to cart
Overview
Bestseller
4.5 (2)
Rate product
7 kg 110, 220 V
Availability in stock: HK
Warranty: 36 months
Four-channel digital oscilloscope with 50 MHz bandwidth, 1 GSa/s real-time sample rate, 7" display and up to 30,000 waveforms/sec capture rate. Read more
USD 500.00
Add to cart
Add to wishlist
Compare
Compare
USD 500.00
Add to cart
Impossible to estimate the shipping cost

Frequently bought together

Dual-channel function/arbitary waveform generator with 40 MHz max. output frequency, 1.2 GSa/s sample rate, 16 bits vertical resolution.
Availability in stock: HK
Shipping cost
ID: 862791 6 kg 110, 220
Dual-channel function/arbitary waveform generator with 80 MHz max. output frequency, 1.2 GSa/s sample rate, 16 bits vertical resolution.
Availability in stock: HK
Shipping cost
ID: 862792 6 kg 110, 220
Dual-channel function/arbitary waveform generator with 60 MHz max. output frequency, 150 MSa/s sample rate, 14 bits vertical resolution.
Availability in stock: HK
Shipping cost
ID: 869148 6 kg 110, 220
Dual-channel function/arbitrary waveform generator with 30 MHz max. output frequency, 150 MSa/s sample rate, 14 bits vertical resolution.
Availability in stock: HK
Shipping cost
ID: 868138 6 kg 110, 220
Compact 1-channel digital signal generator in a protective silicone case. Generates square waveforms with a frequency range of 0.001 Hz - 180 kHz.
Availability in stock: HK
Shipping cost
ID: 902550 0.5 kg
Dual-channel function/arbitary waveform generator, with 25 MHz frequency, 125 MS/s sample rate, 14 bits vertical resolution, 2 pts to 8K pts wave length.
Availability in stock: HK
Shipping cost
ID: 875043 3 kg
Waveform record and play option for digital oscilloscopes RIGOL DS1054Z, DS1074Z, DS1074Z-S, DS1104Z, DS1104Z-S.
Availability in stock: HK
ID: 854831 0.001 kg
Description

RIGOL DS1054Z digital oscilloscope is the new four-channel oscilloscope (50 MHz). This compact lightweight digital oscilloscope provides exceptionally accurate waveform viewing and measurements. RIGOL DS1054Z provides up to 30 000 wfms/s waveform acquisition rate.

RIGOL DS1054Z digital oscilloscope is perfect for production tests, field service, research, design and all other applications involving analog/digital circuit tests and troubleshooting, as well as education and training.

Features

  • Bandwidth: 50 MHz.
  • 4 channels.
  • Real-time sample rate: 1 GSa/s.
  • Memory depth: 12 MB.
  • Innovative UltraVision technology.
  • Waveform acquisition rate up to 30,000 wfms/s.
  • Low noise floor, dynamic Range: 1mV/div to 10V/div
  • 7-inch color LCD.
  • Standard interface: LAN, USB host and device, AUX, USB-GPIB (opt.)
  • Compact design, small dimensions, light weight.

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Technical Specifications

Bandwidth 50 MHz
Channels 4
Real time sample rate 1 GSa/s (single-channel), 500 MSa/s (dual-channel), 250 MSa/s (full-channel)
Memory depth 12 MB, 24 MB (opt.)
Waveform acquisition rate 30,000 wfms/s (Max. )
Vertical sensitivity range 1 mV/div - 10 V/div
Offset range 1 mV/div to 499 mV/div: ± 2 V
500 mV/div to 10 V/div: ± 100 V
Vertical resolution 8 bit
Math Add, Subtract, Multiply, Divide, FFT, editable
Output voltage ~ 3 V, peak-peak
Frequency 1 kHz
General Specifications
Power 50 W (max.)
Power voltage 100-240 V, 45-440 Hz
Temperature range Operation: 0°C to +50°C
Non-operation: -20°C to +70°C
Cooling method Fan
Display 7" color LCD (800×480)
Weight 3.8 kg (± 0.5 kg)
Dimensions 313.1 × 160.8 × 122.4 mm

Package Contents

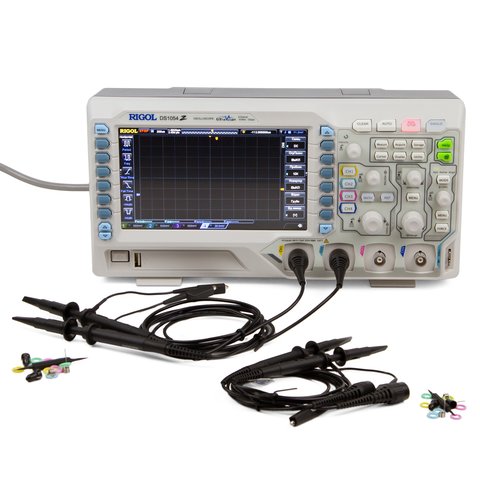

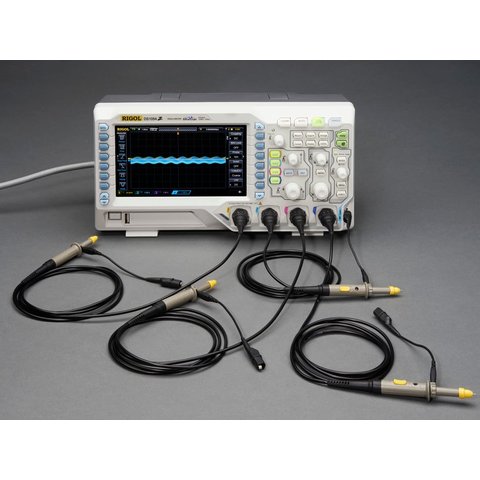

  • RIGOL DS1054Z digital oscilloscope (1 pc.)
  • Passive probes (4 pcs.)
  • Power cable (1 pc.)
  • USB data cable (1 pc.)
Specifications
Screen Size
  • 7.0" TFT display
Number of channels
  • 4-channel
Bandwidth
  • 50 MHz
Type
  • desktop
Sample Rate
  • 1 GS/s
Storage Capacity
  • 12 MB
