Digital Oscilloscope RIGOL DS1074Z Plus
id: 869161
Digital Oscilloscope RIGOL DS1074Z Plus
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 513.53
USD 429.00
Add to cart
Overview
7 kg 110, 220 V
Availability in stock:
HK
Warranty: 36 months Four-channel digital oscilloscope with 70 MHz bandwidth, 1 GSa/s real-time sample rate, 7" display and up to 30,000 waveforms/sec capture rate. 16-channel logic analyzer. Read more
Description

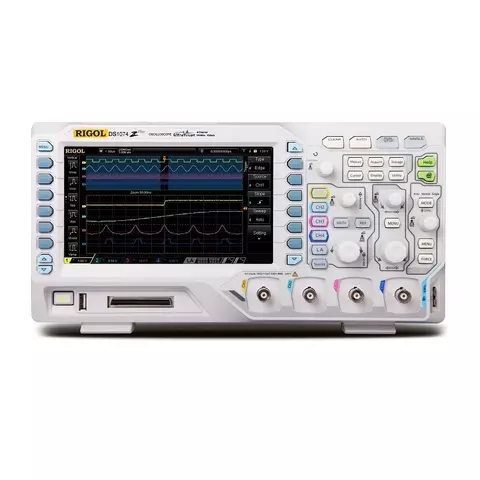

RIGOL DS1074Z Plus is the new economic level four-channel DSO with a possibility to upgrade to a mixed signal oscilloscope with 16 digital channels. This compact lightweight digital oscilloscope provides exceptionally accurate waveform viewing and measurements. RIGOL DS1074Z Plus provides up to 30 000 wfms/s waveform acquisition rate.
RIGOL DS1074Z Plus digital oscilloscope is perfect for production tests, field service, research, design and all other applications involving analog/digital circuit tests and troubleshooting, as well as education and training.
Features
- Bandwidth: 70 MHz.
- 4 analog + 16 digital channels (with MSO Upgrade Option).
- Real-time sample rate: up to 1 GSa/s.
- Memory depth: 12 Mpts.
- Innovative UltraVision technology.
- Waveform acquisition rate up to 30,000 wfms/s.
- Low noise floor, dynamic Range: 1mV/div to 10V/div
- 7-inch color LCD.
- Standard interface: LAN, USB host and device, AUX, USB-GPIB (opt.)
- Compact design, small dimensions, light weight.
Technical Specifications
| Bandwidth | 70 MHz |
| Analog Channels | 4 |
| Digital Channels | 16 (upgradable with MSO Upgrade Option) |
| Real time sample rate | 1 GSa/s (single-channel), 500 MSa/s (dual-channel), 250 MSa/s (full-channel) |
| Memory depth | 12 Mpts, 24 Mpts (opt.) |
| Waveform acquisition rate | 30,000 wfms/s (Max. ) |
| Vertical sensitivity range | 1 mV/div - 10 V/div |
| Offset range | 1 mV/div to 499 mV/div: ± 2 V 500 mV/div to 10 V/div: ± 100 V |
| Vertical resolution | 8 bit |
| Math | Add, Subtract, Multiply, Divide, FFT, editable |
| Output voltage | ~ 3 V, peak-peak |
| Frequency | 1 kHz |
| General Specifications | |
|---|---|
| Power | 50 W (max.) |
| Power voltage | 100-240 V, 45-440 Hz |
| Temperature range | Operation: 0°C to +50°C Non-operation: -20°C to +70°C |
| Cooling method | Fan |
| Display | 7" color LCD (800×480) |
| Weight | 3.8 kg (± 0.5 kg) |
| Dimensions | 313.1 × 160.8 × 122.4 mm |
Data Sheet
Download RIGOL DS1074Z Plus Data Sheet.
User Manual
Download RIGOL DS1074Z Plus User Manual.
Video
Package Contents
- RIGOL DS1074Z Plus digital oscilloscope (1 pc.)
- Passive probes (4 pcs.)
- Power cable (1 pc.)
- USB data cable (1 pc.)
