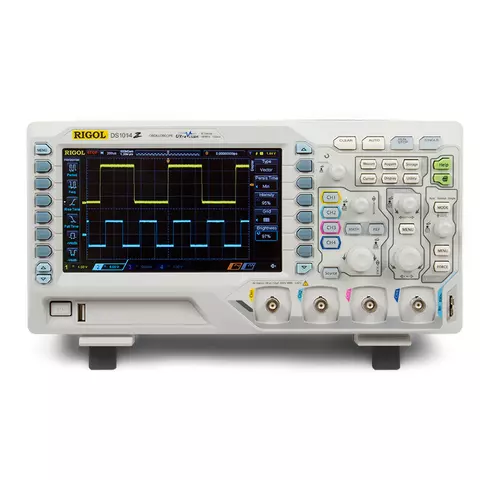

Digital Oscilloscope RIGOL DS1074Z

id: 844221
Digital Oscilloscope RIGOL DS1074Z
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
Discontinued
Find substitute
Overview
7.1 kg 110, 220 V Warranty: 36 months
Four-channel digital oscilloscope with 70 MHz bandwidth, 1 GSa/s real-time sample rate, 7" display and up to 30,000 waveforms/sec capture rate.
Discontinued
Find substitute
Compare
Compare
Discontinued
Find substitute
Impossible to estimate the shipping cost

You may also like

Digital Oscilloscope SIGLENT SDS1104X U
Bestseller
Add to wishlist
Digital Oscilloscope SIGLENT SDS1104X-U
USD 399.00
USD 359.10
Add to wishlist
Add to cart
4-channel digital oscilloscope with 100 MHz bandwidth, up to 1 GSa/s real-time sampling rate, and up to 14 Mpts record length.
Bestseller
Availability in stock: HK
Shipping cost
ID: 898512 6 kg
Super Phosphor Oscilloscope SIGLENT SDS1104X E
Bestseller
Add to wishlist
Super Phosphor Oscilloscope SIGLENT SDS1104X-E
USD 499.00
USD 449.10
Add to wishlist
Add to cart
4-channel phosphor oscilloscope with 100 MHz bandwidth, 1 GSa/s real-time sample rate, 14 MB memory, 7.0" display and up to 400,000 waveforms/sec capture rate.
Bestseller
Availability in stock: HK
Shipping cost
ID: 874773 6 kg
Description

RIGOL DS1074Z digital oscilloscope is the new economic level four-channel oscilloscope (70 MHz). This compact lightweight digital oscilloscope provides exceptionally accurate waveform viewing and measurements. RIGOL DS1074Z provides up to 30 000 wfms/s waveform acquisition rate.

RIGOL DS1074Z digital oscilloscope is perfect for production tests, field service, research, design and all other applications involving analog/digital circuit tests and troubleshooting, as well as education and training.

Features

  • Bandwidth: 70 MHz.
  • 4 channels.
  • Real-time sample rate: 1 GSa/s.
  • Memory depth: 12 Mpts.
  • Innovative UltraVision technology.
  • Waveform acquisition rate up to 30,000 wfms/s.
  • Low noise floor, dynamic Range: 1mV/div to 10V/div
  • 7-inch color LCD.
  • Standard interface: LAN, USB host and device, AUX, USB-GPIB (opt.)
  • Compact design, small dimensions, light weight.

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Technical Specifications

Bandwidth 70 MHz
Channels 4
Real time sample rate 1 GSa/s (single-channel), 500 MSa/s (dual-channel), 250 MSa/s (full-channel)
Memory depth 12 Mpts, 24 Mpts (opt.)
Waveform acquisition rate 30,000 wfms/s (Max. )
Vertical sensitivity range 1 mV/div - 10 V/div
Offset range 1 mV/div to 499 mV/div: ± 2 V
500 mV/div to 10 V/div: ± 100 V
Vertical resolution 8 bit
Math Add, Subtract, Multiply, Divide, FFT, editable
Output voltage ~ 3 V, peak-peak
Frequency 1 kHz
General Specifications
Power 50 W (max.)
Power voltage 100-240 V, 45-440 Hz
Temperature range Operation: 0°C to +50°C
Non-operation: -20°C to +70°C
Cooling method Fan
Display 7" color LCD (800×480)
Weight 3.8 kg (± 0.5 kg)
Dimensions 313.1 × 160.8 × 122.4 mm

Additional Information

Download RIGOL DS1074Z Data Sheet.

Download RIGOL DS1074Z User Manual.

Package Contents

  • RIGOL DS1074Z digital oscilloscope (1 pc.)
  • Passive probes (4 pcs.)
  • Power cable (1 pc.)
  • USB data cable (1 pc.)
Read more
Description

RIGOL DS1074Z digital oscilloscope is the new economic level four-channel oscilloscope (70 MHz). This compact lightweight digital oscilloscope provides exceptionally accurate waveform viewing and measurements. RIGOL DS1074Z provides up to 30 000 wfms/s waveform acquisition rate.

RIGOL DS1074Z digital oscilloscope is perfect for production tests, field service, research, design and all other applications involving analog/digital circuit tests and troubleshooting, as well as education and training.

Features

  • Bandwidth: 70 MHz.
  • 4 channels.
  • Real-time sample rate: 1 GSa/s.
  • Memory depth: 12 Mpts.
  • Innovative UltraVision technology.
  • Waveform acquisition rate up to 30,000 wfms/s.
  • Low noise floor, dynamic Range: 1mV/div to 10V/div
  • 7-inch color LCD.
  • Standard interface: LAN, USB host and device, AUX, USB-GPIB (opt.)
  • Compact design, small dimensions, light weight.

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Technical Specifications

Bandwidth 70 MHz
Channels 4
Real time sample rate 1 GSa/s (single-channel), 500 MSa/s (dual-channel), 250 MSa/s (full-channel)
Memory depth 12 Mpts, 24 Mpts (opt.)
Waveform acquisition rate 30,000 wfms/s (Max. )
Vertical sensitivity range 1 mV/div - 10 V/div
Offset range 1 mV/div to 499 mV/div: ± 2 V
500 mV/div to 10 V/div: ± 100 V
Vertical resolution 8 bit
Math Add, Subtract, Multiply, Divide, FFT, editable
Output voltage ~ 3 V, peak-peak
Frequency 1 kHz
General Specifications
Power 50 W (max.)
Power voltage 100-240 V, 45-440 Hz
Temperature range Operation: 0°C to +50°C
Non-operation: -20°C to +70°C
Cooling method Fan
Display 7" color LCD (800×480)
Weight 3.8 kg (± 0.5 kg)
Dimensions 313.1 × 160.8 × 122.4 mm

Additional Information

Download RIGOL DS1074Z Data Sheet.

Download RIGOL DS1074Z User Manual.

Package Contents

  • RIGOL DS1074Z digital oscilloscope (1 pc.)
  • Passive probes (4 pcs.)
  • Power cable (1 pc.)
  • USB data cable (1 pc.)
Specifications
Screen Size
  • 7.0" TFT display
Number of channels
  • 4-channel
Type
  • desktop
Sample Rate
  • 1 GS/s
Bandwidth
  • 70 MHz
Storage Capacity
  • 12 MB
