Digital Oscilloscope RIGOL DS1104Z

id: 844219

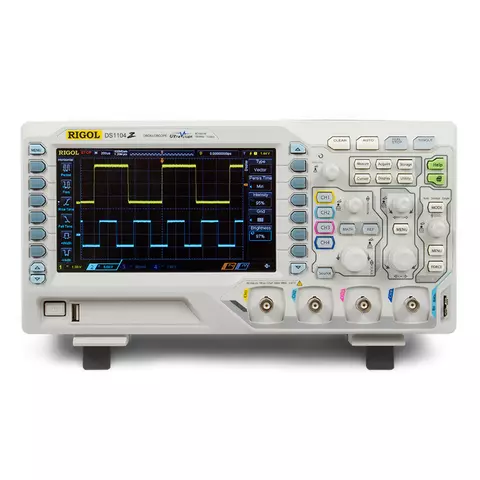

Digital Oscilloscope RIGOL DS1104Z
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
Discontinued
Contact
sales team
Overview
Rate product
7.1 kg 110, 220 V Warranty: 36 months
Four-channel digital oscilloscope with 100 MHz bandwidth, 1 GSa/s real-time sample rate, 7" display and up to 30,000 waveforms/sec capture rate. Read more
Discontinued
Contact
sales team
Compare
Compare
Discontinued
Contact
sales team
Impossible to estimate the shipping cost

You may also like

Digital Oscilloscope RIGOL DS1104Z Plus
Bestseller
Add to wishlist
ID: 869163
Digital Oscilloscope RIGOL DS1104Z Plus
USD 563.81
USD 473.60
Add to wishlist
Add to cart
4 analog channels, 16 digital channels (upgradable), 100 MHz bandwidth, 1 GSa/s (8-channel), 500 MSa/s (16-channel) real-time sample rate, 7" display and up to 30,000 waveforms/sec capture rate.
Availability in stock: HK
Shipping cost
ID: 869163 6 kg 110, 220
4-channel phosphor oscilloscope with 100 MHz bandwidth, 1 GSa/s real-time sample rate, 14 MB memory, 7.0" display and up to 400,000 waveforms/sec capture rate.
Availability in stock: HK
Shipping cost
ID: 874773 6 kg
Description

RIGOL DS1104Z digital oscilloscope is the new economic level four-channel oscilloscope (100 MHz). This compact lightweight digital oscilloscope provides exceptionally accurate waveform viewing and measurements. RIGOL DS1104Z provides up to 30 000 wfms/s waveform acquisition rate.

RIGOL DS1104Z digital oscilloscope is perfect for production tests, field service, research, design and all other applications involving analog/digital circuit tests and troubleshooting, as well as education and training.

Features

  • Bandwidth: 100 MHz.
  • 4 channels.
  • Real-time sample rate: 1 GSa/s.
  • Memory depth: 12 Mpts.
  • Innovative UltraVision technology.
  • Waveform acquisition rate up to 30,000 wfms/s.
  • Low noise floor, dynamic Range: 1mV/div to 10V/div
  • 7-inch color LCD.
  • Standard interface: LAN, USB host and device, AUX, USB-GPIB (opt.)
  • Compact design, small dimensions, light weight.

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Technical Specifications

Bandwidth 100 MHz
Channels 4
Real time sample rate 1 GSa/s (single-channel), 500 MSa/s (dual-channel), 250 MSa/s (full-channel)
Memory depth 12 Mpts, 24 Mpts (opt.)
Waveform acquisition rate 30,000 wfms/s (Max. )
Vertical sensitivity range 1 mV/div - 10 V/div
Offset range 1 mV/div to 499 mV/div: ± 2 V
500 mV/div to 10 V/div: ± 100 V
Vertical resolution 8 bit
Math Add, Subtract, Multiply, Divide, FFT, editable
Output voltage ~ 3 V, peak-peak
Frequency 1 kHz
General Specifications
Power 50 W (max.)
Power voltage 100-240 V, 45-440 Hz
Temperature range Operation: 0°C to +50°C
Non-operation: -20°C to +70°C
Cooling method Fan
Display 7" color LCD (800×480)
Weight 3.8 kg (± 0.5 kg)
Dimensions 313.1 × 160.8 × 122.4 mm

Additional Information

Download RIGOL DS1104Z Data Sheet.

Download RIGOL DS1104Z User Manual.

Package Contents

  • RIGOL DS1104Z digital oscilloscope (1 pc.)
  • Passive probes (4 pcs.)
  • Power cable (1 pc.)
  • USB data cable (1 pc.)
Specifications
Screen Size
  • 7.0" TFT display
Number of channels
  • 4-channel
Bandwidth
  • 100 MHz
Type
  • desktop
Sample Rate
  • 1 GS/s
Storage Capacity
  • 12 MB
