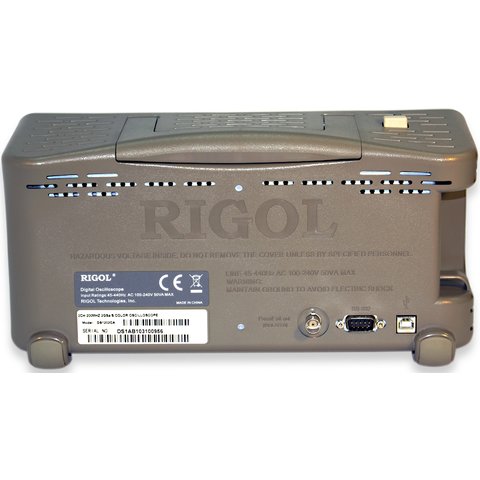

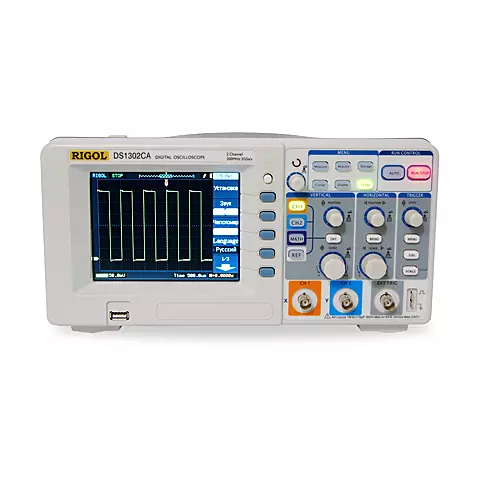

Digital Oscilloscope RIGOL DS1302CA

Features

• The 2 GSa/s maximum real-time sample rate, the 50 GSa/s maximum equivalent time sample rate
• Up to 300 MHz of bandwidth ensures you capture and observe your entire signal
• Up to 2000 wfms/s refresh rate
• Ultra Compact Design with small footprint save your bench space
• 5.7’ 64K TFT color LCD, bright and vivid waveform display
• Memory depth: 10 kpts (Single Channel), 5 kpts (Dual Channels)
• Versatile trigger modes: Edge, Video, Pulse Width,Slope, Alternate
• Adjustable trigger sensitivity: Effectively filter noise from trigger signal and avoid false trigger 8. 20 automatic measurements
• Cursor measurements: Manual, Track and Auto Measure modes
• 10 waveforms, 10 setups, BMP and CSV storage
• Math functions: Add, Subtract, Multiply, FFT, Invert
• Special digital filter and waveform recorder
• Built-in hardware frequency counters
• Dual channels plus external trigger.
• Standard interface: USB Device, RS-232;USB Host, to support USB disk and USB printer
• Standard configuration: Pass/Fail test,the signal out of the pass fail function is isolated to prevent unwanted interference
• Multi-language user interface, built-in help system

RIGOL DS1000CA SERIES

The DS1000CA series can be directly connected with the Rigol DG series function/arbitrary waveform generators. When connected with the built-in USB port of DS1000CA, the DG series function/arbitrary waveform can regenerate waveforms by visiting waveform memories of the latter's.

SPECIFICATIONS

VERSATILE TRIGGER MODES OF RIGOL DS1000A SERIES

Adjustable Trigger Sensitivity The ability to filter noise from the signal avoids false triggers	Alternative Trigger Provides a true dual time base display that was common in analog oscilloscopes	Slope Trigger Triggers on the signals rise time or fall time that is user defined	Rise Edge and Fall Edge Trigger Mainly used to view eye-diagrams formally only available in more advanced DSO’s

COMMON PARAMETERS FOR RIGOL DS1000A SEREIS

Vertical Sensitivity	2 mV/div to 10 V/div
Vertical Resolution	8 bits
Input Coupling	DC, AC, Ground
Maximum Input Voltage	300 V (DC + AC peak)
Roll Range	500 ms/div to 50 s/div
Automatic Measurements	Vpp, Vamp, Vmax, Vmin, Vtop, Vbase, Vavg, Vrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall time, Positive Width, Negative Width, Positive Duty Cycle, Negative Duty Cycle, Delay1>2, Delay 1> 2
Cursor Measurements	Manual, Track and Auto Measure modes
Math	Add, Subtract, Multiply, FFT, Invert
Storage	Internal:10 Waveforms and Setups
	USB:BMP, CSV, Waveforms and Setups
I/O	USB Device,USB Host,RS-232,P/F Out (Isolated)
Display	TFT (64K, Color LCD), 320 x 234
Power	Worldwide Use, 100 – 240 V / 50 VA Max
Weight	2.3 kg

STANDARD ACCESSORIES

Power Cord	USB Data wire	Probe × 2	User Manual
