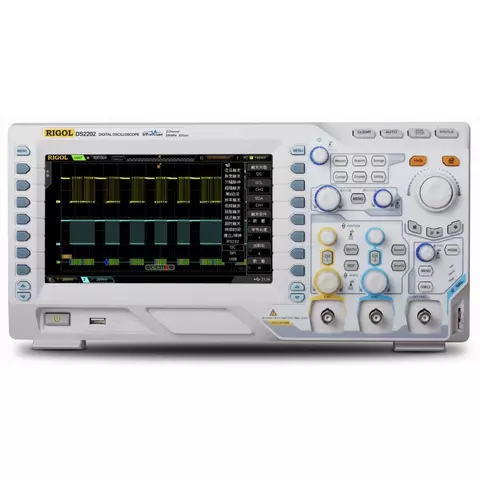

RIGOL DS2072 digital oscilloscope is a new generation high-quality dual-channel oscilloscope (70 MHz). This compact lightweight digital oscilloscope provides exceptionally accurate waveform viewing and measurements. RIGOL DS2072 provides up to 50 000 wfms/s waveform acquisition rate.

RIGOL DS2072 digital oscilloscope is perfect for production tests, field service, research, design and all other applications involving analog/digital circuit tests and troubleshooting, as well as education and training.

RIGOL DS2072 Digital Oscilloscope Features

  • Bandwidth: 70 MHz.
  • 2 channels.
  • Real-time sample rate: 2 GSa/s.
  • Memory depth: 14 Mpts.
  • Innovative UltraVision technology.
  • Vertical sensitivity: 500 μV/div – 10 V/div.
  • Waveform acquisition rate up to 50,000 wfms/s.
  • Math functions: Add, Subtract, Multiply, FFT.
  • 8-inch color LCD.
  • Standard interface: USB Host & Device, LAN, AUX.
  • The recommended calibration interval period is one year.
  • Real-time waveform recording, waveform playback, and waveform analysis.
  • Compact design, small dimensions, light weight.

RIGOL DS2072 Digital Oscilloscope User Manual

Download RIGOL DS2072 Digital Oscilloscope User Guide.

RIGOL DS2072 Digital Oscilloscope Technical Specifications

Bandwidth 70 MHz
Channels 2
Real time sample rate 2 GSa/s (single-channel), 1 GSa/s (dual-channel)
Memory depth 14 Mpts (Std.), 56 Mpts (Opt.)
Waveform acquisition rate 50,000 wfms/s (Max. )
Vertical sensitivity range 500 μV/div – 10 V/div
Offset range 500 μV/div – 50 mV/div (± 2 V)
51 mV/div – 200 mV/div (± 10 V)
205 mV/div – 2 V/div (± 50 V)
2.05 V/div – 10 V/div (± 100 V)
Vertical resolution 8 bits
Math Add, Subtract, Multiply, FFT, editable
Output voltage ~ 3 V, peak-peak
Frequency 1 kHz
General Specifications
Trigger modes Auto, Normal, Single
Power 50 W (max.)
Power voltage 100-240 V, 45-440 Hz
Temperature range Operation: 0°C to +50°C
Non-operation: -20°C to +70°C
Cooling method Fan
Humidity range Under +35°C: ≤90% relative humidity
+35°C to +50°C: ≤60% relative humidity
Altitude Operation: under 3,000 meters
Non-operation: under 15,000 meters
Display 8" WVGA color LCD (800×480)
Weight 3.9 kg (± 0.2 kg)
Dimensions 361.6 × 179.6 × 130.8 mm

RIGOL DS2072 Digital Oscilloscope Supported Probes

  • Oscilloscope Probe RIGOL RP2200
  • Oscilloscope Probe RIGOL RP3300
  • Oscilloscope Probe RIGOL RP3500
  • Oscilloscope Probe RIGOL RP1300H
  • Oscilloscope Probe RIGOL RP1050H

RIGOL DS2072 Digital Oscilloscope Package Contents

  • RIGOL DS2072 digital oscilloscope (1 pc.)
  • Passive probes (2 pcs.)
  • Power cable (1 pc.)
  • USB data cable (1 pc.)
  • Quick guide (1 pc.)
  • CD (Software and User's guide) (1 pc.)
