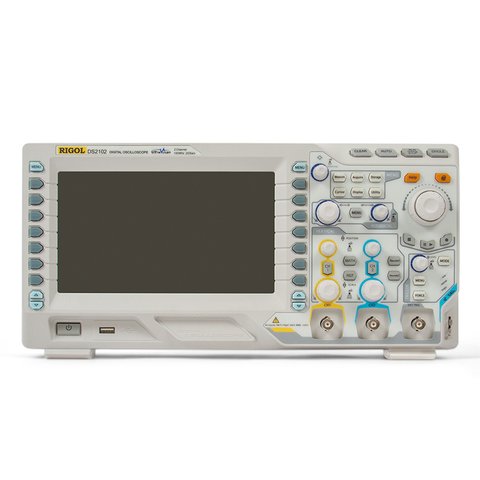

Digital Oscilloscope RIGOL DS2102

id: 836449
Digital Oscilloscope RIGOL DS2102
Overview
Description
Specifications
Delivery
Payment
Warranty
Discontinued
Find substitute
Overview
9 kg 110, 220 V Warranty: 36 months
Dual-channel digital oscilloscope with 100 MHz bandwidth, 2 GSa/s real-time sample rate, 8" display and 50,000 waveforms/sec acquisition.
Discontinued
Find substitute
Compare
Compare
Discontinued
Find substitute
Impossible to estimate the shipping cost

You may also like

Digital Oscilloscope RIGOL DS2102A
Bestseller
Add to wishlist
Digital Oscilloscope RIGOL DS2102A
USD 629.00
USD 566.10
Add to wishlist
Add to cart
Dual-channel digital oscilloscope with 100 MHz bandwidth, 2 GSa/s real-time sample rate, 8" display and 50,000 waveforms/sec acquisition.
Bestseller
Availability in stock: HK
Shipping cost
ID: 845096 7.5 kg 110, 220
Description

RIGOL DS2102 digital oscilloscope is a new generation high-quality dual-channel oscilloscope (100 MHz). This compact lightweight digital oscilloscope provides exceptionally accurate waveform viewing and measurements. RIGOL DS2102 provides up to 50 000 wfms/s waveform acquisition rate.

RIGOL DS2102 digital oscilloscope is ideal for production tests, field service, research, design and all other applications involving analog/digital circuit tests and troubleshooting, as well as education and training.

RIGOL DS2102 Digital Oscilloscope Features

  • Bandwidth: 100 MHz.
  • 2 channels.
  • Real-time sample rate: 2 GSa/s.
  • Memory depth: 14 Mpts.
  • Innovative UltraVision technology.
  • Vertical sensitivity: 500 μV/div – 10 V/div.
  • Waveform acquisition rate up to 50,000 wfms/s.
  • Math functions: Add, Subtract, Multiply, FFT.
  • 8-inch color LCD.
  • Standard interface: USB Host & Device, LAN, AUX.
  • The recommended calibration interval period is one year.
  • Real-time waveform recording, waveform playback, and waveform analysis.
  • Compact design, small dimensions, light weight.

RIGOL DS2102 Digital Oscilloscope User Manual

Download RIGOL DS2102 Digital Oscilloscope User Guide.

RIGOL DS2102 Digital Oscilloscope Technical Specifications

Bandwidth 100 MHz
Channels 2
Real time sample rate 2 GSa/s (single-channel), 1 GSa/s (dual-channel)
Memory depth 14 Mpts (Std.), 56 Mpts (Opt.)
Waveform acquisition rate 50,000 wfms/s (Max. )
Vertical sensitivity range 500 μV/div – 10 V/div
Offset range 500 μV/div – 50 mV/div (± 2 V)
51 mV/div – 200 mV/div (± 10 V)
205 mV/div – 2 V/div (± 50 V)
2.05 V/div – 10 V/div (± 100 V)
Vertical resolution 8 bits
Math Add, Subtract, Multiply, FFT, editable
Output voltage ~ 3 V, peak-peak
Frequency 1 kHz
General Specifications
Trigger modes Auto, Normal, Single
Power 50 W (max.)
Power voltage 100-240 V, 45-440 Hz
Temperature range Operation: 0°C to +50°C
Non-operation: -20°C to +70°C
Cooling method Fan
Humidity range Under +35°C: ≤90% relative humidity
+35°C to +50°C: ≤60% relative humidity
Altitude Operation: under 3,000 meters
Non-operation: under 15,000 meters
Display 8" WVGA color LCD (800×480)
Weight 3.9 kg (± 0.2 kg)
Dimensions 361.6 × 179.6 × 130.8 mm

RIGOL DS2102 Digital Oscilloscope Supported Probes

  • Oscilloscope Probe RIGOL RP2200
  • Oscilloscope Probe RIGOL RP3300
  • Oscilloscope Probe RIGOL RP3500
  • Oscilloscope Probe RIGOL RP1300H
  • Oscilloscope Probe RIGOL RP1050H

RIGOL DS2102 Digital Oscilloscope Package Contents

  • RIGOL DS2102 digital oscilloscope (1 pc.)
  • Passive probes (2 pcs.)
  • Power cable (1 pc.)
  • USB data cable (1 pc.)
  • Quick guide (1 pc.)
  • CD (Software and User's guide) (1 pc.)
Read more
Description

RIGOL DS2102 digital oscilloscope is a new generation high-quality dual-channel oscilloscope (100 MHz). This compact lightweight digital oscilloscope provides exceptionally accurate waveform viewing and measurements. RIGOL DS2102 provides up to 50 000 wfms/s waveform acquisition rate.

RIGOL DS2102 digital oscilloscope is ideal for production tests, field service, research, design and all other applications involving analog/digital circuit tests and troubleshooting, as well as education and training.

RIGOL DS2102 Digital Oscilloscope Features

  • Bandwidth: 100 MHz.
  • 2 channels.
  • Real-time sample rate: 2 GSa/s.
  • Memory depth: 14 Mpts.
  • Innovative UltraVision technology.
  • Vertical sensitivity: 500 μV/div – 10 V/div.
  • Waveform acquisition rate up to 50,000 wfms/s.
  • Math functions: Add, Subtract, Multiply, FFT.
  • 8-inch color LCD.
  • Standard interface: USB Host & Device, LAN, AUX.
  • The recommended calibration interval period is one year.
  • Real-time waveform recording, waveform playback, and waveform analysis.
  • Compact design, small dimensions, light weight.

RIGOL DS2102 Digital Oscilloscope User Manual

Download RIGOL DS2102 Digital Oscilloscope User Guide.

RIGOL DS2102 Digital Oscilloscope Technical Specifications

Bandwidth 100 MHz
Channels 2
Real time sample rate 2 GSa/s (single-channel), 1 GSa/s (dual-channel)
Memory depth 14 Mpts (Std.), 56 Mpts (Opt.)
Waveform acquisition rate 50,000 wfms/s (Max. )
Vertical sensitivity range 500 μV/div – 10 V/div
Offset range 500 μV/div – 50 mV/div (± 2 V)
51 mV/div – 200 mV/div (± 10 V)
205 mV/div – 2 V/div (± 50 V)
2.05 V/div – 10 V/div (± 100 V)
Vertical resolution 8 bits
Math Add, Subtract, Multiply, FFT, editable
Output voltage ~ 3 V, peak-peak
Frequency 1 kHz
General Specifications
Trigger modes Auto, Normal, Single
Power 50 W (max.)
Power voltage 100-240 V, 45-440 Hz
Temperature range Operation: 0°C to +50°C
Non-operation: -20°C to +70°C
Cooling method Fan
Humidity range Under +35°C: ≤90% relative humidity
+35°C to +50°C: ≤60% relative humidity
Altitude Operation: under 3,000 meters
Non-operation: under 15,000 meters
Display 8" WVGA color LCD (800×480)
Weight 3.9 kg (± 0.2 kg)
Dimensions 361.6 × 179.6 × 130.8 mm

RIGOL DS2102 Digital Oscilloscope Supported Probes

  • Oscilloscope Probe RIGOL RP2200
  • Oscilloscope Probe RIGOL RP3300
  • Oscilloscope Probe RIGOL RP3500
  • Oscilloscope Probe RIGOL RP1300H
  • Oscilloscope Probe RIGOL RP1050H

RIGOL DS2102 Digital Oscilloscope Package Contents

  • RIGOL DS2102 digital oscilloscope (1 pc.)
  • Passive probes (2 pcs.)
  • Power cable (1 pc.)
  • USB data cable (1 pc.)
  • Quick guide (1 pc.)
  • CD (Software and User's guide) (1 pc.)
Specifications
Number of channels
  • dual-channel
Bandwidth
  • 100 MHz
Type
  • desktop
Sample Rate
  • 2 GS/s
Screen Size
  • 8,0" TFT LCD
Storage Capacity
  • 14 MB
