Digital Oscilloscope RIGOL DS2102A
id: 845096
Digital Oscilloscope RIGOL DS2102A
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
USD 629.00
Overview
Video
Video
Video
Video
7.5 kg 110, 220 V Warranty: 36 months
Dual-channel digital oscilloscope with 100 MHz bandwidth, 2 GSa/s real-time sample rate, 8" display and 50,000 waveforms/sec acquisition. Read more
Buy wholesale and save
Description

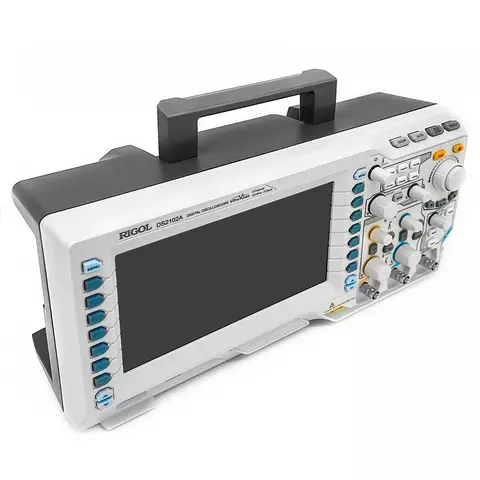

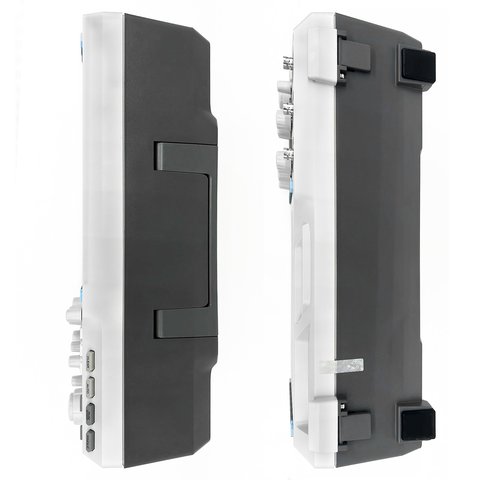

RIGOL DS2102A digital oscilloscope is a new high-quality dual-channel oscilloscope (100 MHz). This compact lightweight digital oscilloscope provides exceptionally accurate waveform viewing and measurements. RIGOL DS2102A provides up to 50 000 wfms/s waveform acquisition rate.
RIGOL DS2102A digital oscilloscope is ideal for production tests, field service, research, design and all other applications involving analog/digital circuit tests and troubleshooting, as well as education and training.
Features
- Bandwidth: 100 MHz.
- 2 channels.
- Real-time sample rate: 2 GSa/s.
- Memory depth: 14 Mpts.
- Innovative UltraVision technology.
- Vertical sensitivity: 500 μV/div – 10 V/div.
- Waveform acquisition rate up to 50,000 wfms/s.
- Math functions: Add, Subtract, Multiply, FFT.
- 8-inch color LCD.
- Standard interface: USB host & device, LAN, AUX.
- The recommended calibration interval period is one year.
- Real-time waveform recording, waveform playback, and waveform analysis.
- Compact design, small dimensions, light weight.
Technical Specifications
| Bandwidth | 100 MHz |
| Channels | 2 |
| Real time sample rate | 2 GSa/s (single-channel), 1 GSa/s (dual-channel) |
| Memory depth | 14 Mpts (Std.), 56 Mpts (Opt.) |
| Waveform acquisition rate | 50,000 wfms/s (Max. ) |
| Vertical sensitivity range | 500 μV/div – 10 V/div |
| Offset range | 500 μV/div – 50 mV/div (± 2 V) 51 mV/div – 200 mV/div (± 10 V) 205 mV/div – 2 V/div (± 50 V) 2.05 V/div – 10 V/div (± 100 V) |
| Vertical resolution | 8 bits |
| Math | Add, Subtract, Multiply, FFT, editable |
| Output voltage | ~ 3 V, peak-peak |
| Frequency | 1 kHz |
| General Specifications | |
|---|---|
| Trigger modes | Auto, Normal, Single |
| Power | 50 W (max.) |
| Power voltage | 100-240 V, 45-440 Hz |
| Temperature range | Operation: 0°C to +50°C Non-operation: -20°C to +70°C |

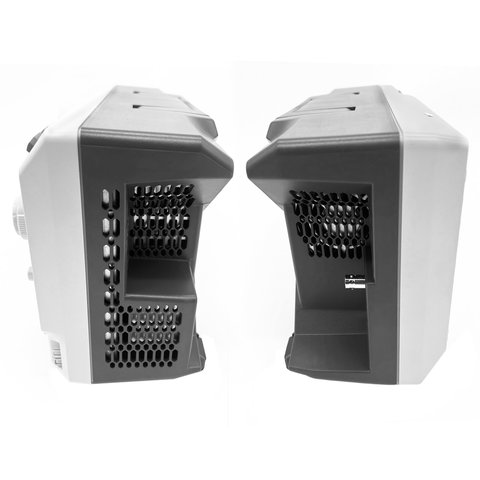

| Cooling method | Fan |

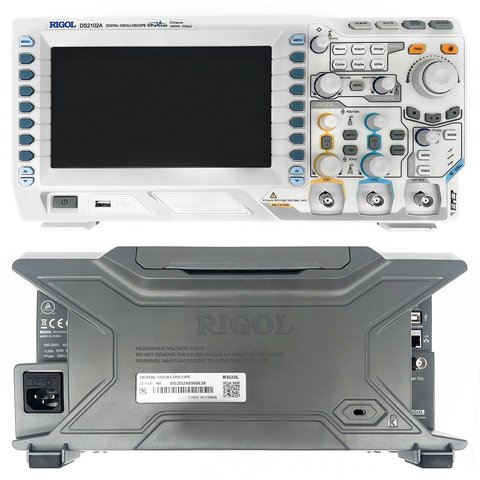

| Standard Ports | USB host (support USB-GPIB), USB device, LAN, Aux (TrigOut/PassFail) |
| Display | 8" WVGA color LCD (800×480) |
| Weight | 3.9 kg (± 0.2 kg) |
| Dimensions | 361.6 × 179.6 × 130.8 mm |
Video
You'll find even more video reviews in the Video tab. Go and check it out!

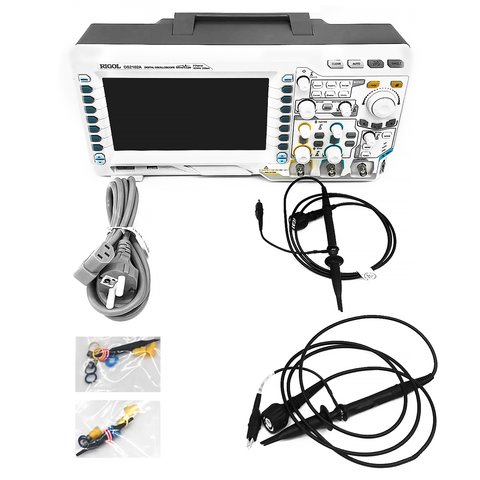

Package Contents
- RIGOL DS2102A digital oscilloscope (1 pc.)

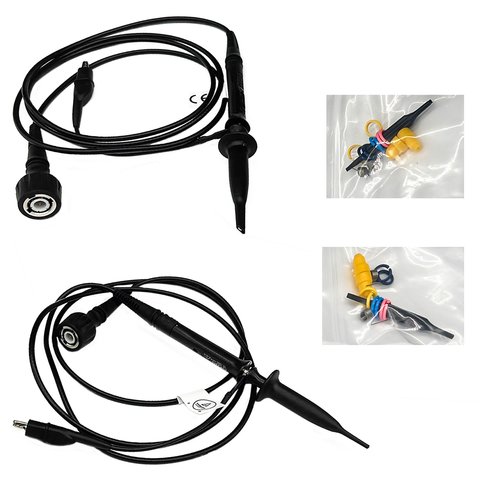

- Passive probes (2 pcs.)

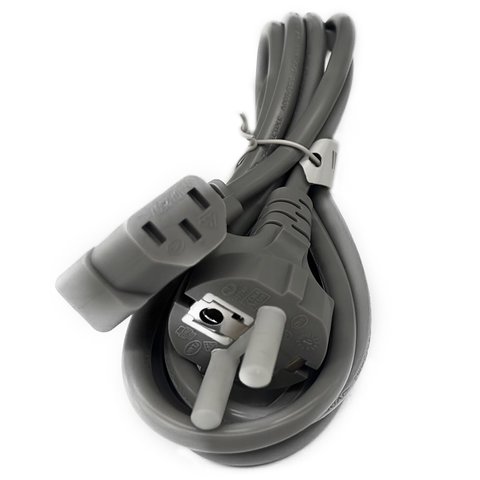

- Power cable (1 pc.)
- USB data cable (1 pc.)
