Digital Oscilloscope RIGOL DS2202A-S

id: 845101
Digital Oscilloscope RIGOL DS2202A-S
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
Discontinued
Contact
sales team
Overview
Rate product
7 kg 110, 220 V Warranty: 36 months
Dual-channel digital oscilloscope with 200 MHz bandwidth, 2 GSa/s real-time sample rate, built-in dual-channel signal genetaror, 8" display and 50,000 waveforms/sec acquisition. Read more
Discontinued
Contact
sales team
Compare
Compare
Discontinued
Contact
sales team
Impossible to estimate the shipping cost
Description

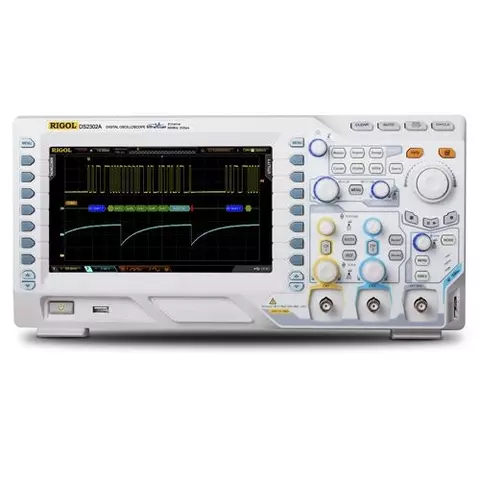

RIGOL DS2202A-S digital oscilloscope is a new high-quality dual-channel oscilloscope (200 MHz) with built-in 2-channel signal generator. This compact lightweight digital oscilloscope provides exceptionally accurate waveform viewing and measurements. RIGOL DS2202A-S provides up to 50 000 wfms/s waveform acquisition rate.

RIGOL DS2202A-S digital oscilloscope is ideal for production tests, field service, research, design and all other applications involving analog/digital circuit tests and troubleshooting, as well as education and training.

Features

  • Bandwidth: 200 MHz.
  • 2 channels.
  • Real-time sample rate: 2 GSa/s.
  • Memory depth: 14 Mpts.
  • Built-in 2-channel signal generator.
  • Innovative UltraVision technology.
  • Vertical sensitivity: 500 μV/div – 10 V/div.
  • Waveform acquisition rate up to 50,000 wfms/s.
  • Math functions: Add, Subtract, Multiply, FFT.
  • 8-inch color LCD.
  • Standard interface: USB host & device, LAN, AUX.
  • The recommended calibration interval period is one year.
  • Real-time waveform recording, waveform playback, and waveform analysis.
  • Compact design, small dimensions, light weight.

Technical Specifications

Bandwidth 200 MHz
Channels 2
Real time sample rate 2 GSa/s (single-channel), 1 GSa/s (dual-channel)
Memory depth 14 Mpts (Std.), 56 Mpts (Opt.)
Waveform acquisition rate 50,000 wfms/s (Max. )
Vertical sensitivity range 500 μV/div – 10 V/div
Offset range 500 μV/div – 50 mV/div (± 2 V)
51 mV/div – 200 mV/div (± 10 V)
205 mV/div – 2 V/div (± 50 V)
2.05 V/div – 10 V/div (± 100 V)
Vertical resolution 8 bits
Math Add, Subtract, Multiply, FFT, editable
Output voltage ~ 3 V, peak-peak
Frequency 1 kHz
General Specifications
Trigger modes Auto, Normal, Single
Power 50 W (max.)
Power voltage 100-240 V, 45-440 Hz
Temperature range Operation: 0°C to +50°C
Non-operation: -20°C to +70°C
Cooling method Fan
Standard Ports USB host (support USB-GPIB), USB device, LAN, Aux (TrigOut/PassFail)
Display 8" WVGA color LCD (800×480)
Weight 3.9 kg (± 0.2 kg)
Dimensions 361.6 × 179.6 × 130.8 mm

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Package Contents

  • RIGOL DS2202A-S digital oscilloscope (1 pc.)
  • Passive probes (2 pcs.)
  • Power cable (1 pc.)
  • USB data cable (1 pc.)
Specifications
Number of channels
  • dual-channel
Bandwidth
  • 200 MHz
Type
  • desktop
  • with built-in generator
Sample Rate
  • 2 GS/s
Screen Size
  • 8,0" TFT LCD
Storage Capacity
  • 14 MB
Video
Youtube video
Youtube video
Youtube video
Youtube video
