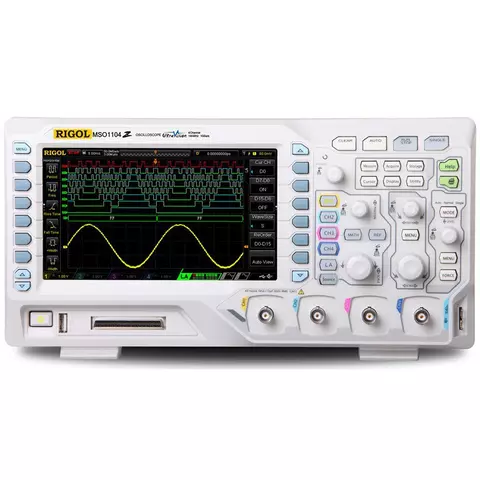

Digital Oscilloscope RIGOL MSO1104Z

id: 855896
7.5 kg 110, 220 V Warranty: 36 month (s)
Mixed signal oscilloscope with 16 digital channels, 4 analog channels, 100 MHz bandwidth, 1 GSa/s (8-channel), 500 MSa/s (16-channel) real-time sample rate, 7" display and up to 30,000 waveforms/sec capture rate.
Discontinued
Contact
sales team
Discontinued
Contact
sales team
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Substitution
Delivery
Payment
Warranty
Overview

RIGOL MSO1104Z is the new economic level four-channel mixed signal oscilloscope with 16 digital channels. This compact lightweight digital oscilloscope provides exceptionally accurate waveform viewing and measurements. RIGOL MSO1104Z provides up to 30 000 wfms/s waveform acquisition rate.

RIGOL MSO1104Z digital oscilloscope is perfect for production tests, field service, research, design and all other applications involving analog/digital circuit tests and troubleshooting, as well as education and training.

Features

  • Bandwidth: 100 MHz.
  • 4 analog + 16 digital channels.
  • Real-time sample rate: up to 1 GSa/s.
  • Memory depth: 12 Mpts.
  • Innovative UltraVision technology.
  • Waveform acquisition rate up to 30,000 wfms/s.
  • Low noise floor, dynamic Range: 1mV/div to 10V/div
  • 7-inch color LCD.
  • Standard interface: LAN, USB host and device, AUX, USB-GPIB (opt.)
  • Compact design, small dimensions, light weight.

Technical Specifications

Bandwidth 100 MHz
Channels 4 + 16
Real time sample rate 1 GSa/s (single-channel), 500 MSa/s (dual-channel), 250 MSa/s (full-channel)
Memory depth 12 Mpts, 24 Mpts (opt.)
Waveform acquisition rate 30,000 wfms/s (Max. )
Vertical sensitivity range 1 mV/div - 10 V/div
Offset range 1 mV/div to 499 mV/div: ± 2 V
500 mV/div to 10 V/div: ± 100 V
Vertical resolution 8 bit
Math Add, Subtract, Multiply, Divide, FFT, editable
Output voltage ~ 3 V, peak-peak
Frequency 1 kHz
General Specifications
Power 50 W (max.)
Power voltage 100-240 V, 45-440 Hz
Temperature range Operation: 0°C to +50°C
Non-operation: -20°C to +70°C
Cooling method Fan
Display 7" color LCD (800×480)
Weight 3.8 kg (± 0.5 kg)
Dimensions 313.1 × 160.8 × 122.4 mm

Additional Information

Download RIGOL MSO1104Z Data Sheet.

Download RIGOL MSO1104Z User Guide.

Video

Youtube video

Youtube video

Youtube video

Youtube video

Package Contents

  • RIGOL MSO1104Z digital oscilloscope (1 pc.)
  • Passive probes (4 pcs.)
  • Power cable (1 pc.)
  • USB data cable (1 pc.)
Specifications
Screen Size
  • 7.0" TFT display
Number of channels
  • 4-channel
  • with 16 channel logic analyzer
Bandwidth
  • 100 MHz
Type
  • desktop
  • mixed-signal
Sample Rate
  • 1 GS/s
Storage Capacity
  • 12 MB
