Digital Oscilloscope RIGOL MSO5074

id: 886031
7 kg Warranty: 36 month (s)
4-channel mixed signal oscilloscope with 16 digital channels. 70 MHz bandwidth, 8 GSa/s real-time sample rate, 9" display, 200 Mpts memory depth and up to 500 000 waveforms/sec capture rate.
USD 1249.00
Notify
when in stock
USD 1249.00
Notify
when in stock
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Delivery
Payment
Warranty
Overview

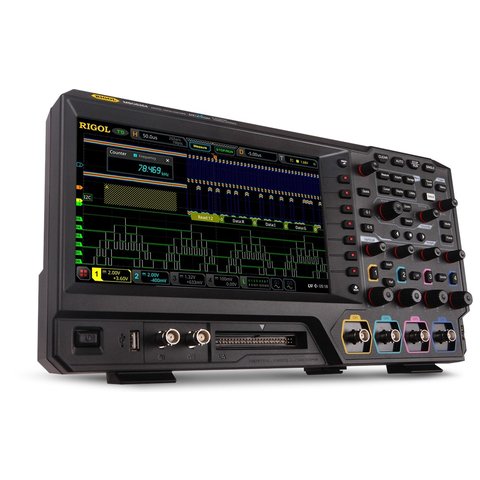

RIGOL MSO5074 – four-channel mixed signal oscilloscope (70 MHz) with 16 logic channels. This compact lightweight digital oscilloscope provides exceptionally accurate waveform viewing and measurements. The MSO5000 series digital oscilloscope integrates 7 independent instruments into 1, including one digital oscilloscope, one spectrum analyzer, one 16-channel logic analyzer, one arbitrary waveform generator, one digital voltmeter, one high-precision frequency counter and accumulator, and one protocol analyzer.

RIGOL MSO5074 provides the waveform acquisition rate up to 500.000 waveforms per second, which ensures a more rapid capturing of instantaneous or abnormal signals for accelerating signal analysis and fault tracing. Convenient 9-inch color liquid-crystal touch display of the oscilloscope ensures bright and sharp waveform representation.

RIGOL MSO5074 digital oscilloscope is ideal for production tests, field service, research, design and all other applications involving analog/digital circuit tests and troubleshooting, as well as education and training.

Features

  • Auto measurement of 41 waveform parameters; full-memory hardware measurement function
  • Multiple serial protocol triggers and decodes
  • Up to 450,000 frames of hardware real-time and ceaseless waveforms recording and playback functions
  • Analog Bandwidth: 70 MHz.
  • 4 analog + 16 input digital channels (PLA2216 probe required)
  • Max. Sample Rate of Analog Channel: 8 GSa/s (single-channel), 2 GSa/s (all channels)
  • Max. Memory Depth: 200 Mpts.
  • UltraVision II Technology.
  • 9" capacitive multi-touch screen/gesture enabled operation.
  • Web Control remote command
  • Novel and delicate industrial design, easy to operate

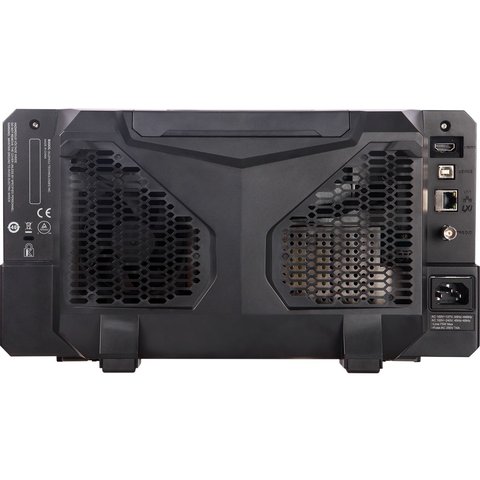

  • Multiple interfaces available: USB HOST&DEVICE, LAN(LXI), HDMI, TRIG OUT, and USB-GPIB
  • HDMI output for connecting external displays or projectors.
  • Advanced power analysis software (option).

Technical Specifications

  MSO5072 MSO5074 MSO5102 MSO5104 MSO5204 MSO5354
Analog Bandwidth 70 MHz 70 MHz 100 MHz 100 MHz 200 MHz 350 MHz
Channels 2 analog 4 analog 2 analog 4 analog 4 analog 4 analog
16 input digital channels (PLA2216 probe required)
Max. Sample Rate of Analog Channel 8 GSa/s (single-channel), 2 GSa/s (all channels)
Max. Memory Depth Analog channel: 200 Mpts (single-channel), 100 Mpts (half-channel, 50 Mpts (all channels)
Digital channel: 25 Mpts (all channels)
Max. Waveform Capture Rate ≥500,000 wfms/s
Rise time ≤5 ns ≤5 ns ≤3,5 ns ≤3,5 ns ≤1,75 ns ≤1 ns
Math A+B, A-B, A×B, A/B, FFT, A&&B, A||B, A^B, !A, Intg, Diff, Sqrt, Lg, Ln, Exp, Abs, AX+B, LowPass, HighPass, BandPass, BandStop
Display 9" capacitive multi-touch screen, 1024×600
Weight <3.5 kg (Package Excluded)
Dimensions (w × h × d) 14.45 x 7.87 x 5.12" (367 x 200 x 130 mm)

Video

Youtube video

Youtube video

Youtube video

Youtube video

Data Sheet

PDF  Download RIGOL MSO5074 Digital Oscilloscope Data Sheet.

Package Contents

  • RIGOL MSO5074 Digital Oscilloscope — 1 pc.
  • Power Cord — 1 pc.
  • USB Cable — 1 pc.
  • Passive Probes — 4 pcs.

Additional accessories and software

@@{widget:product.productsTable|ids=886037,886046,886064,886041,886045,886044,886042,886038,886039,886043,886065,886066,886067,886068,886069,886070,886040}@@
Specifications
Number of channels
  • 4-channel
Type
  • desktop
  • mixed-signal
  • touch
  • phosphor
Bandwidth
  • 70 MHz
Screen Size
  • 9,0" TFT LCD
Storage Capacity
  • 100 MB
Sample Rate
  • 8 Гвыб/с
