Digital Oscilloscope RIGOL MSO7034
Overview
Description

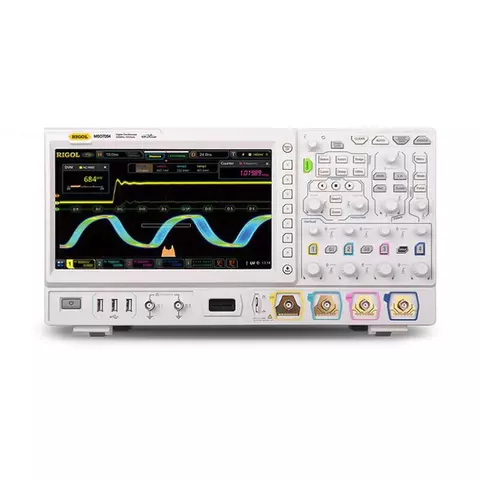

RIGOL MSO7034 is a four-channel mixed signal digital oscilloscope with a bandwidth of 350 MHz and a maximum sampling rate of 10 GSa/s. It integrates an oscilloscope, a 16-channel logic analyzer, a dual channel arbitrary waveform generator, a digital voltmeter, a counter and totalizer, and a protocol analyzer.
This compact lightweight digital oscilloscope provides exceptionally accurate waveform viewing and measurements. RIGOL MSO7034 provides up to 600 000 wfms/s waveform acquisition rate.
RIGOL MSO7034 digital oscilloscope is perfect for production tests, field service, research, design and all other applications involving analog/digital circuit tests and troubleshooting, as well as education and training.
Features
- Bandwidth: 350 MHz.
- 4 channels.
- Real-time sample rate: 10 GSa/s.
- Memory depth: 100 Mpts.
- Innovative UltraVision technology.
- 10.1-inch color LCD.
- Vertical sensitivity range: 1 mV/div - 10 V/div.
- Compact design, small dimensions, light weight.
- Remote control.
Technical Specifications
Model | MSO7054 | MSO7034 | MSO7024 | MSO7014 |
---|---|---|---|---|
Bandwidth | 500 MHz | 350 MHz | 200 MHz | 100 MHz |
Channels | 4 | |||
Real-time sample rate | 10 GSa/s | |||
Waveform generator | 2 channels, 25 MHz | |||
Memory depth | 100 Mpts (std), 500 Mpts (opt) | |||
Waveform acquisition rate | 600 000 wfms/s | |||
Vertical sensitivity range | 1 mV/div - 10 V/div | |||
Vertical resolution | 8 bit | |||
Input impedance | 1 MΩ ± 1%, 50 Ω ± 1% | |||
Maximum Input Voltage | CAT I 300 Vrms, 400 Vpk | |||
Automatic measurements | Vmax, Vmin, Vpp, Vtop, Vbase, Vamp, Vupper, Vmid, Vlower, Vavg, VRMS, Per. VRMS, Overshoot, Preshoot, Area, Period Area, Std Dev, Period, Frequency, Rise Time, Fall Time, +Width, -Width, +Duty, -Duty, Positive Pulse Count, Negative Pulse Count, Rising Edge Count, Falling Edge Count, Tvmax, Tvmin, +Slew Rate, -Slew Rate | |||
Interfaces | USB, LAN, GPIB (optional) | |||
Display | 10.1" (1024×600) | |||
Dimensions | 410 × 224 × 135 mm | |||
Weight |
3,9 kg |
Additional Info
Download RIGOL MSO7034 Information.
Video
You'll find even more video reviews in the Video tab. Go and check it out!
Package Contents
- Digital Oscilloscope RIGOL MSO7034 — 1 pc.
- Power cord — 1 pc.
- USB cable — 1 pc.
- RP35000A passive probes (500 MHz) — 4 pcs.
- Logic analyzer probe — 1 pc.
- Front panel cover — 1 pc.
