Digital Oscilloscope UNI-T UTD2102CEL

id: 828454
Digital Oscilloscope UNI-T UTD2102CEL
Overview
Description
Specifications
Delivery
Payment
Warranty
Discontinued
Find substitute
Overview
Rate product
4.5 kg 110, 220 V Warranty: 24 months
Dual channel oscilloscope with 100 MHz bandwith, 1 GS/s sample rate and 2 × 600 K memory length. Special Print Screen feature. Read more
Discontinued
Find substitute
Compare
Compare
Discontinued
Find substitute
Impossible to estimate the shipping cost

You may also like

Digital Oscilloscope RIGOL DS1102E
Bestseller
Add to wishlist
ID: 811977
Digital Oscilloscope RIGOL DS1102E
5 (1)
USD 449.00
Add to wishlist
Add to cart
2 channels. 100 MHz bandwidth. 1 GSa/s maximum real-time sample rate, 25 GSa/s maximum equivalent sample rate. 1 Mpts memory depth.
Availability in stock: HK
Shipping cost
ID: 811977 7.1 kg 110, 220
Description

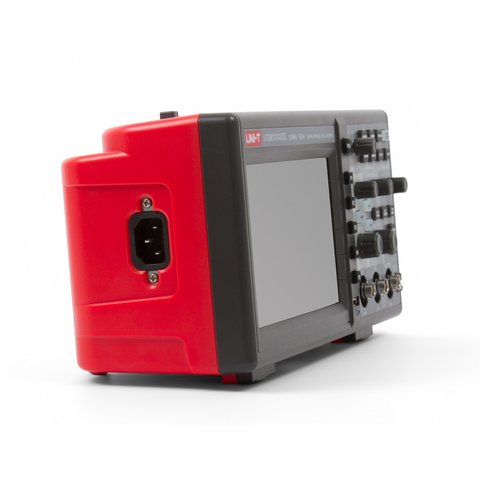

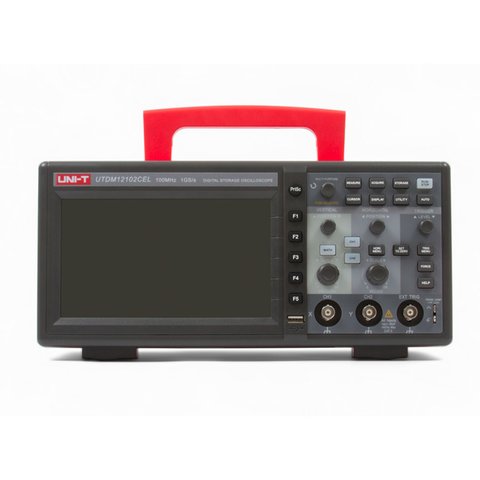

UNI-T UTD2102CEL digital oscilloscope is a dual channel oscilloscope with 100 MHz bandwith, 1 GS/s sample rate and 2 × 600 K memory length. There is USB host for external devices connection. This digital storage oscilloscope offers high productivity together with compact size.

UNI-T UTD2102CEL Digital Oscilloscope Features

  • Dual channel bandwidth 100 MHz
  • Sampling rate 1 GS/s
  • Equivalent sampling rate 50 GS/s
  • 5 mathematic functions: adding, subtraction, multiplying, division, FFT
  • Internal memory 2 × 600 k
  • Two switchable probes
  • Colour 7” LCD
  • Built-in USB port for PC connection
  • Print screen feature

UNI-T UTD2102CEL Digital Oscilloscope Technical Specifications

Bandwidth 100 MHz
Rise time ≤3.5 ns
Real-time sampling rate 1 GS/s
Equivalent sampling range 50 GS/s
Vertical sensitivity 1 mV ~ 20 V/div
Record length (max) 2 × 600 k
Scan time base 2 ns ~ 50 s/div
Trigger type Edge, Pulse, Alternate
Automatic waveform measurements 28
Frequency counter 6 digits frequency counter
Maths functions Add, Subtract, Multiply, Divide, FFT
General characteristics
LCD size 7"
Ports USB OTG
Power 100 - 240 V, 45 Hz -440 Hz, CAT II
Dimensions, mm 306 × 147 × 122
Weight, kg 2.2

Video

Youtube video

Youtube video

Youtube video

Youtube video

UNI-T UTD2102CEL Digital Oscilloscope Package

  • Digital oscilloscope UNI-T UTD2102CEL (1 pc.)
  • Probe (2 pcs.)
    • 10×
  • Power cord (1 pc.)
  • UT-D05 USB cable (1 pc.)
  • PC communication software (1 pc.)
  • User manual (1 pc.)
Specifications
Screen Size
  • 7.0" TFT display
Number of channels
  • dual-channel
Bandwidth
  • 100 MHz
Type
  • desktop
Sample Rate
  • 1 GS/s
Storage Capacity
  • 600 kB
