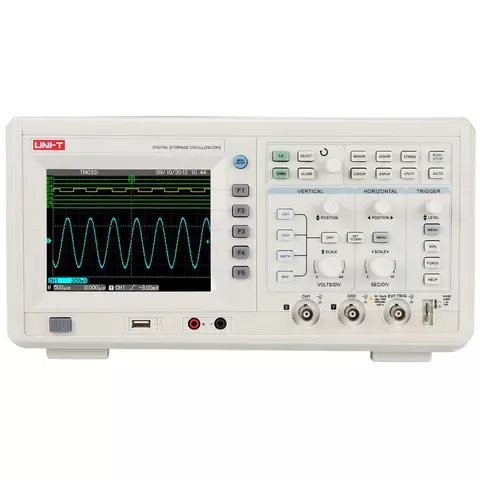

Digital Oscilloscope UNI-T UTD4302C

id: 840029
6.4 kg 110, 220 V Warranty: 24 month (s)
Dual-channel digital oscilloscope with 16 channel logic analyzer. 300 MHz bandwidth, 2 GSa/s real-time sample rate, 50 GSa/s equivalent sample rate, 1024 k memory.
Discontinued
Find substitute
Discontinued
Find substitute
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Substitution
Delivery
Payment
Warranty
Overview

UNI-T UTD4302C Digital Oscilloscope is a desktop dual-channel digital oscilloscope with 16 channel logic analyzer. 300 MHz bandwidth and 2 GSa/s real-time sample rate ensure detailed dispalying of high-frequency waveforms. UNI-T UTD4302C is characterized by a digital multimeter function. Convenient 5.7-inch color liquid-crystal display of the oscilloscope ensures bright and sharp waveform representation.

UNI-T UTD4302C Digital Oscilloscope is a good choice for production tests, R&D, design and all other applications involving testing and troubleshooting, as well as education and training.

UNI-T UTD4302C Digital Oscilloscope Features

  • Bandwidth: 300 MHz.
  • 2 analog channels.
  • Integrated 16 channel logic analyzer.
  • Digital multimeter function.
  • Real-time sample rate: 2 GSa/s.
  • Memory: 1024 k.
  • 27 auto measurements.
  • 5.7-inch color LCD.
  • Vertical sensitivity: 2 mV/div – 5 V/div.
  • Versatile trigger modes: Edge, Pulse, Video, Slope and Alternate.
  • Math functions: Add, Subtract, Multiply, Divide, Reverse and FFT.
  • Standard interface: USB Device, USB Host; Pass/Fail, LA, Multimeter, LAN and GPIB.

UNI-T UTD4302C Digital Oscilloscope Manual

Download UNI-T UTD4302C User Manual

UNI-T UTD4302C Digital Oscilloscope Technical Specifications

Bandwidth 300 MHz
Channels 2
Real time sample rate 2 GSa/s
Equivalent sample rate 50 GSa/s
Memory 1024 k
Vertical sensitivity range 2 mV/div – 5 V/div
Rise time ≤ 1.8 ns
Time base range 1 ns/div – 50 s/div
Math Add, Subtract, Multiply, Divide, Reverse and FFT
Trigger modes Edge, Pulse, Video, Slope, Alternate
General Characteristics
Display 5.7" (145 mm) color LCD (320 × 240), 64 k
Interface USB Device, USB Host; Pass/Fail, LA, Multimeter, LAN and GPIB
Power source 100 – 240 V AC RMS, 45 Hz – 440 Hz, CAT II
Weight 3.8 kg
Dimensions 330 × 165 × 165 mm

Video

Youtube video

Youtube video

Youtube video

Youtube video

UNI-T UTD4302C Digital Oscilloscope Package Contents

  • UNI-T UTD4302C Digital Oscilloscope Unit (1 pc.)
  • Oscilloscope Probes (2 pcs.)
    • 1x
    • 10x
  • Multimeter Probes (2 pcs.)
  • Logic Analyzer Probe UT-P06 (1 pc.)
  • Current-to-Voltage Convertor Modules UT-M03, UT-M04 (2 pcs.)
  • Power Cord (1 pc.)
  • User Manual & Software Installation Guide (1 pc.)
Specifications
Screen Size
  • 5.6" TFT display
Number of channels
  • dual-channel
  • with 16 channel logic analyzer
Storage Capacity
  • 1 MB
Bandwidth
  • 300 MHz
Type
  • desktop
  • mixed-signal
  • multimeter
Sample Rate
  • 2 GS/s
