Digital Pen Type Multimeter UNI-T UT118B
id: 845322
Digital Pen Type Multimeter UNI-T UT118B
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
USD 27.13
Overview
Video
Video
0.15 kg Warranty: 24 months
Digital pen type multimeter for measuring AC/DC voltage, resistance, capacitance, continuity and diode tests. Read more
USD 27.13
Buy wholesale and save
Description

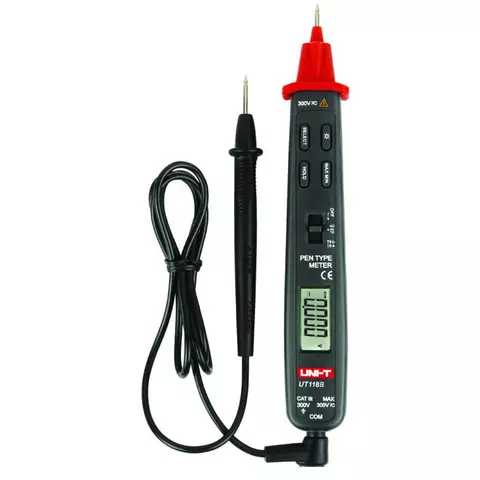

UNI-T UT118B is a digital pen-type multimeter which can measure AC/DC voltage, resistance, capacitance and can be used for continuity and diode tests.
Features
- Sleep mode.
- Low battery indication.
- Data hold function.
- Max/Min mode.
- LCD display with backlight.
- Multiple measurements:
- AC voltage.
- DC voltage.
- Resistance.
- Capacitance.
- Diode testing.
- Continuity test.
Video
You'll find even more video reviews in the Video tab. Go and check it out!
User Manual
Download UNI-T UT118B Pen Type Multimeter User Manual.
Technical Specifications
| Function | Range | Accuracy | |
|---|---|---|---|
| SCAN mode | AUTO mode | ||
| DC Voltage | 3 V / 30 V / 300 V | 3 V / 30 V / 300 V | ±(1%+ 3) |
| AC Voltage | 3 V / 30 V / 300 V | 3 V / 30 V / 300 V | ±(1%+ 4) |
| Resistance | 300 Ω/ 3 kΩ/ 30 kΩ/ 300 kΩ/ 3 MΩ | 300 Ω/ 3 kΩ/ 30 kΩ/ 300 kΩ/ 3 MΩ/ 30 MΩ | ±(1%+ 3) |
| Capacitance | 3 nF/ 30 nF/ 300 nF/ 3 μF/ 30 μF/ 300 μF | 3 nF/ 30 nF/ 300 nF/ 3 μF/ 30 μF/ 300 μF/ 3 mF | ±(3%+ 5) |
| General Characteristics | |||
| Power | 3 V Li-MnO2 Button Cell Battery | ||
| Display | LCD, 28 × 14 mm | ||
| Size | 20 × 27 × 182 mm | ||
| Weight | 90 g | ||
Package Contents
- Multimeter UNI-T UT118B (1 pc.)
- Test lead (1 pc.)
- User manual (1 pc.)
Note! Batteries are not included in the package.
Specifications
| Type |
|
| Measured Values |
|
| Additional Functions |
|
| Range Selection |
|
| Digit Capacity |
|
