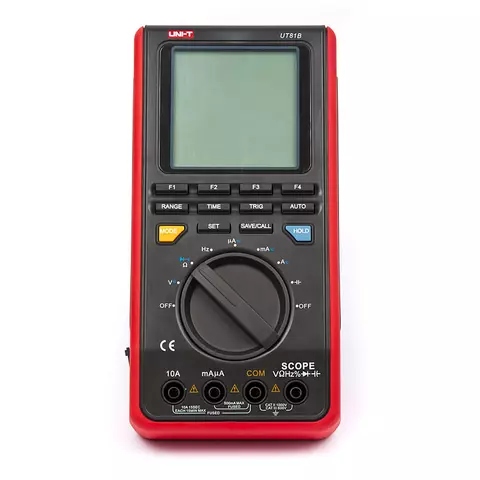

Digital Scope Multimeter UNI-T UT81B

id: 819454
Digital Scope Multimeter UNI-T UT81B
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
Discontinued
Find substitute
Overview
1.6 kg 220 V Warranty: 24 months
A digital scope multimeter for AC/DC current and voltage, resistance, capacitance, frequency, duty cycle measurements and for continuity and diode tests.
Discontinued
Find substitute
Compare
Compare
Discontinued
Find substitute
Impossible to estimate the shipping cost

You may also like

Digital Scope Multimeter UNI T UT81C
Bestseller
Add to wishlist
Digital Scope Multimeter UNI-T UT81C
USD 236.94
Add to wishlist
Add to cart
A digital scope multimeter for AC/DC current and voltage, resistance, capacitance, frequency, duty cycle measurements and for continuity and diode tests.
Bestseller
Availability in stock: HK
Shipping cost
ID: 840038 1.4 kg 220
Description

UNI-T UT81B digital scope multimeter measures AC/DC current and voltage, resistance, capacitance, frequency, duty cycle, tests continuity and diodes.

Uni-T UT81B Digital Scope Multimeter Review at ToolBoom Online Store

Features

  • Functions:
    • AC/DC current and voltage
    • resistance
    • capacitance
    • frequency
    • duty cycle
    • continuity test (with buzzer)
    • diode test
  • Trigger types: free run/normal/single shot
  • Memory: 10 screens and setups
  • Contrast and bright setup
  • Sleep mode
  • Low battery indication

Video

Youtube video

Technical Specifications

Display 3¾ (3999) digit LCD, 60 × 60 mm
DC voltage Range 400mV/4V/40V/400V/1000V
Accuracy ±(0.8%+8)
AC voltage Range 4V/40V/400V/750V
Accuracy ±(1%+15)
DC current Range 400μA /4000μA/40mA/400mA/4A/10A
Accuracy ±(1%+8)
AC current Range 400μA /4000μA/40mA/400mA/4A/10A
Accuracy ±(1,5%+8)
Resistance Range 400Ω/ 4kΩ/40kΩ/400kΩ/4MΩ/40MΩ
Accuracy ±(1%+5)
Capacitance Range 40nF/400nF/4μF/40μF/100μF
Accuracy ±(3%+8)
Frequency Range 10Hz~10MHz
Accuracy ±(0.1%+3)
Input Sensitivity 20mV/div-500V/div (1-2-5)
Bandwidth 8MHz
Vertical accuracy (5%+1)
Horizontal accuracy (0.01%+1)
Sample Rate  40MSa/s
Power 6 × 1.5V Battery (R6)
Dimensions (H × W × D), mm 200 × 100 × 48
Weight, g 498

Package Contents

  • Digital Scope multimeter UT81B
  • Test lead
  • Alligator clip
  • USB interface cable
  • CD with software
  • Power adapter
  • Batteries
  • User manual
Read more
Description

UNI-T UT81B digital scope multimeter measures AC/DC current and voltage, resistance, capacitance, frequency, duty cycle, tests continuity and diodes.

Uni-T UT81B Digital Scope Multimeter Review at ToolBoom Online Store

Features

  • Functions:
    • AC/DC current and voltage
    • resistance
    • capacitance
    • frequency
    • duty cycle
    • continuity test (with buzzer)
    • diode test
  • Trigger types: free run/normal/single shot
  • Memory: 10 screens and setups
  • Contrast and bright setup
  • Sleep mode
  • Low battery indication

Video

Youtube video

Technical Specifications

Display 3¾ (3999) digit LCD, 60 × 60 mm
DC voltage Range 400mV/4V/40V/400V/1000V
Accuracy ±(0.8%+8)
AC voltage Range 4V/40V/400V/750V
Accuracy ±(1%+15)
DC current Range 400μA /4000μA/40mA/400mA/4A/10A
Accuracy ±(1%+8)
AC current Range 400μA /4000μA/40mA/400mA/4A/10A
Accuracy ±(1,5%+8)
Resistance Range 400Ω/ 4kΩ/40kΩ/400kΩ/4MΩ/40MΩ
Accuracy ±(1%+5)
Capacitance Range 40nF/400nF/4μF/40μF/100μF
Accuracy ±(3%+8)
Frequency Range 10Hz~10MHz
Accuracy ±(0.1%+3)
Input Sensitivity 20mV/div-500V/div (1-2-5)
Bandwidth 8MHz
Vertical accuracy (5%+1)
Horizontal accuracy (0.01%+1)
Sample Rate  40MSa/s
Power 6 × 1.5V Battery (R6)
Dimensions (H × W × D), mm 200 × 100 × 48
Weight, g 498

Package Contents

  • Digital Scope multimeter UT81B
  • Test lead
  • Alligator clip
  • USB interface cable
  • CD with software
  • Power adapter
  • Batteries
  • User manual
Specifications
Screen Size
  • 3.1" LCD display
Number of channels
  • single-channel
Storage Capacity
  • 2.5 kB
Bandwidth
  • 8 MHz
Type
  • portable
  • multimeter
Sample Rate
  • 40 MS/s
