Digital Scope Multimeter UNI-T UT81C

id: 840038
Digital Scope Multimeter UNI-T UT81C
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
Discontinued

Overview

1.4 kg 220 V Warranty: 24 months
A digital scope multimeter for AC/DC current and voltage, resistance, capacitance, frequency, duty cycle measurements and for continuity and diode tests. Read more
Discontinued
Discontinued
Impossible to estimate the shipping cost

Description

UNI-T UT81C Digital Scope Multimeter is a 3999 counts and 3¾ digits adopting digital control technique with both waveform and multimeter all in one. May be used for AC/DC current and voltage, resistance, capacitance, frequency, duty cycle measurements and for continuity and diode tests.

Features

  • Measurement functions:
    • AC/DC current;
    • AC/DC voltage;
    • resistance;
    • capacitance;
    • frequency;
    • duty cycle;
    • continuity test (with buzzer);
    • diode test.
  • Memory: 10 screens and setups
  • Contrast and brightness setup.
  • Sleep mode.
  • Low battery indication.

Video

Youtube video

Technical Specifications

Multimeter Characteristics
DC voltage 0 – 1000 V
Accuracy: 0,8%
AC voltage 0 – 750 V
Accuracy: 1%
DC current 0 – 10A
AC current 0 – 10 A
Resistance 0 – 40 MΩ
Capacitance 0 – 100 μF
Frequency 0 – 10 MHz
Scope Characteristics
Horizontal
Sampling rate 80 MSa/s
Updating rate >5
Trigger types 0 – 10 A
Timebase range 50 ns/div ~ 5 s/div (1-2-5)
Timebase accuracy ±(0,1%+1pix)
Vertical
Bandwidth 16 MHz
Channel Single
Input impedance 10 MΩ
Maximum input voltage 1000 V
General Specifications
Display Digital LCD: 3999 counts on display; updates 2-3 times / second
Operating temperature 0ºC – 40ºC (32ºF–104ºF)
Storage temperature -10ºC – 50ºC (14ºF–122ºF)
Relative humidity ≤ 75%: 0ºC –40ºC
≤0%: -10ºC –50ºC
Power supply 1.5 V (R6) × 4 batteries or Power adaptor
Dimensions 200 × 100 × 48 mm
Weight ~ 498 g

Package Contents

  • UNI-T UT81C Digital Scope Multimeter Unit – 1 pc.

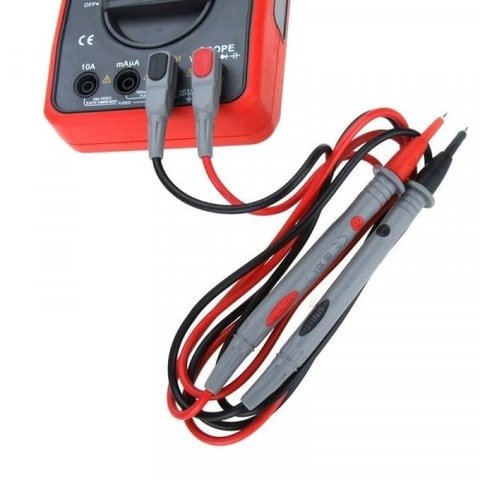

  • Test Leads – 1 pair
  • Alligator Clip – 1 pc.
  • Power Adaptor – 1 pc.
  • USB Interface Cable – 1 pc.
  • Operating Manual – 1 pc.
  • CD-ROM (Installation Guide & Computer Interface Software) – 1 pc.

Note! Batteries are not included in the package.

Specifications

Screen Size
  • 2.8" TFT display
Number of channels
  • single-channel
Storage Capacity
  • 2.5 kB
Type
  • portable
  • multimeter
Bandwidth
  • 16 MHz
Sample Rate
  • 80 MSa/s

Video

Youtube video
