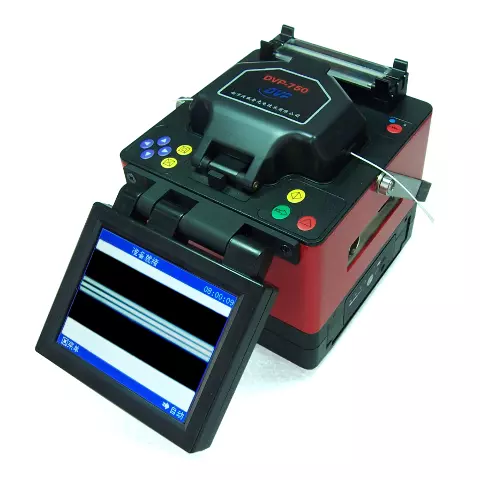

Digital Single Fiber Fusion Splicer DVP-750

id: 830166
Digital Single Fiber Fusion Splicer DVP-750
Overview
Description
Delivery
Payment
Warranty
USD 1850.00
Contact
sales team
Overview
14 kg 220 V Warranty: 12 months
Single mode and multi mode fiber optic cables and easy to use. Auto and manual splicing method. USB interface.
USD 1850.00
Contact
sales team
Compare
Compare
USD 1850.00
Contact
sales team
Impossible to estimate the shipping cost
Description

DVP-750 digital single fiber fusion splicer is designed for single mode and multi mode fiber optic cables and easy to use.

DVP-750 Digital Single Fiber Fusion Splicer Features

  • High definition LCD display with four modes and visible fiber core
  • Core or cladding alignment
  • PAS technology
  • Auto and manual splicing method
  • 8000 splice results groups storage
  • USB interface
  • Lithium battery

DVP-750 Digital Single Fiber Fusion Splicer Technical Specifications

Splice time 8 s
Applicable fibers SM, MM, DS, NZ-DS, EDF and others
Average splice loss 0.02 dB (SM), 0.01 dB (MM)., 0.04 dB (NZDS)
Return loss ≤ 60 dB
Protection sleeve length 20 mm, 40 mm, 60 mm
Tension test 2.0 N (standard)
Interfaces USB
Input voltage 176 ~ 264 V
Output voltage 12 V
Battery capacity 8 Ah
Continuous splice and heat up to 180 times
Dimensions, mm 140 × 150 × 160
Weight, kg 2.8

DVP-750 Digital Single Fiber Fusion Splicer Package

  • Fiber fusion splicer DVP-750
  • Spare electrodes (1 set)
  • AC adaptor
  • Accumulator battery
  • Charger
  • Fiber cleaver
  • Fiber stripper
  • Carrying strap
  • Cooling tray
  • AC power cord
  • Carrying case
Read more
Description

DVP-750 digital single fiber fusion splicer is designed for single mode and multi mode fiber optic cables and easy to use.

DVP-750 Digital Single Fiber Fusion Splicer Features

  • High definition LCD display with four modes and visible fiber core
  • Core or cladding alignment
  • PAS technology
  • Auto and manual splicing method
  • 8000 splice results groups storage
  • USB interface
  • Lithium battery

DVP-750 Digital Single Fiber Fusion Splicer Technical Specifications

Splice time 8 s
Applicable fibers SM, MM, DS, NZ-DS, EDF and others
Average splice loss 0.02 dB (SM), 0.01 dB (MM)., 0.04 dB (NZDS)
Return loss ≤ 60 dB
Protection sleeve length 20 mm, 40 mm, 60 mm
Tension test 2.0 N (standard)
Interfaces USB
Input voltage 176 ~ 264 V
Output voltage 12 V
Battery capacity 8 Ah
Continuous splice and heat up to 180 times
Dimensions, mm 140 × 150 × 160
Weight, kg 2.8

DVP-750 Digital Single Fiber Fusion Splicer Package

  • Fiber fusion splicer DVP-750
  • Spare electrodes (1 set)
  • AC adaptor
  • Accumulator battery
  • Charger
  • Fiber cleaver
  • Fiber stripper
  • Carrying strap
  • Cooling tray
  • AC power cord
  • Carrying case
