Overview
2 kg 110, 220 V Warranty: 12 months

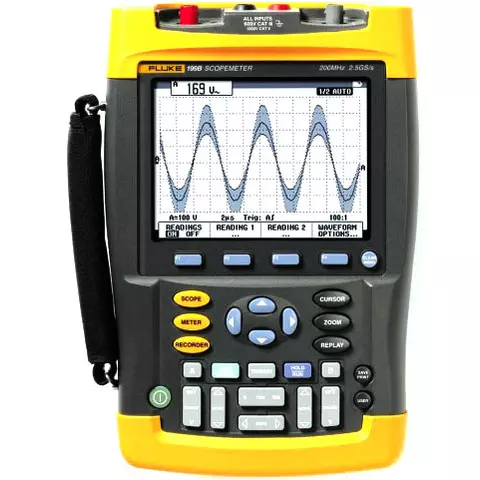

Portable digital storage oscilloscope with 200 MHz bandwidth, 2.5 GS/s real-time sample rate, and maximum memory depth of 27,500 pts per input in ScopeRecord mode.
Description
Fluke 199B digital storage oscilloscope have specifications that are typically can only be found on high-end bench type oscilloscopes. Fluke 199B offer up to 200 MHz bandwidth for capturing high-frequency signals, 2.5 GS/s real-time sampling and advanced memory and triggering functions. Fluke 199B digital storage oscilloscope is a rugged and compact measuring device.
Fluke 199B Digital Storage Oscilloscope Features
- 200 MHz bandwidth
- 2.5 GS/s real-time sampling per input
- High-resolution color display
- Connect-and-View™ automatic triggering and a full range of manual trigger modes
- Frequency Spectrum Analysis using FFT
- Fast display update rate for seeing dynamic behavior instantaneously
- Automatic capture and replay of 100 screens
- 27,500 points per input memory length
- Vpwm function for motor drive and frequency inverter applications
- Rechargeable Ni-MH battery pack
Fluke 199B Digital Storage Oscilloscope User Manual
Download Fluke 199B Digital Storage Oscilloscope User Manual
Fluke 199B Digital Storage Oscilloscope Specifications
| Technical Specifications | ||||||
|---|---|---|---|---|---|---|
| Bandwidth | 200 MHz | |||||
| Real-time sample rate | 2.5 GS/s | |||||
| Inputs and digitizers | 2 plus external / DMM input | |||||
| Independently floating isolated inputs |
| |||||
| Timebase range | 5 ns - 2 min/div | |||||
| Input sensitivity |
| |||||
| Trigger types |
| |||||
| Glitch capture | 50 ns (5 µs/div - 1 min/div) | |||||
| Scope measurements |
| |||||
| Maximum record length |
| |||||
| Memory |
| |||||
| Display | 144 mm full color LCD | |||||
| Environmental Specifications | ||||||
| Operating Temperature | 0 ºC to 50 ºC | |||||
| Storage Temperature | -20 °C to +60 °C | |||||
| Operating Altitude | 3,000 m | Safety Specifications | ||||
| Electrical Safety | 1,000V CAT II/600V CAT III (EN61010-1) | |||||
| General Specifications | ||||||
| Dimensions | 256 x 169 x 64 mm | |||||
| Weight | 2.0 kg | |||||
Fluke 199B Digital Storage Oscilloscope Package Contents
- Fluke 199B digital oscilloscope (1 pc.)
- BC190 battery charger/voltage adapter (1 pc.)
- BP190 NiMH battery pack (1 pc.)
- TL75 hard point test lead set (1 pc.)
- VPS210-G voltage probe (200 MHz, 10:1), grey (1 pc.)
- VPS210-R voltage probe (200 MHz, 10:1), red (1 pc.)
- Getting started booklet (1 pc.)
- User manual (CD-ROM) (1 pc.)
