Overview
0.18 kg Warranty: 6 months
Compact fiber optic cable tester with a Class III A laser diode. Compatible with LC 1.25 mm connector.
Contact
sales team
Compare
Compare
Contact
sales team
Impossible to estimate the shipping cost
Description

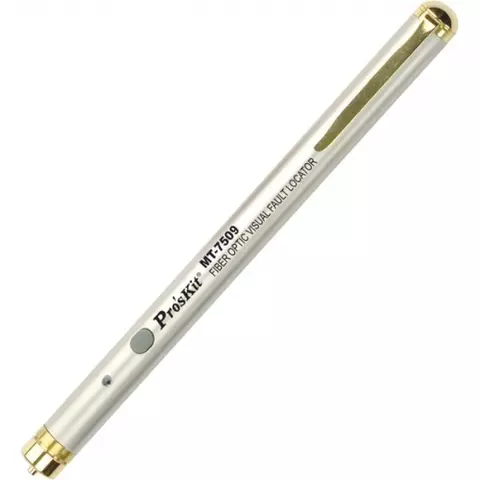

Pro'sKit MT-7509 fiber optic cable tester is a light generator (light source) based on laser diode, and it's designed for fiber optic cable troubleshooting. Pro'sKit MT-7508 fiber optic cable tester has a simple and user-friendly design, done in a robust compact copper housing.

Pro'sKit MT-7509 Fiber Optic Cable Tester Features

  • Supported connection types: LC diameter 1.25 mm
  • Operation modes: "CW" (Continuous wave output), "Pulse" and "Off'"
  • Continuous wave output mode (CW) for stable cable fault illumination
  • Pulse mode helps to detect cable damage at high levels of ambient light
  • Convenient pushbutton switch
  • Tester has a shape and size of a pen

Pro'sKit MT-7509 Fiber Optic Cable Tester User Manual

Download/open user manual for Pro'sKit MT-7509 fiber optic cable tester

Pro'sKit MT-7509 Fiber Optic Cable Tester Technical Specifications

Housing copper
Light source Class III A laser diode
Wave length 650 nm
Laser power 0,5 mW
Operating temperature 0 ~ 40 °C
Storage temperature 0 °C ~ 50 °C
Dimensions length 157 mm, diameter 13.5 mm
Battery 2 x AAA (not included)
Weight 55 g
Read more
Description

Pro'sKit MT-7509 fiber optic cable tester is a light generator (light source) based on laser diode, and it's designed for fiber optic cable troubleshooting. Pro'sKit MT-7508 fiber optic cable tester has a simple and user-friendly design, done in a robust compact copper housing.

Pro'sKit MT-7509 Fiber Optic Cable Tester Features

  • Supported connection types: LC diameter 1.25 mm
  • Operation modes: "CW" (Continuous wave output), "Pulse" and "Off'"
  • Continuous wave output mode (CW) for stable cable fault illumination
  • Pulse mode helps to detect cable damage at high levels of ambient light
  • Convenient pushbutton switch
  • Tester has a shape and size of a pen

Pro'sKit MT-7509 Fiber Optic Cable Tester User Manual

Download/open user manual for Pro'sKit MT-7509 fiber optic cable tester

Pro'sKit MT-7509 Fiber Optic Cable Tester Technical Specifications

Housing copper
Light source Class III A laser diode
Wave length 650 nm
Laser power 0,5 mW
Operating temperature 0 ~ 40 °C
Storage temperature 0 °C ~ 50 °C
Dimensions length 157 mm, diameter 13.5 mm
Battery 2 x AAA (not included)
Weight 55 g
