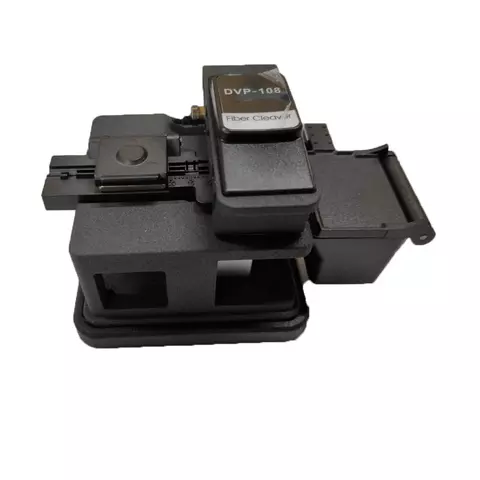

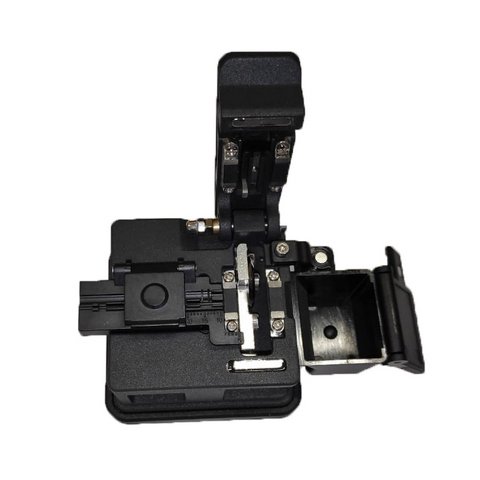

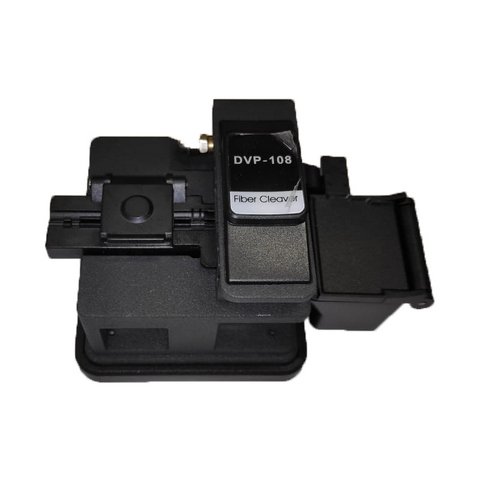

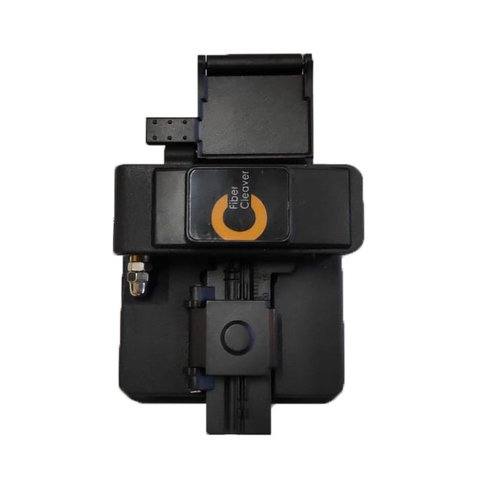

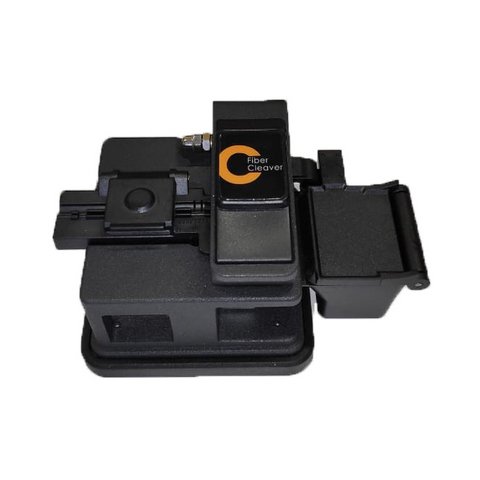

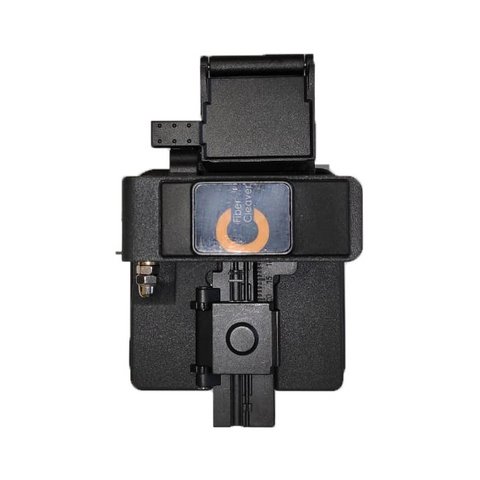

Fiber Optic Cleaver DVP-108

id: 895451
0.5 kg
Availability in stock: HK
High-precision, lightweight, and compact cleaver with a high-strength steel blade which can be fixed in 16 different positions. Blade's lifetime is up to 48,000 operations.
USD 140.00
Add to cart
USD 140.00
Add to cart
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Note! This item is shipped within 7 working days.
Overview
Delivery
Payment
Warranty
Overview

DVP-108 is a precision, compact and easy-to-use cleaver used to prepare optical fibers for splicing.

The device cleaves the fiber with a high-strength steel blade, which is also rotatable and can be fixed in 16 different positions. Blade's lifetime is up to 48 000 operations. You can replace the blade with a new one after its lifetime end.

Features

  • Applicable for cleavering single, flat or round fibers.
  • Optical fiber fixture for optical fiber, optimized for standard, flat and round fibers, applied for FTTH and PON, G.657 standard.
  • Embedded ruler to control the cleavered fiber length, 5 - 20 mm.
  • High quality cleavering by means of a special blade made of durable steel.
  • 16 different blade positions with its lifetime of 48 000 operations.
  • Possibility to replace blade with a new one after its lifetime end.
  • Scrap collector.
  • Durable and usable carrying and storage case.

Technical Specifications

Applicable fibers Single
Flat
Round (for FTTH and PON, G.657 standard)
Fiber diameter 125 μm
Fiber diameter with coating 250 μm
900 μm
Fiber cleaving length 5 ~ 20 mm
Cleaving angle 90 ± 0,8°
Blade changeable
16 positions
height adjustment
lifetime 48000 operations (1000*16*3=48000)
Dimensions 60 × 800 × 630 mm
Weight 275 g

Package Contents

  • Fiber Optic Cleaver DVP-108 — 1 pc.
  • Scrap collector — 1 pc.
  • Carrying and storage case — 1 pc.
  • Wrench for turning or replacement blade — 2 pcs.
  • Manual — 1 pc.
