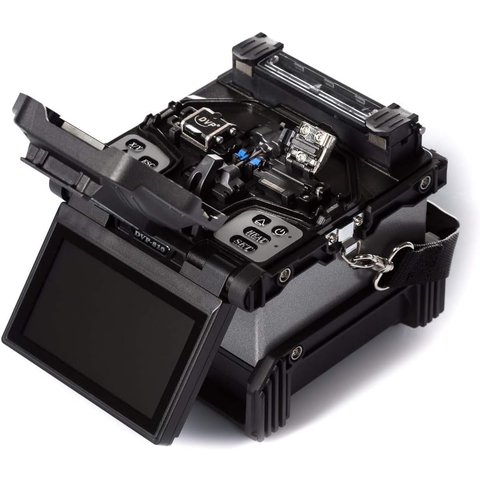

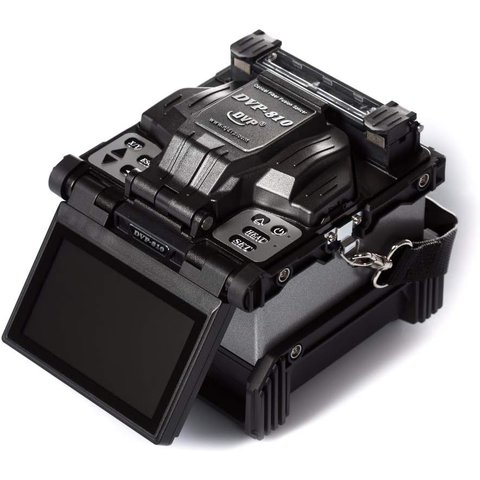

Fiber Optic Fusion Splicer DVP-810
id: 914112
9 kg
Availability in stock:
HK
Splicing time: 6 seconds, heating time: 20 seconds. Universal clamps enable working with fiber cladding ranging from 100 µm to 3 mm Read more
Note! This item is shipped within 10 working days.
The DVP-810 fusion splicer is designed to splice optical fiber cables of any type. Excellent features and long battery life make the DVP-810 indispensable, especially in challenging field conditions. The DVP-810 can be used both in urban networks and on trunk communication lines.
The DVP-810 fusion splicer uses universal clamps that enable working with fiber coatings ranging from 100 µm to 3 mm. The digital fiber alignment system ensures high performance and low losses in the spliced connection.
The DVP-810 is a new model with improved features and high splicing due thanks to the use of 6 motors.
Features
- Color LCD for menu navigation and display of the splicing process in the X and Y planes.
- Adjustment with 6 motors ensures minimal losses.
- Automatic fiber type detection.
- The heating time is 20 seconds.
- Fiber cleaver and stripper are included in the package.
- Capacious rechargeable battery with charger included.
- Automatic quality check of spliced fiber cleavage.
- Automatic calibration.
- User-friendly interface with a language selection option.
Technical Specifications
Applicable Fibers | SM (Single Mode), MM (Multi Mode), DS (Dispersion Shifted), NZDS (Non-Zero Dispersion Shifted, G.655), EDF (Erbium Doped), BIF (Bend Insensitive Fiber, G.657) |
Splice Loss | 0.02 dB (SM), 0.01 dB (MM), 0.04 dB (DS), 0.04 dB (NZDS), 0.02 dB (BIF) |
Return Loss | ≥60 dB |
Tension test | 2.0N |
Applicable Protection Sleeve | 20, 40, 60 mm |
Electrodes | compatible with Fujikura 50/60/80 and Inno View |
Fiber/Coating Diameter | 80-150 µm / 100 µm-3 mm |
Splicing Time | 8 s |
Electrode Life | 6000 |
Magnification | X, Y, X/Y, 300x |
Heating Time | 20 s |
Motors Numbers | 6 motors |
Splicing Programs | 6 pre-set programs and 74 user-programable programs |
Heating Time | 6 pre-set programs and 14 user-programable programs |
Operation Conditions | -25~+50℃ (temperature), 0~95%RH (non-condensing), 0~5000 m (altitude) |
Storage Conditions | -40~+80℃ (temperature), 0~95%RH (non-condensing) |
Power | charger: 85~260V, 50/60Hz. built-in battery: voltage 12 V, 6.5 Ah |
Battery Life | 260 splicing/heating cycles after full charge |
Dimensions/Weight | 152(L) × 142(W) × 137(H) mm / 1.98 kg (with battery) |

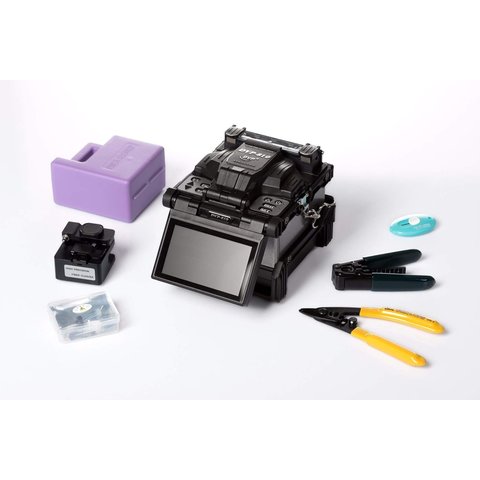

Package Contents
- Fiber Optic Fusion Splicer DVP-810 — 1 pc.
- Built-in Battery — 1 pc.
- AC Adapter/Charger— 1 pc.
- Spare Electrodes — 1 set

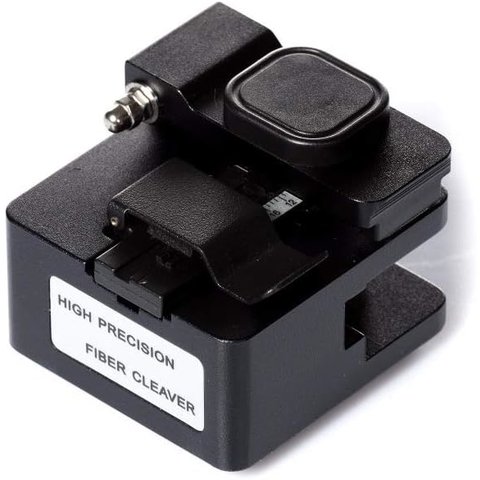

- Cleaver — 1 pc.
- Stripper — 1 pc.
- Cooling Tray — 1 pc.
- Carrying Case — 1 pc.
- User Manual — 1 pc.
