Fiber Optic Fusion Splicer TEKCN TC-400
id: 902410
Fiber Optic Fusion Splicer TEKCN TC-400
Overview
Description
Delivery
Payment
Warranty
USD 1100.00
Add to cart
Overview
Brand:
TEKCN
10 kg
Availability in stock:
HK
Core-to-core alignment fusion splicer for SMF, MMF, DSF, NZDSF, BI optical fibers. Splice time: 7 sec (SM FAST), heating time: 9 sec. Read more
Buy wholesale and save
Note! This item is shipped within 10 working days.
Description

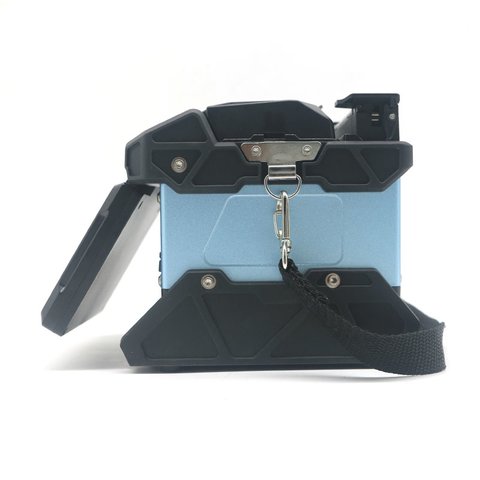

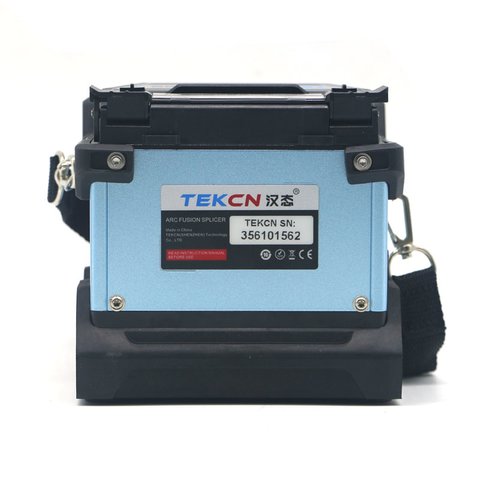

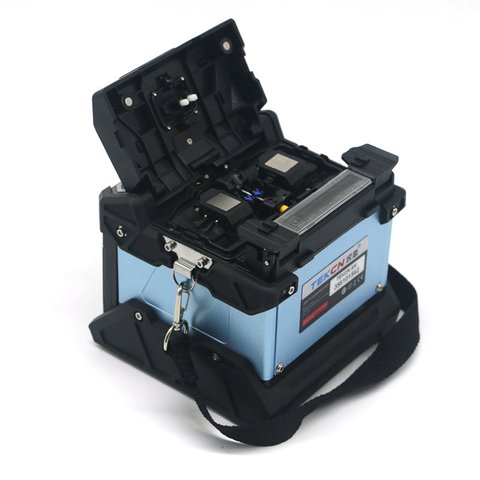

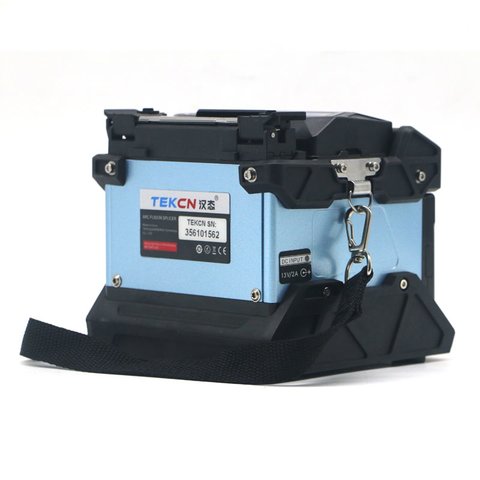

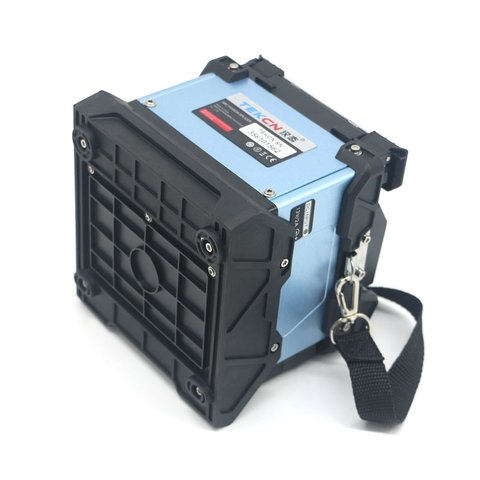

TEKCN TC-400 is a core-to-core alignment fiber optic fusion splicer featuring 7 second splicing time (SM FAST mode) and 9 seconds heating time. The device is designed for splicing SMF, MMF, DSF, NZDSF, BI single optical fibers.
The splicer is equipped with a 4.73-inch Full HD color touchscreen display and is powered by a 4000 mAh battery, which is enough for 240 splicing and heating cycles.
Features
- Splicing time 7 sec., heating time 9 sec.
- Up to X/Y 760x magnification.
- Over 240 times splicing and heating.
- Compact and lightweight.
- 4.73" full HD capacitive touchscreen.
- Waterproof, dustproof and anti-shock body, resistant to high temperatures.
- Low loss stable performance.
Technical Specifications
| Fiber alignment | core to core alignment |
| Applicable fibers | Single / SMF (G.652/657), MMF (G.651), DSF (G.653), NZDSF (G.655), BI(G.657) |
| Cladding dia. | 80 μm - 150 μm |
| Sheath dia. | 100 μm - 1000 μm |
| Cleave length | 5 mm - 16 mm with sheath clamp |
| Splice mode | total 100 modes |
| Typical splice time | 7 sec SM FAST |
| Typical splice loss | 0.02 dB (SM), 0.01 dB (MM), 0.04 dB (DSF) ,0.04 dB (NZDS) and 0.02 dB(BI) |
| Return loss | >>60 dB |
| Heating mode | max. 20 |
| Heating time | 9 sec |
| Applicable protection sleeve | 10 mm ~ 60 mm |
| Splice result storage | last 20,000 splices |
| Splice image storage | max. 800 |
| Viewing methods | 2 axis CMOS camera with 4.73" HD color capacitive touchscreen |
| Magnification | supports X / Y or both X and Y simultaneously, maximum up to 760X magnification |
| Wireless connectivity | GPS positioning and tracking system through inbuilt SIM card |
| Port | MicroSD and USB port for software upgrade / data management |
| Electrode life | typical 5000 splices |
| Battery | capacity: 4000 mAh around 240 times splicing and heating charging time: 4 hours (up to 80% electric quantity in 2 hours) |
| Power supply | AC 100-240 V, 50/60 Hz |
| Tension test | 2N |
| Operating condition | altitude: 5000 m wind: 15 m/s temperature: -10 °C to 50 °C humidity: 0 to 95% |
| Storage condition | humidity: 0 to 95% temperature: -10 °C to 80 °C (battery -10 °C to 40 °C) |
| Dimensions | 133 mm × 144 mm x 133 mm |
| Weight | 1.5 kg (1.8 kg including battery) |
Package Contents
- Fiber Optic Fusion Splicer TEKCN TC-400 — 1 pc.
- Carrying Case — 1 pc.
- Fiber Cleaver — 1 pc.
- Single Fiber Stripper — 1 pc.
- Drop Cable Stripper — 1 pc.
- Alcohol Bottle — 1 pc.
- AC Adapter — 1 pc.
- Hand Strap — 1 pc.
- Extra Electrodes — 1 set
- Air-blowing Ball — 1 pc.
- Brush — 1 pc.
- Cooling Tray — 1 pc.
- Knife — 1 pc.
- Folding Stool — 1 pc.
