FTTH Fiber Optic Tool Kit SMTE

id: 898670
2 kg
Availability in stock: HK
Contains 12 tools for fiber optic installation and maintenance works, in particular, a fiber cleaver, an optical power meter, a visual fault locator, etc.
USD 55.00
Add to cart
USD 55.00
Add to cart
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Delivery
Payment
Warranty
Overview

The SMTE FTTH Fiber Optic Tool Kit contains the most essential tools for fiber optic installation and maintenance works (a fiber cleaver, an optical power meter, a visual fault locator, a fiber optic cable stripper, etc).

Features

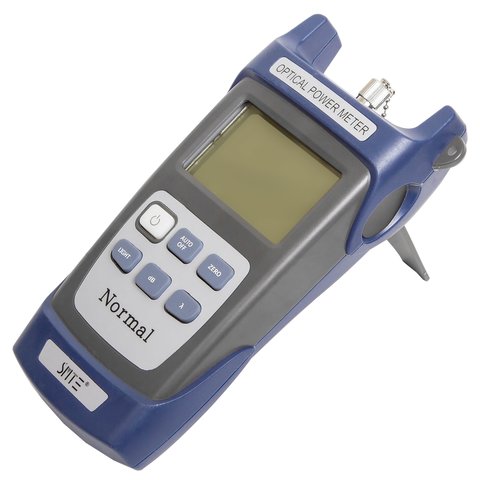

  • Optical power meter:
    • easy to use, compact, rugged and economical;
    • fast reading and settling time;
    • support FC, SC and ST connectors;
    • support six wavelengths from 800 nm to 1700 nm;
    • sunlight readable backlit display;
    • auto power off.
  • FC-6S fiber cleaver:
    • for single fiber cleaving;
    • metal material;
    • precise.
  • High quality bottle for alcohol.

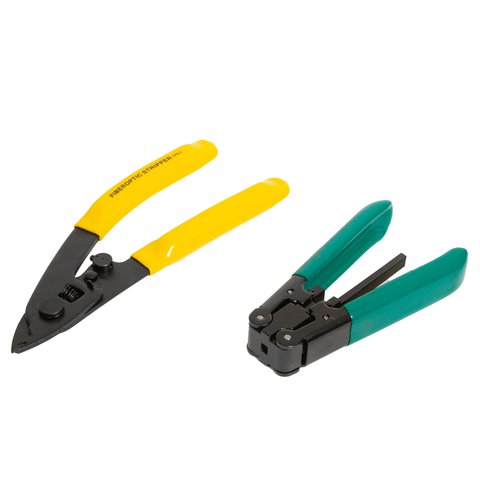

  • CFS-2 fiber optic cable stripper:
    • safe using;
    • 2 holes.

Technical Specifications

Visual Fault Locator

Output Power > 1 mW 5 km
Wavelength 650 nm
2 Hz yes
Connector universal connector
Battery AA2
Storage Temperature from -20°C to +70°C
Working Temperature from -10°C to +60°C
Laser Type LD
Weight 178 g
Dimensions 168 mm × 27 mm

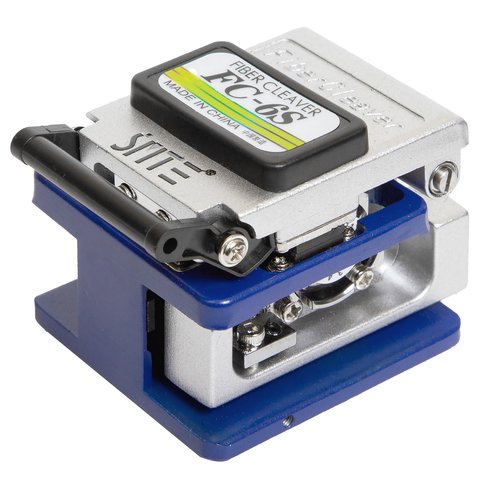

FC-6S Fiber Cleaver

Applicable Fibers Singlemode
Coating Diameter 250 um ~ 900 um
Cladding diameter 125 µm
Typical Cleave Angle within 1°
Cleave Length 9 mm - 18 mm (Single Fiber - 0.25 mm coating)
10 mm - 18 mm (Single Fiber - 0.9 mm coating)
Typical blade lifetime 36 000 operations
Dimensions 63 mm × 68 mm × 63 mm
Weight 380 g

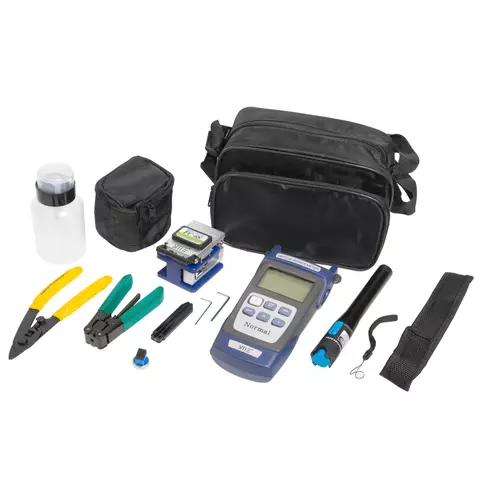

Package Contents

  • Carrying bag — 1 pc.
  • Optical power meter — 1 pc.
  • SC transfer connector for power meter — 1 pc.
  • Protected bag for locator — 1 pc.
  • Laser pointer visual fault locator — 1 pc.
  • FC-6S Fiber cleaver — 1 pc.
  • Bag for cleaver — 1 pc.
  • CFS-2 Fiber optic cable stripper — 1 pc.
  • FTTH Drop cable stripper — 1 pc.
  • Alcohol bottle — 1 pc.
  • Fixed-length fiber stripping — 1 pc.
  • Small Allen wrench — 3 pcs.
