Fusion Splicer Comway A33

id: 900376
11 kg
Availability in stock: HK
Warranty: 12 month (s)
2 in 1: a fusion splicer and a fiber endface melter. High presicion PAS alignment system. Splice time: 5 s, heating time: 12 s.
USD 1550.00
Add to cart
USD 1550.00
Add to cart
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Note! This item is shipped within 7 working days.
Overview
Delivery
Payment
Warranty
Overview

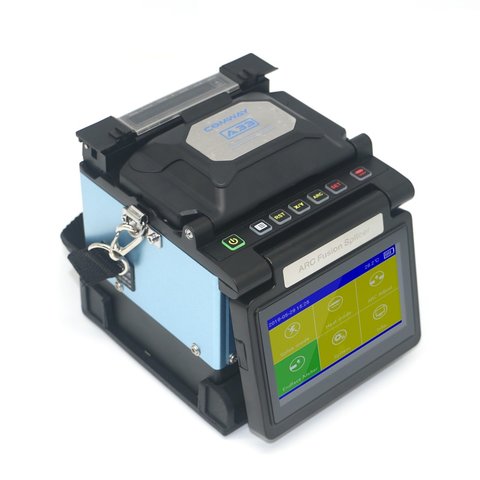

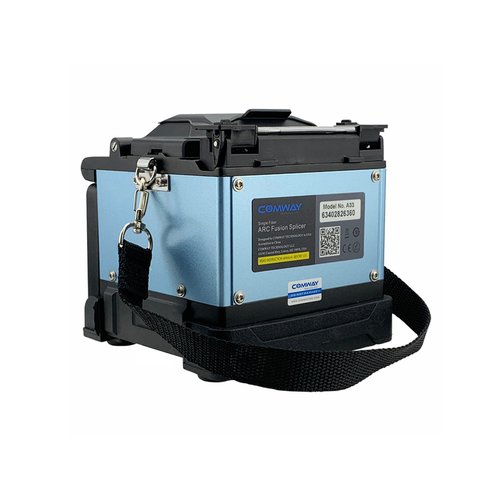

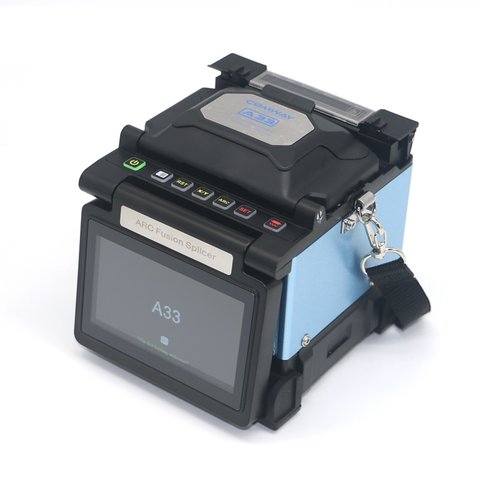

Comway A33 is a fusion splicer and a fiber endface melter, all in one. It is a powerful and stable tool with high precision PAS alignment system. The fusion splicer is equipped with a high-performance heater that provides a faster and more power-saving machining process, and a stable and durable ceramic fiber presser.

The large capacity battery and resistance to the most unfavorable environment conditions (high temperature, humidity, altitude, and wind velocity) allows using Comway A33 in the field. The high-quality tool's screen ensures clear viewing of results even under bright sunlight.

Features

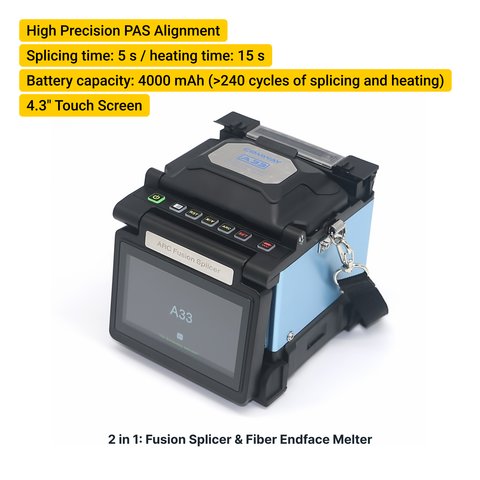

  • 2 in 1: a fusion splicer and a fiber endface melter.
  • High Precision PAS Alignment. Ultra-narrow ceramic V-Groove. Suitable for all kinds of applications.
  • Smart ARC control technology provides stable work under any conditions.
  • Splicing time: 5 seconds; heating time: 15 seconds.
  • Fast and power saving high-performance heater.
  • The high-quality screen ensures clear viewing of results even under bright sunlight.
  • Low power consumption.
  • Removable large capacity battery. Fully charged performs over 240 times splicing and heating.
  • Stable and durable ceramic fiber presser.

Technical Specifications

Fiber Alignment High Precision PAS (Profile Alignment System) Alignment
Fiber Type SM (ITU-T G.652)
MM (ITU-T G.651)
DS (ITU-T G.653)
NZ/NZDS (ITU-T G.655)
BI (ITU-T G.657)
Splice Mode Single Fiber
Fiber Diameter Cladding Diameter: 80-150 μm
Coating: 100-3000 μm
Cleave Length Cladding Diameter 250 μm: 8~16 mm
Cladding Diameter over 250 μm: 16 mm
Splicing Programs 100 max.
Splicing Time 5 s (SM Fast mode); 12 s (SM G652 mode)
Heating Programs 30 max.
Heating Time Adjustable, 15 s (with slim 40 mm and 60 mm sleeves)
Splice Protector 10~60 mm
Splice Image Capture max. 300
Splice Data Storage max. 20000
Splice Loss SM: 0.02 dB; MM: 0.01 dB; DS: 0.04 dB; NZ/NZDS: 0.04 dB; BI: 0.02 dB
Return Loss ≥60 dB
Loss Estimation Provided
Operation Conditions Temperature: -10~+50 °C
Humidity: 0-95%
Altitude: 0-5000 m
Wind Velocity: up to 15 m/s
Storage Conditions Humidity: 0-95%
Temperature: -40~+80 °C (Battery: -20~+40 °C)
Tension Test 2N
Display 4.3 inch high-light color touch screen
Fiber Magnification 300x for X or Y single axis view
500x for both X&Y dual axis view
Port High-speed USB
Electrode Life 5000 ARC discharges
Power AC adapter (AC 100-240 V); 50/60 Hz
Battery 4000 mAh capacity, more than 240 times splicing and heating

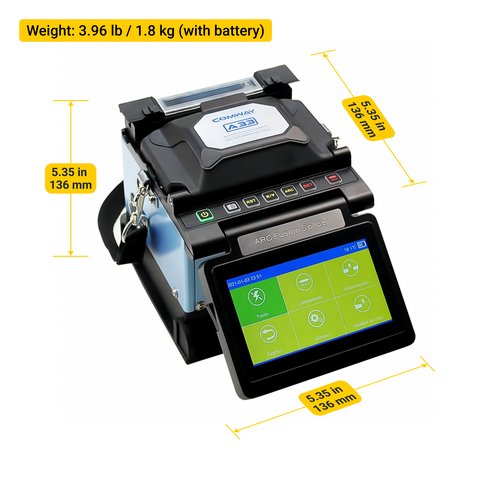

Dimensions 136 mm × 141 mm × 136 mm
Weight 1.5 kg (1.8 kg with battery)

Data Sheet

PDF  Download Comway A33 data sheet.

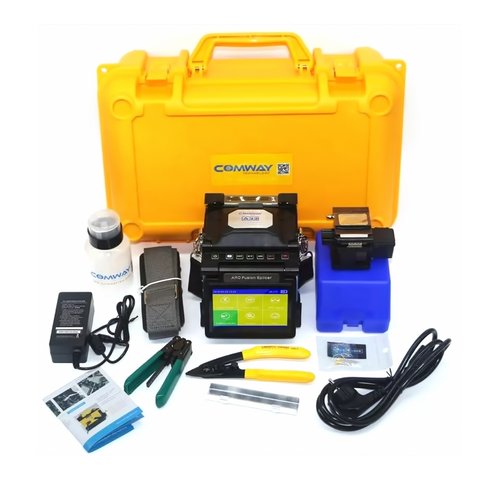

Package Contents

  • Fusion Splicer Comway A33 — 1 pc.
  • User Guide — 1 pc.
  • Stripper CFS-2 — 1 pc.
  • Drop Cable Stripper — 1 pc.
  • High-precision Cleaver C108 — 1 pc.
  • Carrying Case CP-01 — 1 pc.
  • High-capacity Battery BAT-05 — 1 pc.
  • AC Adapter ADC-05 — 1 pc.
  • Extra Electrode — 1 set
  • Cooling Tray — 1 pc.
  • AC Adapter Cable ACC-01 — 1 pc.
  • Hand Strap — 1 pc.
  • Alcohol Bottle — 1 pc.
