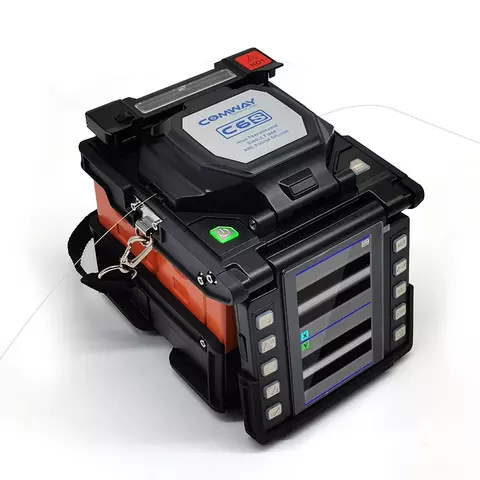

Fusion Splicer Comway C6S

id: 900373
11 kg
Availability in stock: HK
Warranty: 12 month (s)
2 in 1: a fusion splicer and a fiber endface melter. High presicion PAS alignment system. Splice time: 5 s, heating time: 8 s.
USD 2575.00
Add to cart
USD 2575.00
Add to cart
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Note! This item is shipped within 7 working days.
Overview
Delivery
Payment
Warranty
Overview

Comway C6S is a fusion splicer and a fiber endface melter, all in one. It is a powerful and stable tool with high precision PAS alignment system. The fusion splicer is equipped with a high-performance heater that provides a faster and more power-saving machining process, and a stable and durable ceramic fiber presser.

The large capacity battery and resistance to the most unfavorable environment conditions (high temperature, humidity, altitude, and wind velocity) allows using Comway C6S in the field. The high-quality tool's screen ensures clear viewing of results even under bright sunlight.

Features

  • 2 in 1: a fusion splicer and a fiber endface melter.
  • High Precision PAS Alignment. Ultra-narrow ceramic V-Groove. Suitable for all kinds of applications.
  • Smart ARC control technology provides stable work under any conditions.
  • Splicing time: 5 seconds; heating time: 8 seconds.
  • Fast and power saving high-performance heater.
  • Up to 750x fiber magnification when viewing the X or Y axes separately.
  • Stable and durable ceramic fiber presser.
  • Low power consumption.
  • The high-quality screen ensures clear viewing of results even under bright sunlight.
  • Removable large capacity battery. Fully charged performs over 350 times splicing and heating.
  • Waterproof. Dustproof. Anti-shock (1 m.)

Technical Specifications

Fiber Alignment High Precision PAS Alignment
Fiber Type SM (ITU-T G.652)
MM (ITU-T G.651)
DS (ITU-T G.653)
NZ/NZDS (ITU-T G.655)
BI (ITU-T G.657)
Splice Mode Single Fiber
Fiber Diameter Cladding Diameter: 80-150 μm
Coating: 100-3000 μm
Cleave Length Cladding Diameter 250 μm: 8~16 mm
Cladding Diameter over 250 μm: 16 mm
Splicing Programs 200 max.
Splicing Time 5 s (SM Fast mode); 8 s (SM G652 mode)
Heating Programs 30 max.
Heating Time Adjustable, 8 s (with micro sleeves), 12 s (with slim 40 mm and 60 mm sleeves)
Splice Protector 10~60 mm
Splice Image Capture max. 800
Splice Data Storage max. 20000
Splice Loss SM: 0.02 dB; MM: 0.01 dB; DS: 0.04 dB; NZ/NZDS: 0.04 dB; BI: 0.02 dB
Return Loss ≥60 dB
Loss Estimation Provided
Operation Conditions Temperature: -10~+50 °C
Humidity: 0-95%
Altitude: 0-5000 m
Wind Velocity: up to 15 m/s
Storage Conditions Humidity: 0-95%
Temperature: -40~+80 °C (Battery: -20~+40 °C)
Tension Test 1,96~2,25 N
Display 4.3 inch high-light color screen
Fiber Magnification 750x for X or Y single axis view
300x for both X&Y dual axis view
Port High-speed USB
Electrode Life 5000 arc discharges
Power AC adapter (AC 100-240 V); 50/60 Hz
Battery 5600 mAh capacity, more than 350 times splicing and heating
Dimensions 156 mm × 135 mm × 149 mm
Weight 2.0 kg (2.2 kg with battery)

Data Sheet

PDF  Download Comway C6S data sheet.

Package Contents

  • Fusion Splicer Comway C6S — 1 pc.
  • User Guide — 1 pc.
  • Stripper CS-02-B — 1 pc.
  • Drop Cable Stripper — 1 pc.
  • High-precision Cleaver C109 — 1 pc.
  • Carrying Case CP-01 — 1 pc.
  • High-capacity Battery BAT-04 — 1 pc.
  • AC Adapter AC-02 — 1 pc.
  • Extra Electrode CE-03 — 1 set
  • Cooling Tray — 1 pc.
  • USB Cable USBC-01 — 1 pc.
  • DC Charging Cable DCC-01 — 1 pc.
  • AC Adapter Cable ACC-01 — 1 pc.
  • Hand Strap — 1 pc.
  • Shoulder Strap — 1 pc.
  • Alcohol Bottle — 1 pc.
