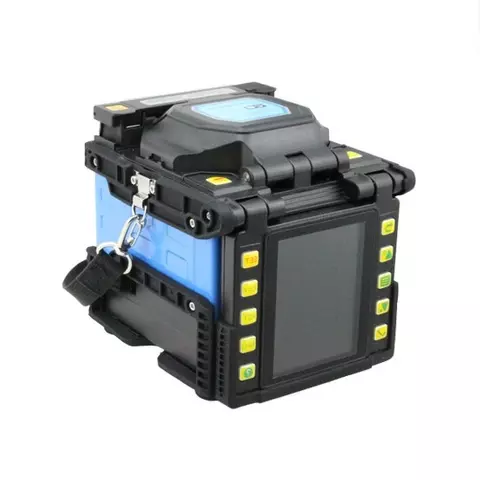

Fusion Splicer Comway C8
id: 856219
Fusion Splicer Comway C8
Overview
Description
Delivery
Payment
Warranty
USD 3480.00
Add to cart
Overview
8.9 kg 110, 220 V
Availability in stock:
HK
Warranty: 12 months Powerful tool for splicing any fiber optic cable. High precision PAS alignment system. Removable battery (over 200 times splicing and heating).
Note! This item is shipped within 10 working days.
Description
Comway C8 is a powerful tool for splicing any fiber optic cable. Comway C8 can be used in various working conditions for field fiber splicing. Due to the long battery life, the Comway C10 fusion splicer keeps operating even in the toughest environments.
Features
- Profile Alignment System (PAS).
- Fast boot technology
- 9 sec. splice time, 25 sec. heating time
- Easy to replace electrode and fibre holder
- High speed USB interface
- Dust, rain, wind and shock resistant
Technical Specifications
| Applicable fibers | SM (ITU-T G.652), MM (ITU-T G.651), DS (ITU-T G.653), NZ/NZDS (ITU-T G.655), BI (ITU-T G.657) |
| Splice mode | single fiber |
| Cladding diameter | 80 - 150 µm |
| Coating diameter | 100 - 1000 µm |
| Cleave length | 8~16 mm |
| Average splice loss | SM: 0.02 dB, MM: 0.01 dB, DS: 0.04 dB, NZ/NZDS: 0.04 dB, BI: 0.02 dB |
| Return loss | ≥ 60 dB |
| Average splice time | 6 sec. SM-SM Fast program |
| Splice protector | 10-60 mm |
| Splice data storage | max. 3000 |
| Fiber magnification |
|
| Display and camera | 2 cameras, 4.1-inch color screen |
| Electrode life | 5000 arc discharges |
| Power supply / battery | AC 100-240 V, 50/60 Hz 5200 mAh battery |
| Dimensions | 135 (W) x 149 (H) x 156 (D) mm |
| Weight | 2 kg (w/o battery) |
Package Contents
- Comway C8 fusion splicer
- BAT-02 high capacity battery
- ADC-01 AC adapter
- ACC-01 AC power cable
- DCC-01 DC adapter cable
- CP-01 carrying case
- Clooing Tray
- CC-01 high precision cleaver
- Drop cable stripper
- CS-01 cable stripper
- USBC-02 USB cable
- CE-02 spare electrode
- Quick reference guide
Read more
Description
Comway C8 is a powerful tool for splicing any fiber optic cable. Comway C8 can be used in various working conditions for field fiber splicing. Due to the long battery life, the Comway C10 fusion splicer keeps operating even in the toughest environments.
Features
- Profile Alignment System (PAS).
- Fast boot technology
- 9 sec. splice time, 25 sec. heating time
- Easy to replace electrode and fibre holder
- High speed USB interface
- Dust, rain, wind and shock resistant
Technical Specifications
| Applicable fibers | SM (ITU-T G.652), MM (ITU-T G.651), DS (ITU-T G.653), NZ/NZDS (ITU-T G.655), BI (ITU-T G.657) |
| Splice mode | single fiber |
| Cladding diameter | 80 - 150 µm |
| Coating diameter | 100 - 1000 µm |
| Cleave length | 8~16 mm |
| Average splice loss | SM: 0.02 dB, MM: 0.01 dB, DS: 0.04 dB, NZ/NZDS: 0.04 dB, BI: 0.02 dB |
| Return loss | ≥ 60 dB |
| Average splice time | 6 sec. SM-SM Fast program |
| Splice protector | 10-60 mm |
| Splice data storage | max. 3000 |
| Fiber magnification |
|
| Display and camera | 2 cameras, 4.1-inch color screen |
| Electrode life | 5000 arc discharges |
| Power supply / battery | AC 100-240 V, 50/60 Hz 5200 mAh battery |
| Dimensions | 135 (W) x 149 (H) x 156 (D) mm |
| Weight | 2 kg (w/o battery) |
Package Contents
- Comway C8 fusion splicer
- BAT-02 high capacity battery
- ADC-01 AC adapter
- ACC-01 AC power cable
- DCC-01 DC adapter cable
- CP-01 carrying case
- Clooing Tray
- CC-01 high precision cleaver
- Drop cable stripper
- CS-01 cable stripper
- USBC-02 USB cable
- CE-02 spare electrode
- Quick reference guide
