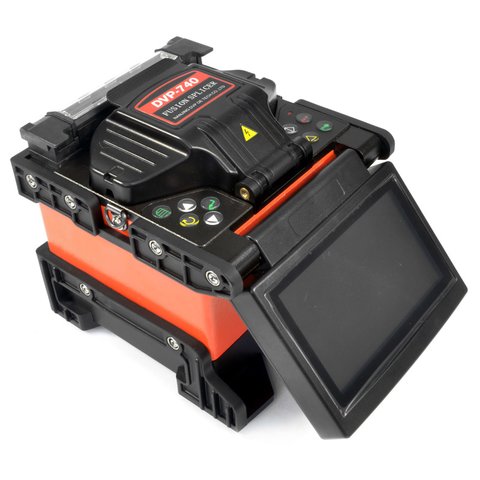

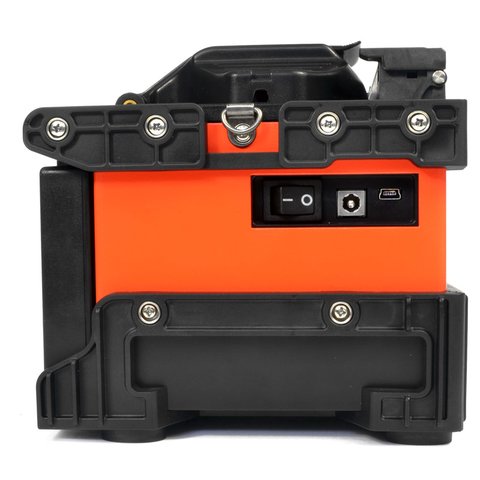

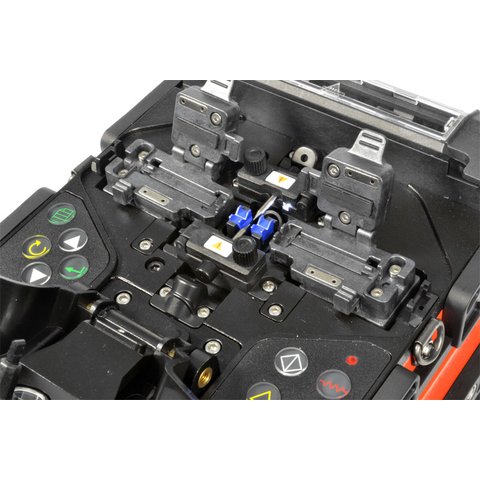

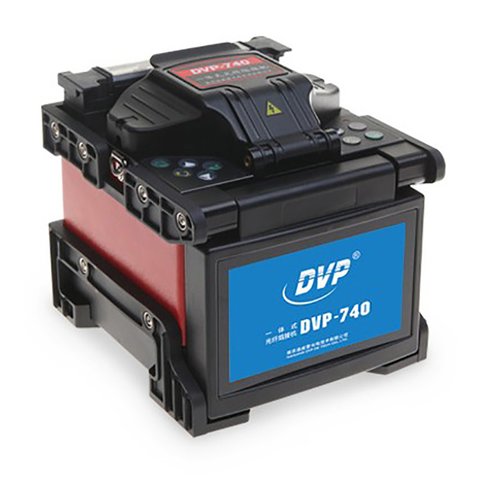

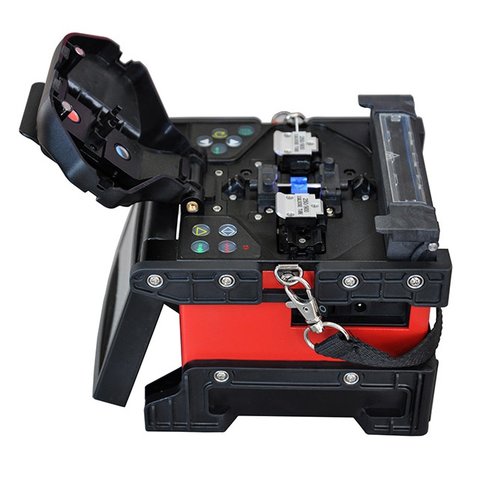

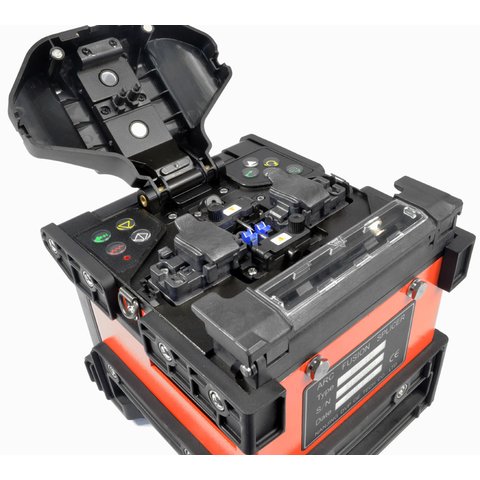

Fusion Splicer DVP-740

id: 861732
Bestseller
10 kg 110, 220 V
Availability in stock: HK
Warranty: 12 month (s)
Core-to-core alignment system fusion splicer for SM, MM, DS, NZDS(G655), EDF and other fibers. Splicing time: 8 s, heating time: 35 s.
USD 1100.00
USD 899.00
You save USD 201.00
Add to cart
USD 1100.00
USD 899.00
You save USD 201.00
Add to cart
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Video
Delivery
Payment
Warranty
Overview

DVP-740 is an automatic fusion splicer for SM, MM, DS, NZ-DS(G655), EDF and other fibers. DVP-740 is capable of ensuring high-quality splicing even in the most unfavorable environment conditions.

Features

  • 4.3-inch color display.
  • Fully automatic, semi-automatic and manual operation.
  • Can be applied for fibers, cables and SOC (splice-on connectors).
  • User-friendly menu.
  • High-quality operation under wind and rain, dust and water protection.
  • Stress-resistance.
  • Compact dimensions and light weight.
  • Menu languages: English, Spanish, German, Russian, Korean, Portuguese, French.

Video

Youtube video

Technical Specifications

Splicing time 8 s
Heating time 35 s
Alignment method IPAS core-to-core alignment (Image Pattern Analysis Alignment System)
Applicable fibers SM, MM, DS, NZ-DS (G655), EDF, Bending Loss Insensitive fiber (G657), pigtail, drop cable and connector
Fiber cleave length 8-22 mm
Average splice loss 0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS)
Return loss < 60 dB
Programs 5 groups of preset programs
75 groups of manual setting
General Specifications
Interfaces USB, ext. power
Power supply battery 12 V / 6 A
power adapter 85 ~ 260 V
Battery splice/heat cycles 120 cycles
Mechanical Tension Test 2.0 N
Display 4.3-inch color LCD
Dimensions & Weight
Dimensions (w × d × h) 142 × 122 × 138 mm
Weight 1.95 kg (with battery)

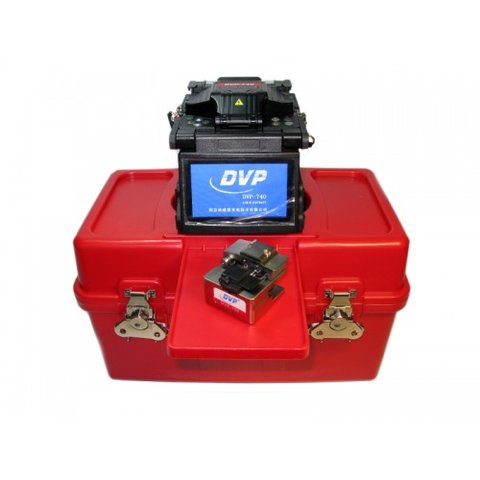

Package Contents

  • Fusion splicer unit (1 pc.)
  • Fibre cleaver (1 pc.)
  • Drop cable stripper (1 pc.)
  • Power adapter (1 pc.)
  • Spare electrodes (1 set)
  • Carrying Case (1 pc.)
  • Manual (1 pc.)
