Fusion Splicer Grandway GS-40

id: 900372
Fusion Splicer Grandway GS-40
Overview
Description
Delivery
Payment
Warranty
USD 1200.00

Overview

Fiber optic splicer features cladding alignment and 4 motors precision positioning technology. Splicing time: 9 seconds, heating time: 25 seconds. Read more
USD 1200.00
USD 1200.00
Impossible to estimate the shipping cost

Description

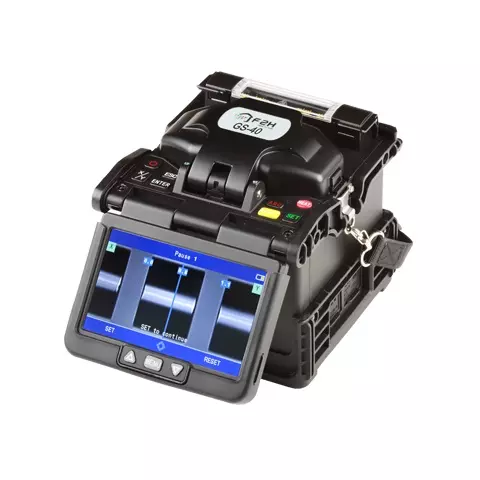

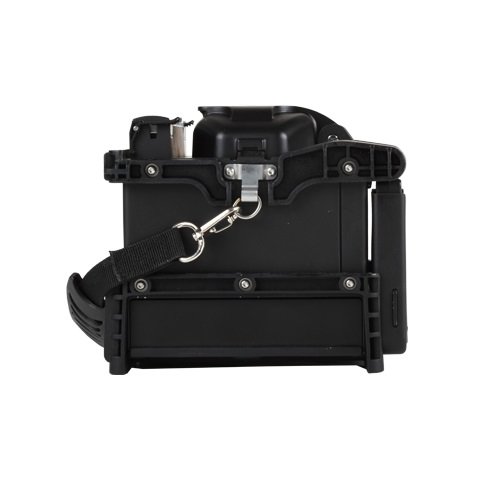

Grandway GS-40 is a fiber optic splicer that features cladding alignment and 4 motors precision positioning technology. Splicing time: 9 seconds, heating time: 25 seconds. The splicer has the function of automatic splicing, automatic arc optimization, and automatic heating. It is used for splicing SMF (G.652), MMF (G.651), DSF (G.653), NZDSF (G.655), BIF (G.657), EDF optical fibers.

Features

  • Four motors enable precise cladding alignment.
  • Splicing time: 9 seconds, heating time: 25 seconds.
  • High resolution touchscreen LCD.
  • Compact and lightweight, weighs 1.5 kg with battery.
  • Auto splice, auto arc optimization, auto heating.
  • Splicing of fibers with the coating up to 3 mm, including patch cords and drop cables.
  • Charging time: 3 hours.
  • Water, dust and shock protected.
  • Equipped with a detachable SOC holder, and a 4-in-1 multifunctional fiber holder.

Technical Specifications

Splicing method HSIPT (High-Speed Image Processing Technology), cladding alignment, 4 motors
Applicable fibers SMF (G.652), MMF (G.651), DSF (G.653), NZDSF (G.655), BIF (G.657), EDF
Cladding diameter 80-150 μm
Coating diameter 100-1000 μm
Fiber cleaving length 8-16 mm
Display 5" LCD, touch screen
Average splice loss MMF ≤0.01 dB, SMF/BIF ≤ 0.02 dB (typical)
DSF/NZDSF/EDF ≤ 0.04 dB (typical)
Splicing time ≤ 9 s (SM Fast mode)
Heating time 25 c, adjustable
Splice return loss ≥60 dB
Data storage up to 5000 splicing records and up to 100 screenshots
Tension test ≥ 2.0N
Protection sleeve 60 mm, 40 mm
Electrode life 5000 splices
Imaging system dual CCD cameras, zoom up to 200x
Power supply rechargeable lithium battery (4400 mAh), 100~240V AC adapter
Battery life ≥200 splicing and heating cycles
Data port USB
Dimensions 125 mm × 125 mm × 135 mm
Weight 1.5 kg (including battery)
Operating conditions from - 25°C to +50°C, RH up to 90%
Storage conditions from - 30°C to +70°C, RH up to 90%
Max. altitude from 0 m to 5000 m
Wind speed 15 m/s

Package Contents

  • Fusion Splicer Grandway GS-40 — 1 pc.
  • Cleaver — 1 pc.
  • Fiber Holders — 1 pair
  • AC Adapter — 1 pc.
  • AC Power Line — 1 pc.
  • Battery Pack — 1 pc.
  • Data Transfer Cable — 1 pc.
  • Carrying Case — 1 pc.
  • Cooling Tray — 1 pc.
  • CD with User Manual — 1 pc.
