Overview
10 kg Warranty: 12 months
Compact splicer equipped with 4 motors for precise core-to-core alignment. Suitable for field work. Splicing time is 7 seconds, heating time is 26 seconds Read more
Description

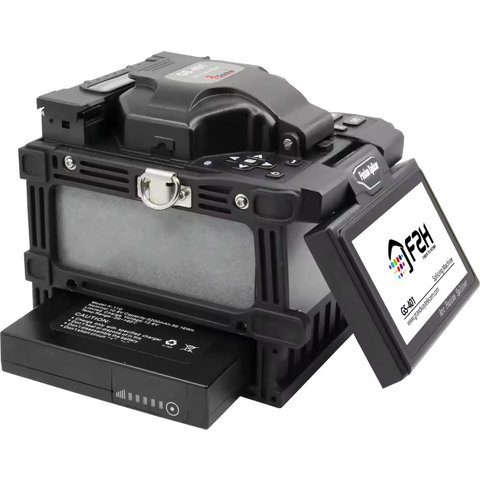

Grandway GS-401 is a compact optical fiber fusion splicer equipped with four motors for precise core-to-core alignment. It is suitable for fieldwork. Splicing time is 7 seconds, while heating time is 26 seconds. Compatible with various types of fibers.
Features
- Small and lightweight, easy to carry
- Precise core-to-core alignment using four motors
- Fully automatic operation, enabling fast and stable splicing in 7 seconds
- Applicable to bare fiber, pigtails, drop cables, SOC, etc
- Suitable for FTTx, FTTH, CATV projects, etc
- Inductive automatic heater with adjustable heating time and temperature
- Multi-in-one metal precise fiber holder suitable for 0.25/0.9/2/3 mm and drop cables
- Automatic and real-time ARC calibration
- Detachable 5200 mAh Li-battery (>250 splicing and heating cycles)
- Large opening angle for convenient splicing operations
- Sturdy, durable, and spacious carrying case
- High-resolution 4.3-inch color touch screen
Technical Specifications
| Alignment Method | 4 motors, core-to-core alignment |
| Applicable Fibers | SM (G.652), MM (G.651), DS (G.653), NZDS (G.655), BIF (G.657) |
| Cladding Diameter | 80-150 μm |
| Coating Diameter | 160-1000 μm |
| Cleaved Length | 5-16 mm (coating diameter <250 μm) 16 mm (coating diameter 250-1000 μm) |
| Typical Splice Loss | SM: 0.02 dB； MM: 0.01 dB； DS/NZDS/BIF: 0.04 dB |
| Return Loss | >60 dB |
| Splicing Program | 40 groups |
| Operation Mode | Manual / Automatic |
| Auto-heating | Available |
| Typical Splice Time | 7seconds |
| Typical Heating Time | 26 seconds for 60 mm and 40 mm shrinkable sleeves |
| Fiber Magnification | 250x (X or Y view), 125x (X and Y view) |
| Viewing Display | dual high sensitivity camera, 4.3" 480 × 280 touchscreen LCD |
| Data Storage | 4000 groups data records |
| Loss Evaluation | Available |
| Tension Test | 1.8~2.25 N |
| Interface | GUI menu interface, easy for operation |
| Battery Capacity | 5200 mAh Li-battery, 250 cycles splicing and heating |
| Power Supply | adaptor, input: AC100-240 V(50/60 Hz), output: DC11-13.5 V |
| Electrode Life | more than 4000 ARC discharges, easy to replace |
| Terminals | USB 2.0 port, for software upgrading, records exporting |
| Operating Conditions | altitude: 0-5000 m, humidity: 0-95%, temperature: -10~+50℃; wind: max 15 m/s |
| Dimensions | 149 mm (L) × 120 mm (W) × 127 mm (H) |
| Weight | 1.90 kg (including battery) |
User Manual
Download Grandway GS-401 user manual.
Package Contents
- Fusion Splicer Grandway GS-401 — 1 pc.
- Fiber Cleaver — 1 pc.
- Fiber Stripper — 1 pc.
- Spare Electrodes — 1 pc.
- Cooling Tray — 1 pc.
- Drop Cable Stripper — 1 pc.
- Carrying Box — 1 pc.
- Power Adapter — 1 pc.
- Power Plug — 1 pc.
- User Manual — 1 pc.
- Strap — 1 pc.
- Cleaning Brush — 1 pc.
