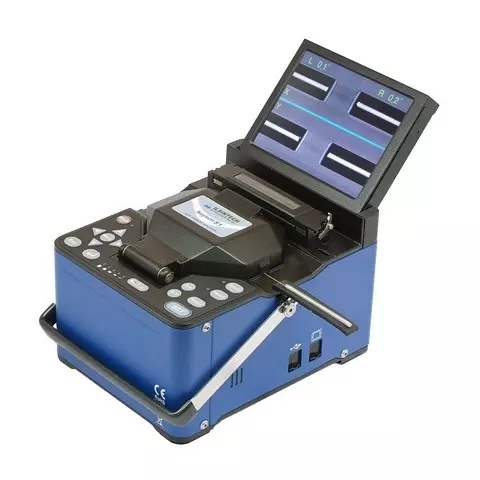

Fusion Splicer Ilsintech Keyman S1

id: 832727
Fusion Splicer Ilsintech Keyman S1
Overview
Description
Delivery
Payment
Warranty
USD 7200.00
Notify
when in stock
Overview
8 kg 110, 220 V Warranty: 12 months
Automatic fusion splicer with an advanced DCA (Direct Core-to-Core Alignment) system. Compact, lightweight, and fast.
USD 7200.00
Notify
when in stock
Add to wishlist
Compare
Compare
USD 7200.00
Notify
when in stock
Impossible to estimate the shipping cost
Description

Ilsintech Keyman S1 is an automatic fusion splicer with an advanced DCA (Direct Core-to-Core Alignment) system, designed specially for field engineers. Ilsintech Keyman S1 is one of the most smallest and fastest fusion splicers, which is available right now.

Ilsintech Keyman S1 Fusion Splicer Features

  • Large capacity lithium polymer battery
  • 5.6-inch color LCD display
  • V-shape dual tube heater module
  • Cooling tray between heater and monitor
  • Fast splice (9 seconds) and heating time (26 seconds)
  • USB 2.0 interface

Ilsintech Keyman S1 Fusion Splicer Technical Specifications

Applicable fibers
  • SM (ITU-T G.652)
  • MM (ITU-T G.651)
  • DS (ITU-T G.653)
  • NZDS (ITU-T G.655)
Coating diameter 100 ~ 1000 µm
Cladding diameter 80 ~ 150 μm
Average splice loss
  • SM: typ. 0.02 dB
  • MM: typ. 0.01 dB
  • DS: typ. 0.04 dB
  • NZDS: typ. 0.04 dB
Return loss ≤60 dB
Splice time
  • 9 seconds
Fibers cleave length 250 µm (coat): 8 ~ 16 mm, 250 µm ~ 1000 µm: 16 mm
Power source DC 14.8 V Battery (5600 mAh); 100 ~ 240 V AC Charger
Tube heating time
  • 26 seconds (S-160: 60 mm Sleeve)
Storage of splice results max. 2.000 results
Interface USB 2.0, RCA
Display 5.6-inch color LCD
Operation conditions -10 ~ +50 °C (temperature), 0 ~ 95% (humidity), 0 ~ 5000 m (altitude)
Storage environment -40 ~ +80 °C (temperature)
Dimensions (W × D × H) 150 × 190 × 120 mm
Weight 2.6 kg

Ilsintech Keyman S1 Fusion Splicer Packaging

  • Ilsintech Keyman S1 fusion splicer (1 pc.)
  • AC charger (1 pc.)
  • Sleeve loader (1 pc.)
  • Spare electrodes (1 pair)
  • Battery pack (1 pc.)
  • Carrying case (1 pc.)
  • User Manual (1 pc.)
Read more
Description

Ilsintech Keyman S1 is an automatic fusion splicer with an advanced DCA (Direct Core-to-Core Alignment) system, designed specially for field engineers. Ilsintech Keyman S1 is one of the most smallest and fastest fusion splicers, which is available right now.

Ilsintech Keyman S1 Fusion Splicer Features

  • Large capacity lithium polymer battery
  • 5.6-inch color LCD display
  • V-shape dual tube heater module
  • Cooling tray between heater and monitor
  • Fast splice (9 seconds) and heating time (26 seconds)
  • USB 2.0 interface

Ilsintech Keyman S1 Fusion Splicer Technical Specifications

Applicable fibers
  • SM (ITU-T G.652)
  • MM (ITU-T G.651)
  • DS (ITU-T G.653)
  • NZDS (ITU-T G.655)
Coating diameter 100 ~ 1000 µm
Cladding diameter 80 ~ 150 μm
Average splice loss
  • SM: typ. 0.02 dB
  • MM: typ. 0.01 dB
  • DS: typ. 0.04 dB
  • NZDS: typ. 0.04 dB
Return loss ≤60 dB
Splice time
  • 9 seconds
Fibers cleave length 250 µm (coat): 8 ~ 16 mm, 250 µm ~ 1000 µm: 16 mm
Power source DC 14.8 V Battery (5600 mAh); 100 ~ 240 V AC Charger
Tube heating time
  • 26 seconds (S-160: 60 mm Sleeve)
Storage of splice results max. 2.000 results
Interface USB 2.0, RCA
Display 5.6-inch color LCD
Operation conditions -10 ~ +50 °C (temperature), 0 ~ 95% (humidity), 0 ~ 5000 m (altitude)
Storage environment -40 ~ +80 °C (temperature)
Dimensions (W × D × H) 150 × 190 × 120 mm
Weight 2.6 kg

Ilsintech Keyman S1 Fusion Splicer Packaging

  • Ilsintech Keyman S1 fusion splicer (1 pc.)
  • AC charger (1 pc.)
  • Sleeve loader (1 pc.)
  • Spare electrodes (1 pair)
  • Battery pack (1 pc.)
  • Carrying case (1 pc.)
  • User Manual (1 pc.)
