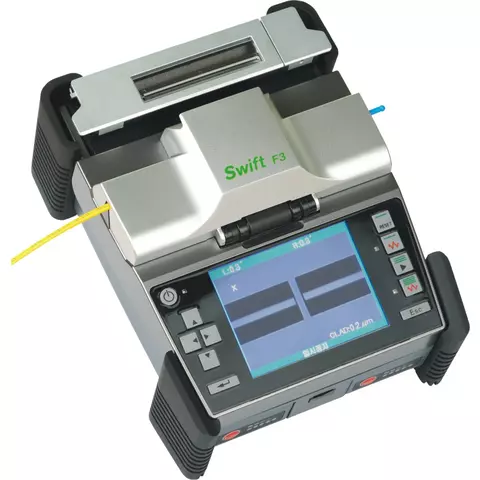

Fusion Splicer Ilsintech Swift F3

Name: Fusion Splicer Ilsintech Swift F3
Brand: Ilsintech
SKU: 837226
Availability: OutOfStock

id: 837226

Overview

Description

Delivery

Payment

Warranty

Price coming soon

Overview

Brand: Ilsintech

110, 220 V Warranty: 12 months

Fusion splicer for SM, MM, DS, NZDS fibers. Splicing time: 7 sec., heating time: 20 sec. Read more

Price coming soon

Impossible to estimate the shipping cost

Description

Ilsintech Swift F3 Fusion Splicer is a fully-functional fiber splicing complex, comprising all the needed tools for working with optic fiber in one device.

Ilsintech Swift F3 Fusion Splicer Features

Fixed V-groove alignment.
SM, MM, DS, NZDS fiber splicing.
Splicing time 7 sec for fusion splicing, 20 sec for sleeves heating.
Efficient two-heater system.
USB, RCA interfaces.
Resistance to shock, rain, dust.
User comfort.

Ilsintech Swift F3 Fusion Splicer Technical Specifications

Splicing
Alignment	Fixed V-Groove (Clad to Clad)
Applicable Fibers	SM, MM, DS, NZDS
Cladding Diameter	125 µm
Coating Diameter	250 µm – 900 µm
Fiber Cleave Length	26 – 40 mm
Typical Average Splice Loss	SM: 0.03 dB, MM: 0.02 dB, DS: 0.06 dB, NZDS: 0.06 dB
Splicing time (typical)	7 sec - fusion splicing
Heating time (typical)	20 sec for sleeves heating (0.9 mm fiber), 70 sec (3.0 mm fiber)
Internal Memory	up to 2000 results
General Characteristics
Tension test	1.96 N
Operation Conditions	from –10 to +50°C, at RH up to 95%
Storage Conditions	from –40 to +80°C, at RH up to 95%
Interface	USB, RCA, ext. power
Power Supply	DC lithium-polymer battery / power adapter ~100-240 V AC
Battery	1400 mA/h, 2 pcs.
Battery splice/heat cycles	140 cycles (for 0.9 mm fiber)
Dimensions & Weight
W	140 mm
L	179 mm
H	87 mm
Weight	1.2 kg (with battery)
